3.0 Hardware Features
3.3.2 pMDDL Development Board Connectors & Indicators

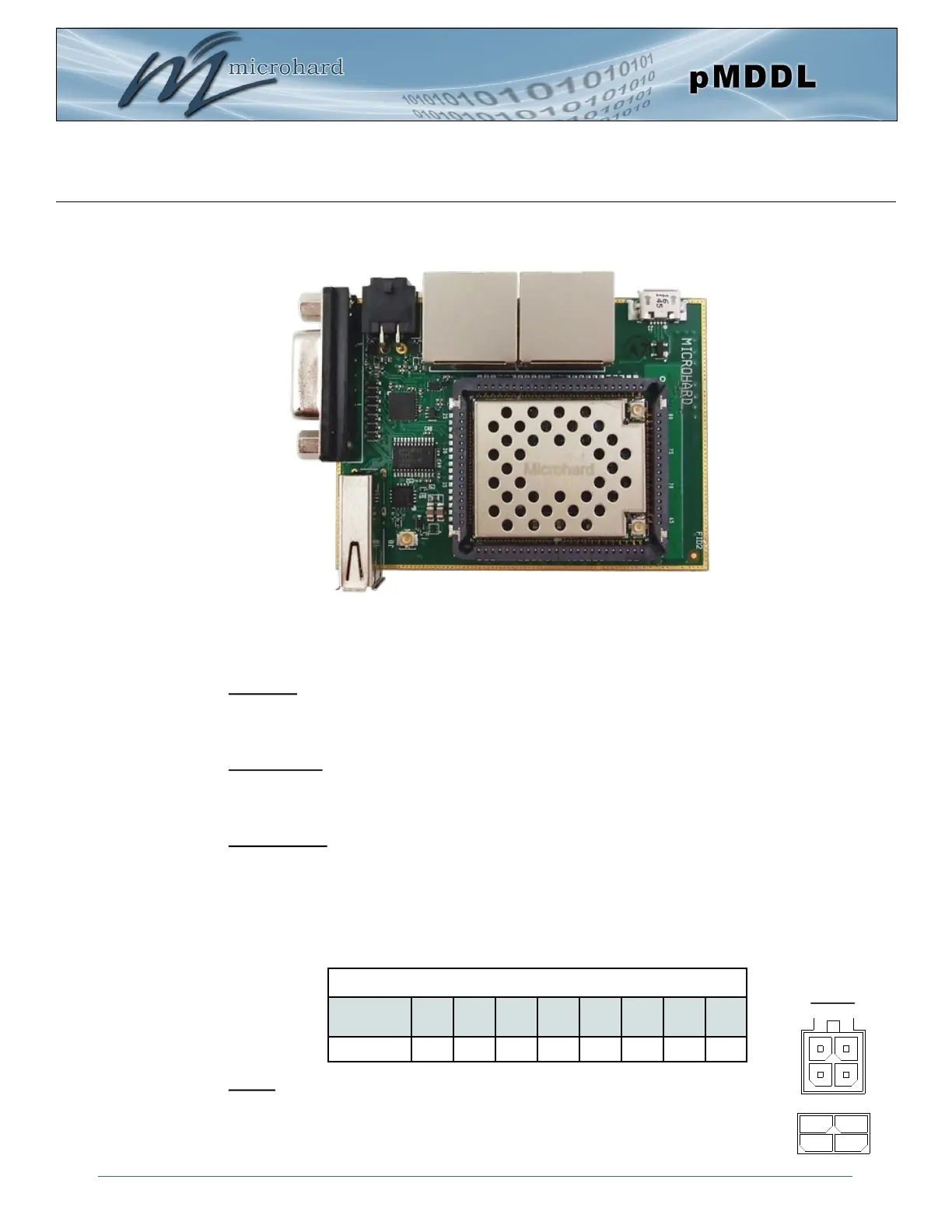

Figure 3-4: pMDDL Development Board
Antennas:
The pMDDL OEM module uses a UFL connectors, Ensure proper orientation as seen above to prevent
damage to the pMDDL module and to the development board. ANT1 and ANT2 are marked on the module.
Ethernet LAN:
The Ethernet LAN port is a standard RJ45 port to connect local network devices. The default IP address for
this port is 192.168.168.1.
Ethernet WAN:
The Ethernet WAN port is a standard RJ45 Port that can be used as a separate WAN port for Router
functions, or can be bridged (via software) to the LAN as a additional switch port for local devices.
The pMDDL development board can be powered using Passive PoE from 12—30 VDC Maximum on the
WAN port using a PoE injector that meets the following requirements:
Power:
The pMDDL development board can powered using an input voltage in the 9-30 VDC
range.
Ethernet RJ45 Connector Pin Number
Source
Voltage
1 2 3 4 5 6 7 8
12 - 30 Vdc Data Data Data DC+ DC+ Data DC- DC-
Table 3-2: Ethernet (WAN) PoE Connections
