3.0 Hardware Features
3.3 pMDDL Development Board
The pMDDL Development board provides a platform in which to test and evaluate the operation of the
pMDDL without the need to design a custom interface PCB right from the start. The pMDDL includes a
socket to insert the pMDDL and provides standard interfaces/indicators for:
- Ethernet (RJ45 x2)
- RS232 Serial Port
- USB Port (Type A)
- Power (9-30 VDC)
- CPU Status LED
- Tx/Rx LED’s
- RSSI (x3) LED’s
- Config Button (Reset/Recovery Operations)

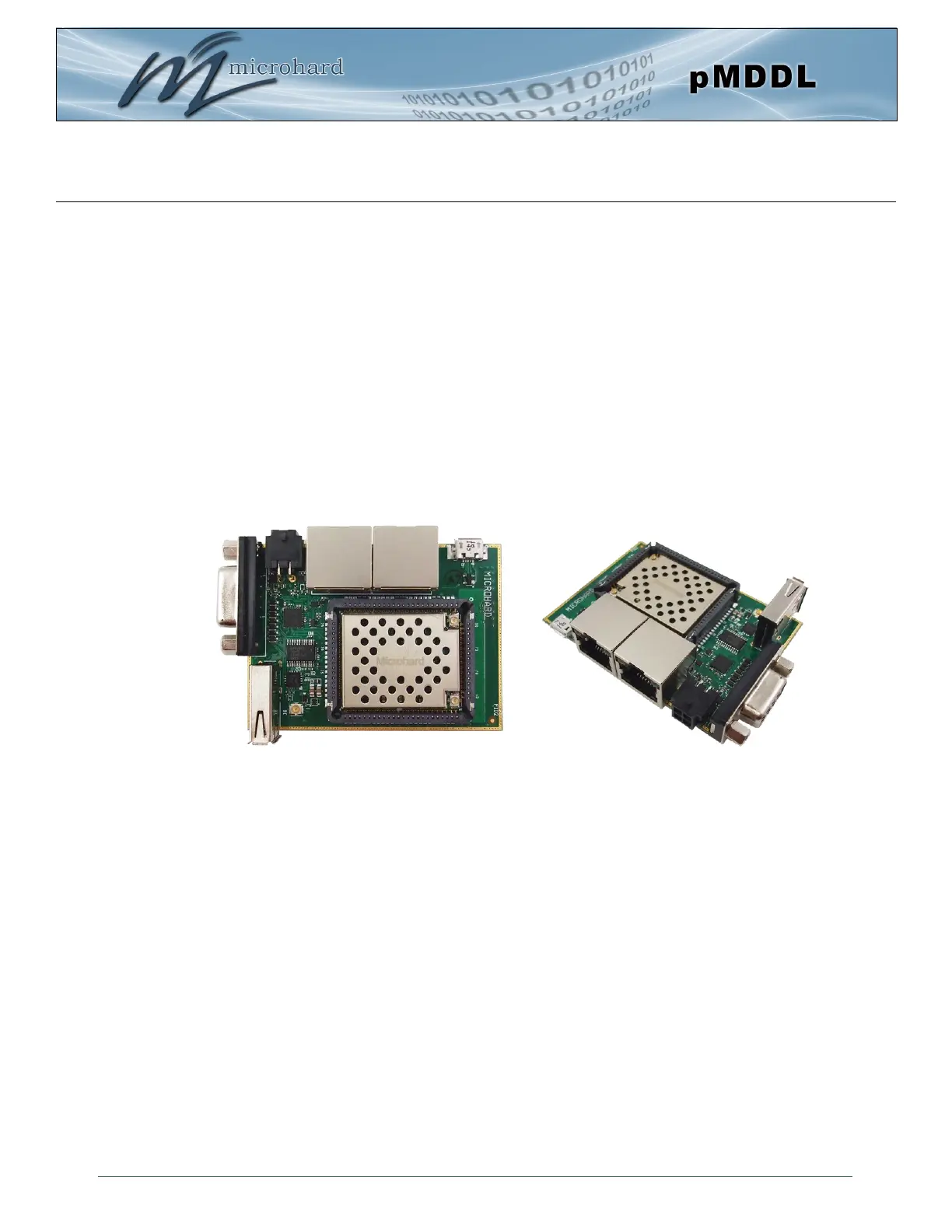

Image 3-3: pMDDL Development Board
