Ethernet RJ45 Connector Pin Number
Source
Voltage
1 2 3 4 5 6 7 8
12 - 30 Vdc Data Data Data DC+ DC+ Data DC- DC-
Table 3-2: Ethernet (WAN) PoE Connections
Power
3.0 Hardware Features
Ethernet LAN:
The Ethernet LAN port is a standard RJ45 port to connect local network devices. The default IP address for
this port is 192.168.168.1.
Ethernet WAN:
The Ethernet WAN port is a standard RJ45 Port that can be used as a separate WAN port for Router
functions, or can be bridged (via software) to the LAN as a additional switch port for local devices.
The pMDDL-ENC can be powered using Passive PoE from 12—30 VDC Maximum on the WAN port
using a PoE injector that meets the following requirements:
Power:
The pMDDL-ENC can powered using an input voltage in the 7-30 VDC range.
Console:
The console port is a Micro-AB USB port that uses a generic FTDI driver as a
USB/Serial Interface. When a cable is connected to this port from a PC the
FTDI driver should automatically be installed. (Future Development - Coming
Soon)

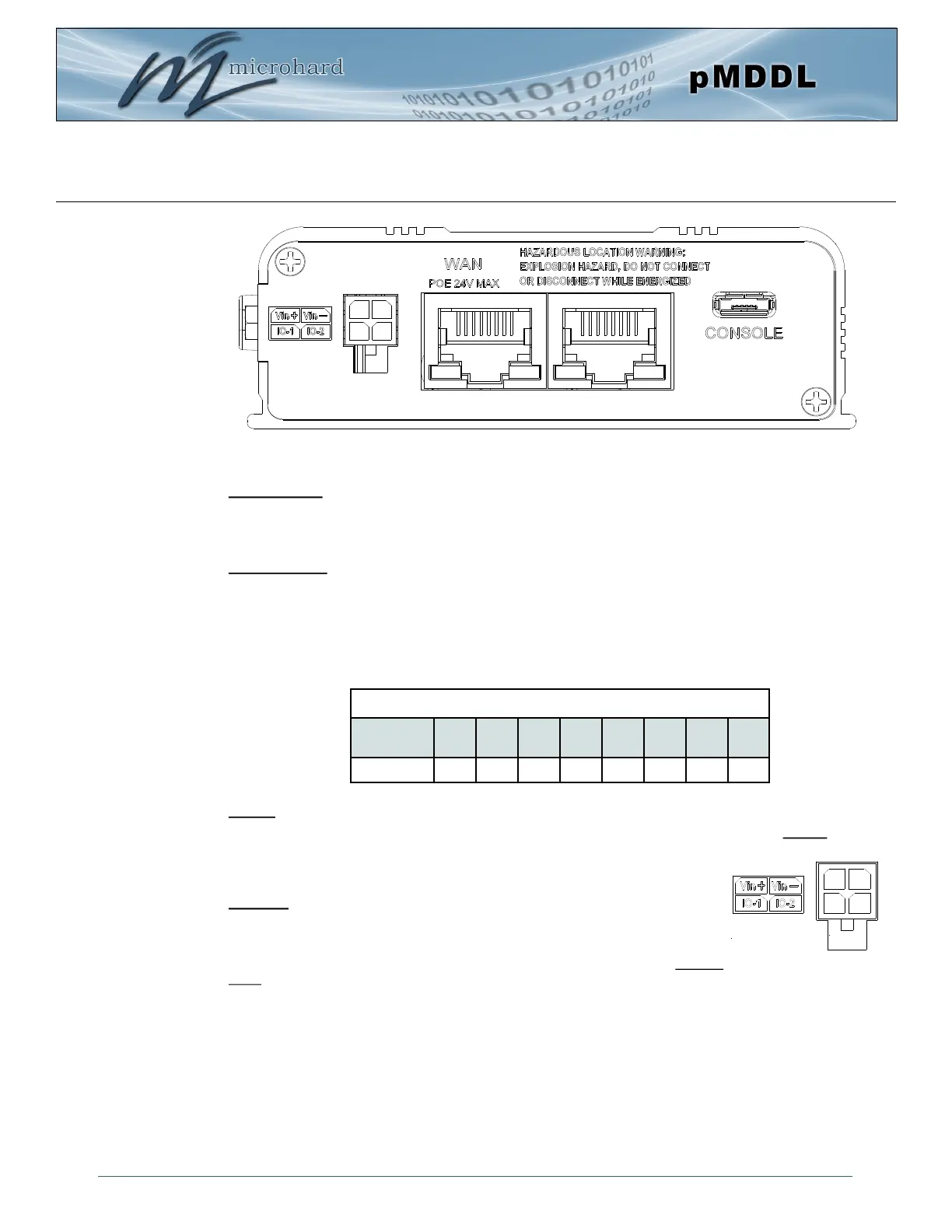

Figure 3-2: pMDDL-ENC Back View
