Section 3: Two-Dimensional Multi-Row Codes
The family includes:
• PDF 417
• Micro PDF 417
• GS1 Databar CC-A
• GS1 Databar CC-B
• GS1 Databar CC-C
Verify a PDF 417 or Micro PDF 417 Code

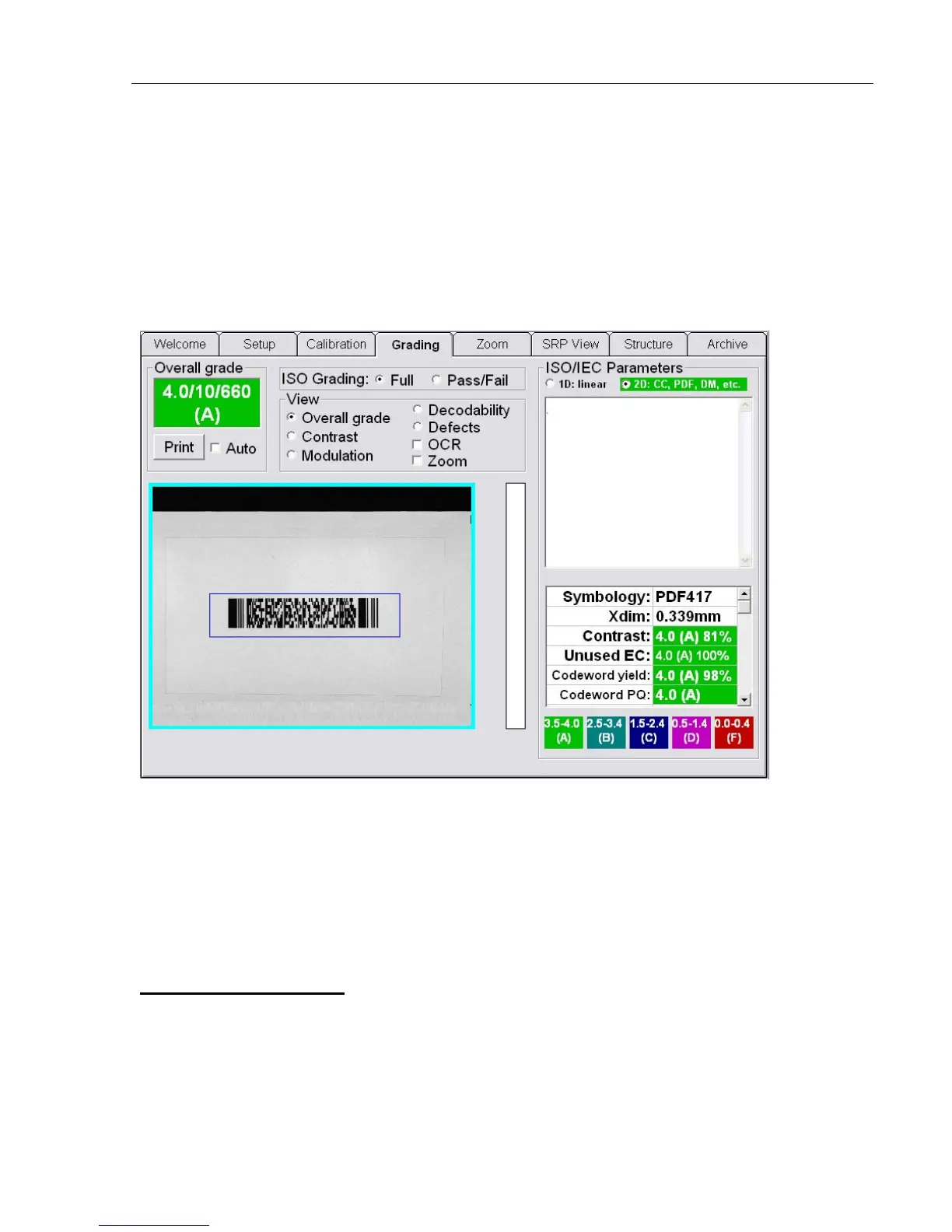

Place the symbol into the field of view squarely and with the right and left alignment bars positioned straight
up and down (see above image). The symbol can have no more than a 4-degree tilt. While placing the cursor
on the video image, hold down the mouse and draw a box around the barcode image; the box appears as a
blue box.
The system now reports its grade. There may be a few seconds delay in displaying the verification results
depending on how much data is encoded within the symbol.
PDF417 Parameters
There are a total of eight reported parameters. Use the scroll bar to view all of these parameters.
