Midea MGBT-F30W/RN1 User Manual

MCAC-ATSM-2014-09 Aqua tempo power series tropical air-cooled scroll chiller 50Hz
127

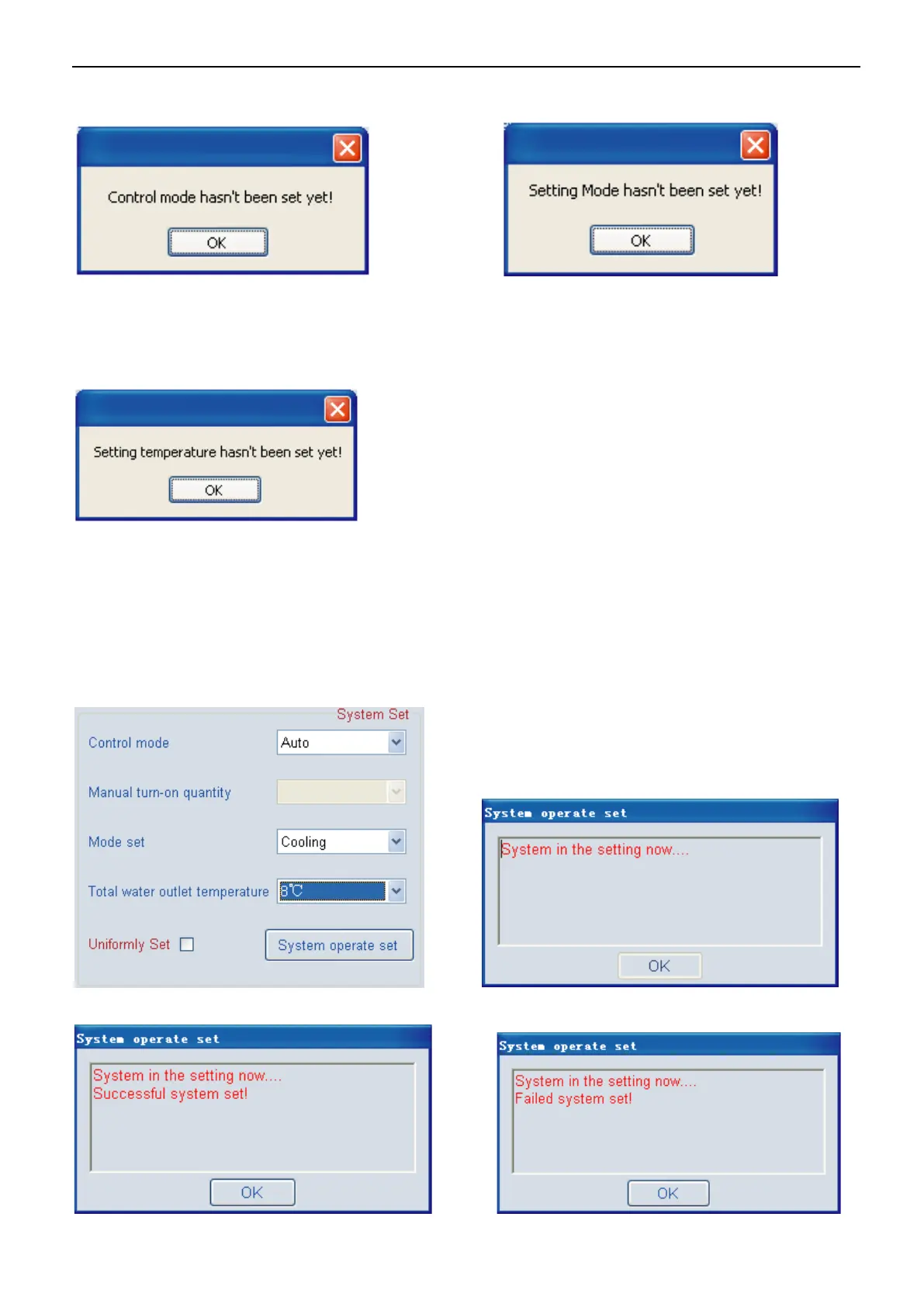

Click the “System operate set” in the conditioner of without Control Mode has been selected, a message box
as Fig. 4-85 would show.
Click the “System operate set” in the conditioner of without Mode set has been selected, a message box as
Fig. 4-86 would show.
Click the “System operate set” in the conditioner of without Setting temp. has been selected, a message box
as Fig. 4-87 would show.
2）Set wired controller separately: Do not tick the “Uniformly Set”. Select the wanted set wired controller
(refrigeration system) from the wired controller address column and select the corresponding set parameters,
which include control Mode (Auto), Mode set (cooling/heating/Water pump/turn-off), Setting temp. (Cooling:
5~17℃; Heating:45~50℃). After set up all above parameters (See Fig. 4-88), please click the “System
operate set”, system begins to set up. A message box (See Fig. 4-89) will pop up. Once successful setting, a
message box as Fig. 4-90 will display to inform you Successful System Set, whereas, Failed System set as
Fig. 4-91 will display.
Fig.4-85
Fig.4-86
Fig.4-87
Fig.4-88
Fig.4-89
Fig.4-90
Fig.4-91

Midea MGBT-F30W/RN1 Specifications

General

Brand	Midea
Model	MGBT-F30W/RN1
Category	Chiller
Language	English
