Midea MGBT-F30W/RN1 User Manual

Aqua tempo power series tropical air-cooled scroll chiller 50Hz MCAC-ATSM-2014-09
66
No.
Part Name
Qty
No.
Part Name
Qty
1
The top beam
2
35.1
Four-way valve set
1
2
The condenser seal fittings. II
2
35.3
Meter connector
2
3
Iron nets fixed plate. II
2
36
Fixed plate
4
4
Protect net around
4
37
Pipe fixing clamp
6
5
pole
4
38
Welding parts water tray
2
6
Trough fixation plate
4
39
Condenser seal plate ass'y
2
7
Left right panel by. II
1
40
Condenser parts of unit A
2
8
Iron nets fixed board I
2
40.1
Condenser ass'y of unit A
1
9
Protect network and
4
40.2
Flute-shaped tube ass'y of unit A
1
10
In the frame beams
2
40.3
Distributor ass'y of unit A condenser
1
11
Cover
1
41
Condenser fixed plate ass'y of unit A
2

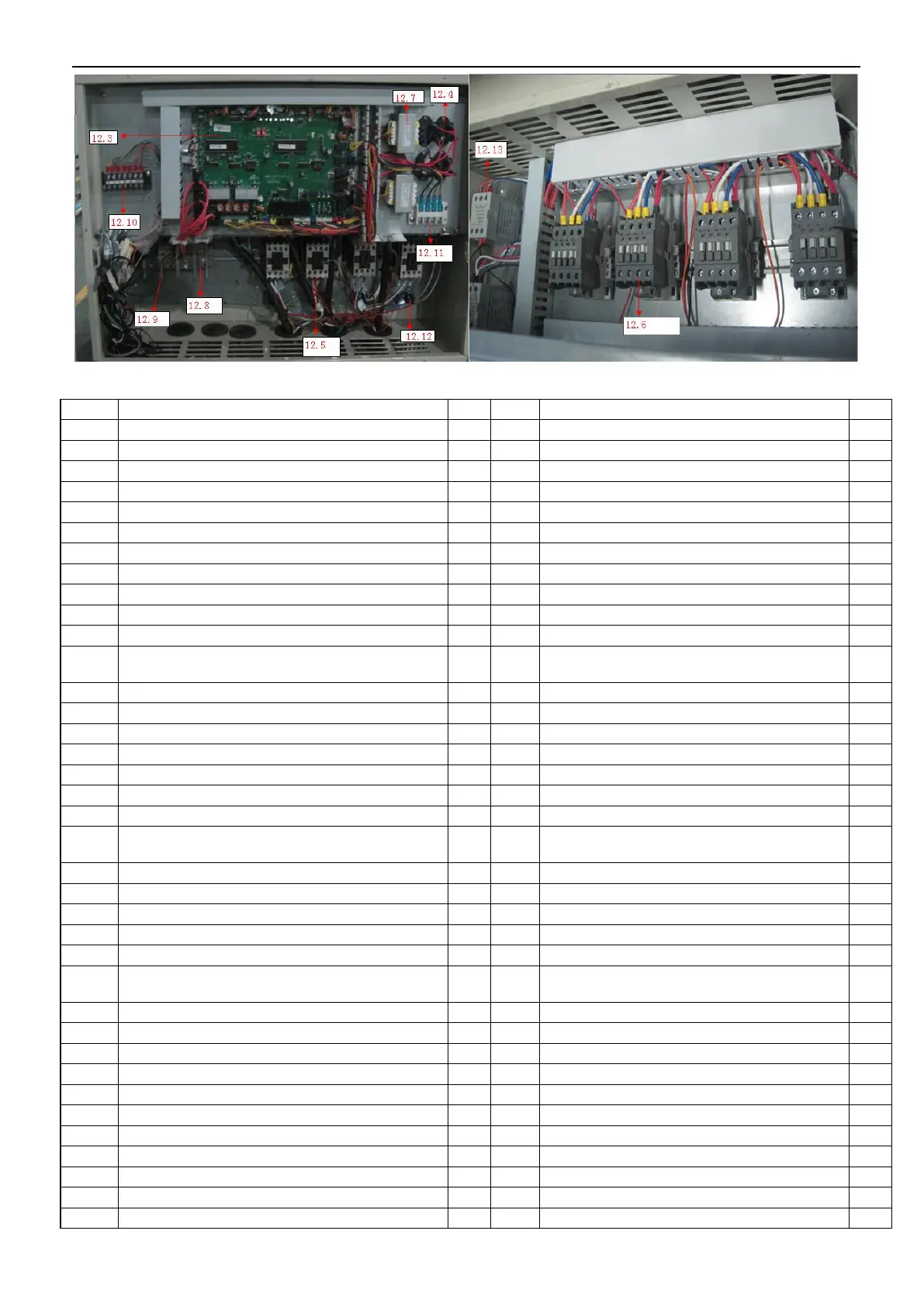

12
electronic control box assembly of Air-cooled
module
1
42
Motor bracket bonding parts
8
12.1
Welded parts of electric control box
1
43
Three-phase asynchronous motor
4
12.2
Outdoor control board ass'y
1
44
Axial fan
4
12.3
Relay
4
45
Condenser fixed plate ass'y of unit B
2
12.4
AC contactor
4
46
Unit B condenser parts
2
12.5
AC contactor
4
46.1
Condenser ass'y of unit B
1
12.6
Transformer
2
46.2
B-flute-shaped tube assemblies
1
12.7
7-terminal Block
1
46.3
Distributor ass'y of unit B condenser
1
12.8
Wire joint,4p
1
47
Evaporator connection pipe ass'y of unit
A1 of four-way valve
1
12.9
Wire joint
1
47.1
Pressure controller
1
12.10
Terminal block
6
48
Four-way valve ass'y of unit B2
1
12.11
Electrical mounting plate II
1
48.1
Four-way valve
1
13
Cover plate of electric control box
1
48.2
Pressure controller
1
14
Cover
1
48.3
Meter connector
2
15
Cover
1
49
Evaporator connection pipe ass'y of unit
B2 of four-way valve
1
16
Cover
1
49.1
Pressure controller
1
17
Welded parts of base
1
50
Suction pipe ass'y
1
18
Compressor
4
50.1
Pressure controller
1
19
Storage tank bottom II weld installation
1
51
Suction pipe ass'y
3
20
Compressor installed base II weld
1
51.1
Pressure controller
1
21
Reinforcement board
4
52
Four-way valve ass'y of unit A2
1
22
Triangle reinforcement ass'y
8
52.1
Four-way valve
1
23
Piping support-unit
2
52.2
Pressure controller
1
24
Vapor-liquid separator
4
52.3
Pressure controller
1
25
Shell and tube evaporator
1
52.4
Meter connector
2
26
Storage tank bottom I weld parts installation
1
53
I sealed connector condenser
2
