MCAC-VTSM-2015-09 R410A All DC Inverter V4+S Series 60Hz
Selection Procedure 15
data means outdoor unit is lower.

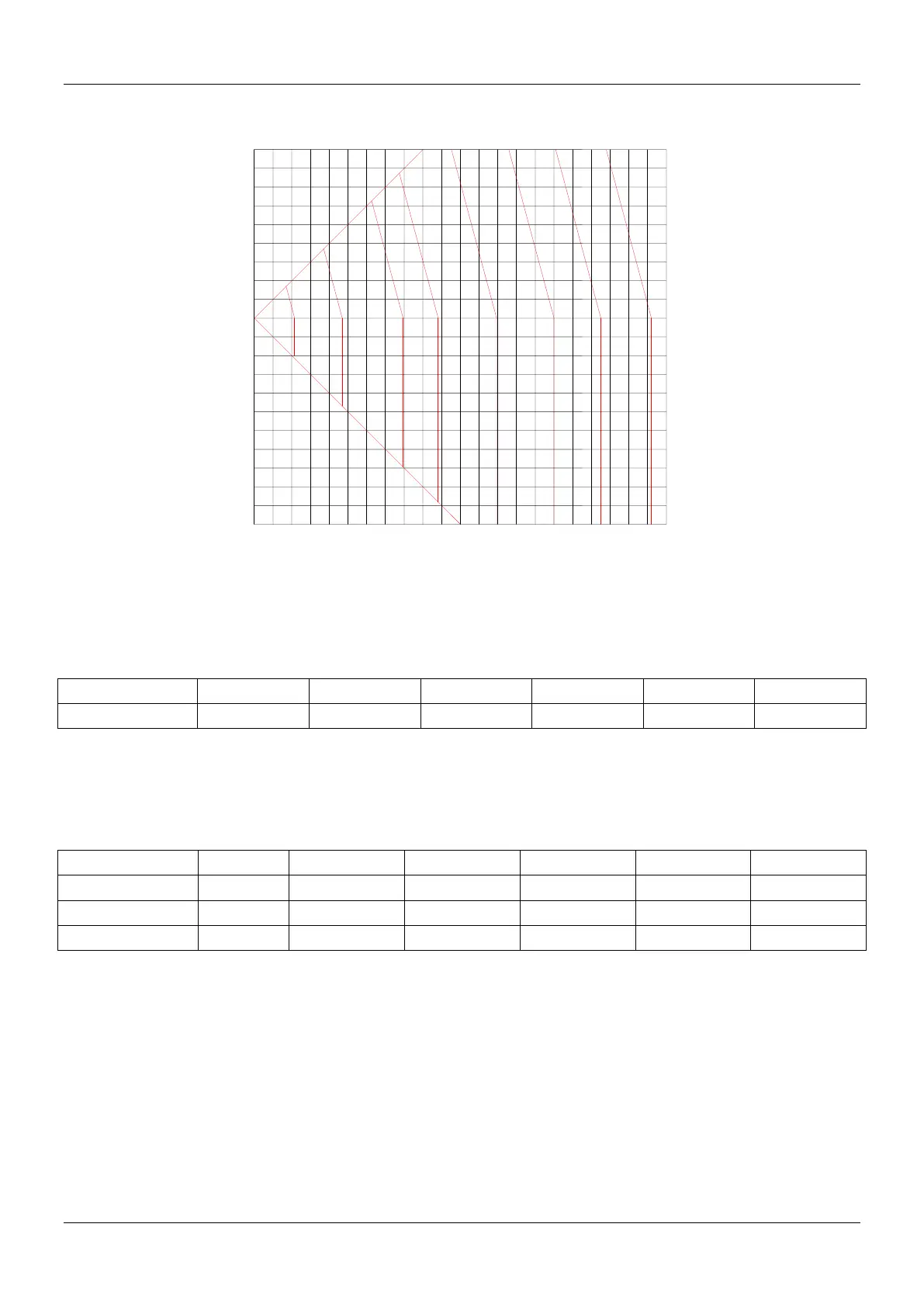

1.5.2 Heating capacity modification
2. Unit selection (based on cooling load)
2.1 Given condition
Condition:
Cooling: indoor temperature 20
o
C (68°F)WB, outdoor temperature 35
o
C(95°F)DB;
Cooling load
Location
Room A
Room B
Room C
Room D
Room E
Room F
Load kW(Btu/h)
2.1(7170)
2.8(9559)
3.5(11900)
4.6(15700)
5.8(19790)
7.2(24570)
Power supply: outdoor 380~415V-3Ph-50Hz, indoor 220~240V-1Ph-50Hz.
Piping length: 164ft (50m); Height difference between indoor unit and outdoor unit: 98.4ft (30m)
2.2 Indoor unit selection
Select the suitable capacity for the following conditions: ‘Indoor 20°C(68°F) WB, Outdoor 35°C(95°F) DB’ using
indoor unit capacity table. The selected result is as follows. (Assuming the indoor unit type is duct)
Location
Room A
Room B
Room C
Room D
Room E
Room F
Load kW(Btu/h)
2.1(7170)
2.8(9559)
3.5(11900)
4.6(15700)
5.8(19790)
7.2(24570)
Model
22
28
36
45
56
71
Capacity kW(Btu/h)
2.3(7850)
2.9(9900)
3.7(12600)
4.8(16400)
6.0(20500)
7.5(25600)
2.3 Outdoor unit selection
1) Assume the indoor unit and outdoor unit combination as follows
 Calculate the total nominal capacity of indoor units in the combination according to the above table:
2.2 × 1 +2.8 × 1+ 3.6 × 1 +4.5 × 1+ 5.6 × 1 + 7.1 × 1 = 25.8kW (88000Btu/h)
 Select outdoor unit: MDV-280(10)W/D2DN1(B) which has nominal cooling capacity: 28kW (95500Btu/h).
 Calculate the proportion: 258/280= 92%
2) Result: Because the proportion is within 50～130%, it is a suitable selection.
Real function data with indoor unit combination
 For the 92% combination, calculate the cooling capacity of outdoor unit MDV-280(10)W/D2DN1(B):
26.8kW(91440Btu/h)←90% (Indoor temperature: WB 20°C(68°F), Outdoor temperature: DB 35°C(95°F))
28.3kW(96560Btu/h)←100% (Indoor temperature: WB 20°C(68°F), Outdoor temperature: DB 35°C(95°F))
70
60
50
40
30
20
10
0
-10
-20
-30
-40
-50
-60
-70
-80
-90
-100
-110
10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
L(m)
100%
99
98
97
95
96
93
H(m)
180
190
200
90
80
90
210
220
