Midea V4+R Series Service Manual
1 Outdoor Unit Field Settings
1.1 PCB Switches and Switch Settings

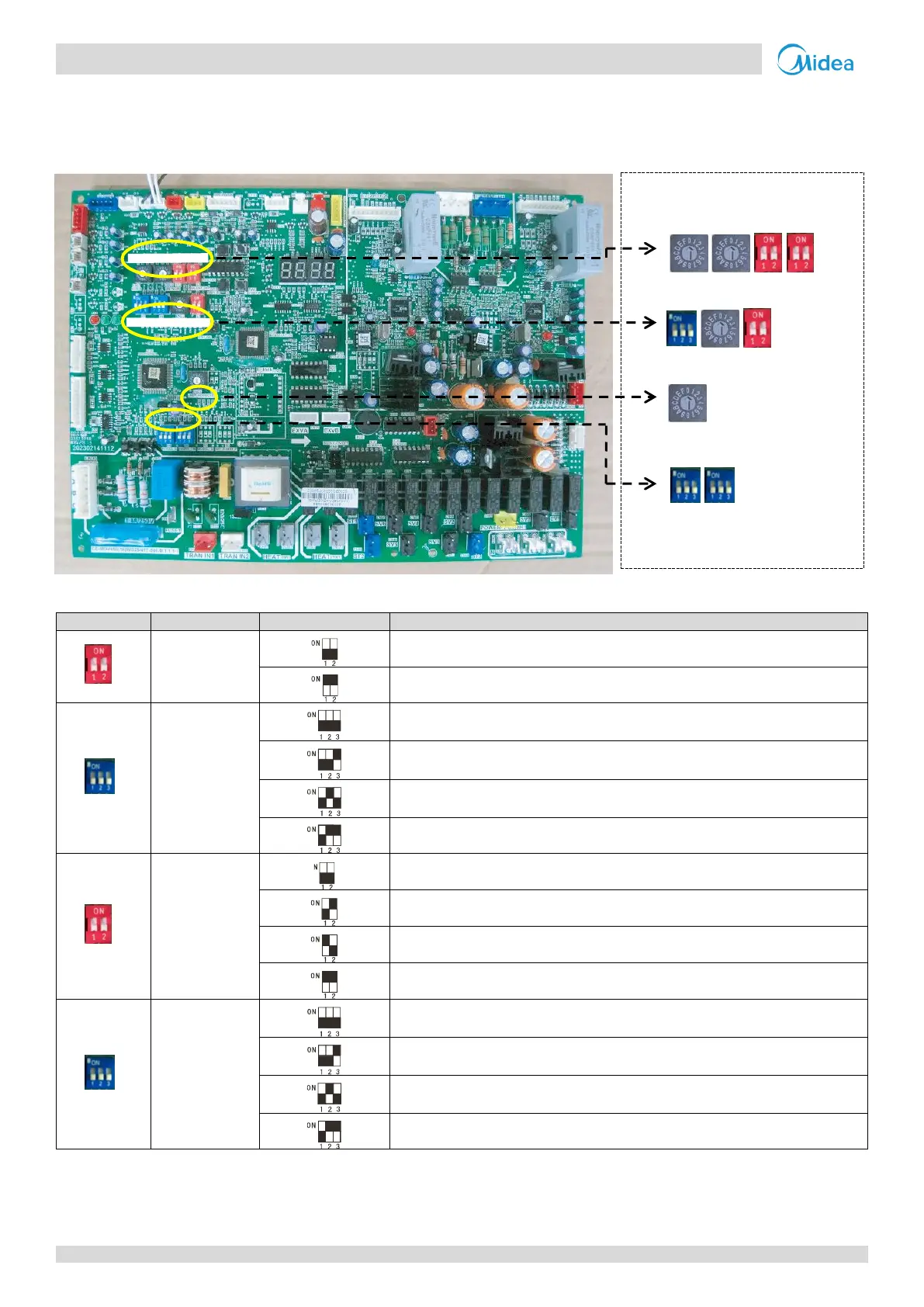

Figure 4-1.1: Outdoor unit main PCB switches
Table 4-1.1: Outdoor unit main PCB switch settings
Switch
Setting
Switch positions
1
Description
S1
Start-up time
Start-up time is 12 minutes (default)
Start-up time is 10 minutes
S2
Night silent
time
2
Night silent time is 6h/10h (default)
Night silent time is 6h/12h
Night silent time is 8h/10h
Night silent time is 8h/12h
S3
Silent mode
Night silent mode (default)
Silent mode
Super silent mode
No silent mode
S4
Static pressure
Standard static pressure (default)
Low static pressure mode (reserved, can be customized)
Medium static pressure mode (reserved, can be customized)
High static pressure mode (reserved, can be customized)
Notes:
1. Black denotes the switch position.
2. Refer to Part 4, 1.2.1 “Night silent time setting”.
Table continued on next page …
S1
S1
S2
S2
S2
S2
S3
S3
S3
S3
S4
S4
S4
S4
ENC1
ENC3
S12
S3
S7
ENC2
S1
ENC4
S4
S2
PCB switches
ENC1
ENC3
S12
S3
S7
S1
ENC2
S4
ENC4
S2
