Midland ALAN 48 EXCEL MULTI Owner's Manual

6
ENGLISH
6

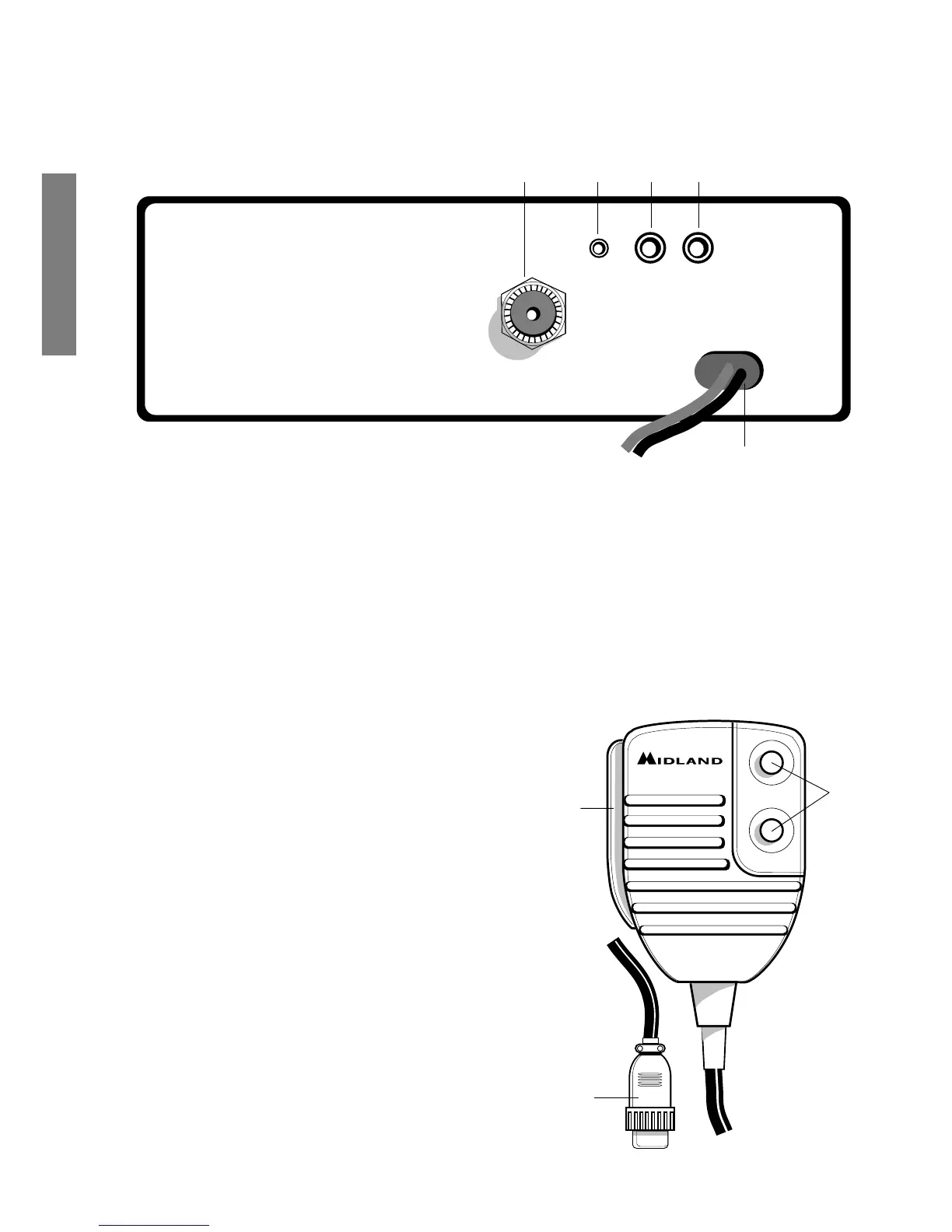

REAR PANEL
19. Antenna connector (SO239 connector type).
20. S.Meter jack: it allows an external “s meter” connection.
21. “PA” jack: by connecting with an external loudspeaker, you can use the unit as
an audio-amplifier.
22. ”EXT” jack: external loudspeaker jack (the internal loudspeaker is excluded).
23. Power 13.2 Vdc: power supply cable.
MICROPHONE
1. PTT: transmission button
2. UP/DOWN buttons: manual channels selector.
3. 6 pin microphone connector.
UP
DOWN
2
1
3
19
20 21 22
23
ANTENNA
S-METER
PA EXT

Midland ALAN 48 EXCEL MULTI Specifications

Operating Environment

operating temperature range	-10°/+55° C
frequency range	26.565 - 27.99125 MHz
frequency control	PLL

Power

dc input voltage	13.2/24 Vdc ±15%
current drain at standby (13.2V)	450mA
current drain at standby (24V)	520mA

Receiver Specifications

receiving system	Dual conversion superheterodyne
intermediate frequency	I°IF:10.695 MHz II°IF:455 KHz
sensitivity	0.5µV for 20dB SINAD in AM/FM

Transmitter Specifications

output power	duty cycle 10% 4W AM/FM @ 13.2 Vdc
modulation	FM:1.8KHz ± 0.2khz AM: 85% to 95%
frequency response	400 Hz ÷ 3 KHz

Weight and Dimensions

size	150(L) x 45(H) x 175(D)mm
weight	1Kg
