Step 1:

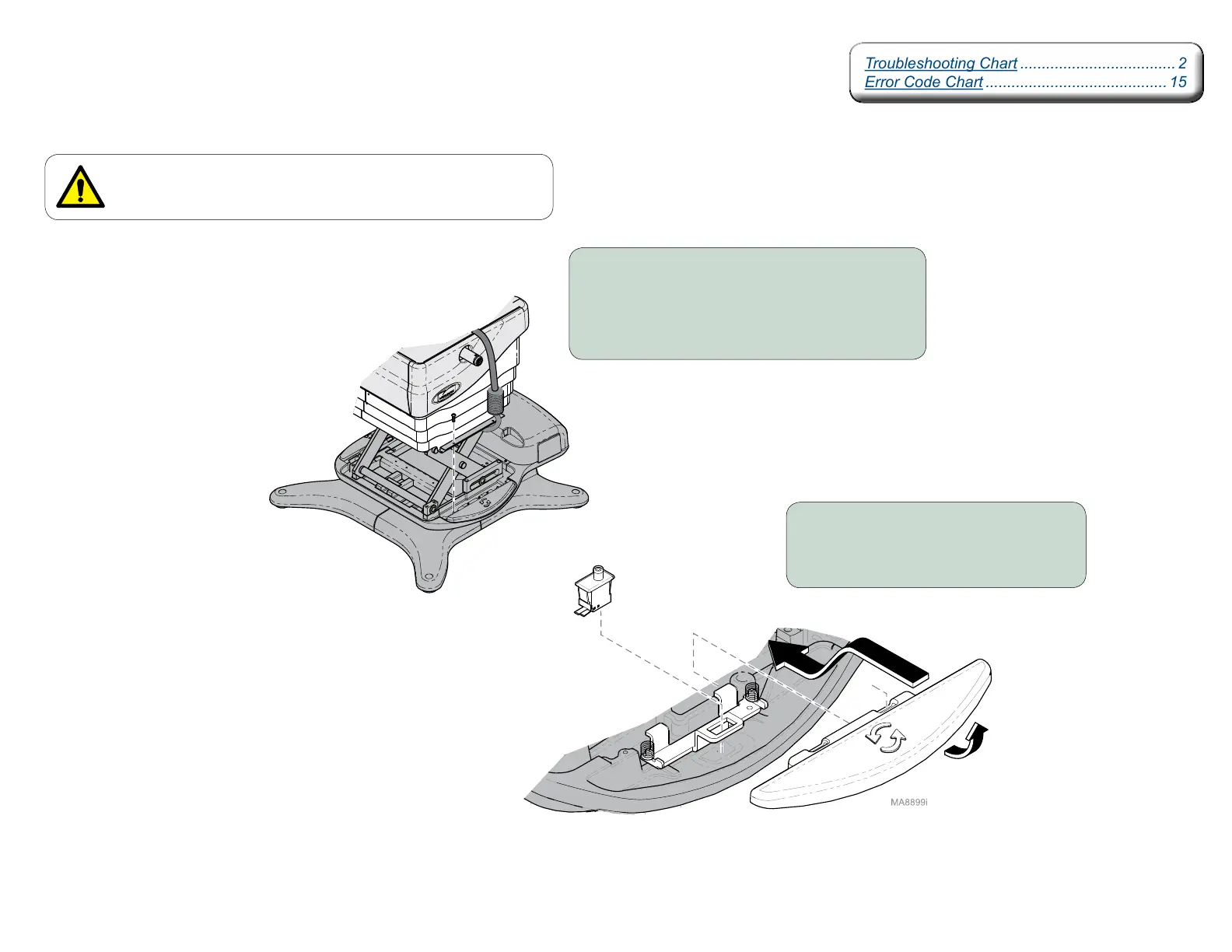

A) Remove four screws from inner shrouds.
B) Raise base shrouds.
Note: Refer to: Base Shrouds (Raising w/ Bungee Cord).
Rotational Base Brake System
Brake Pedal Switch Access
Step 2: Remove Brake Pedal.
Note: Pivot brake pedal toward column, then
press down and push forward to release.
WARNING
Always disconnect table from power source before removing
any covers. Failure to do so may result in personal injury.
