Midmark 630 - Separating Base Castings

English-66
004-1055-00
TP210 Rev. A
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 |
[Revised: mo/dd/yr]
Rotational Base Brake System - continued
Separating Upper & Lower Base Castings
Step 1:
A) Remove four screws from inner shrouds.
B) Raise base shrouds.
Note: Refer to: Base Shrouds (Raising w/ Bungee Cord).
WARNING
The steps on this page require power to be connected to the
table. Avoid all contact with wiring & electrical components.
Procedure continued on following page...
Troubleshooting Chart .................................... 2
Error Code Chart .......................................... 15
Troubleshooting Chart .................................... 2
Error Code Chart .......................................... 15
Caution
The table weighs approximately 550 lbs (249 kg).
Use supports designed for this amount of weight.

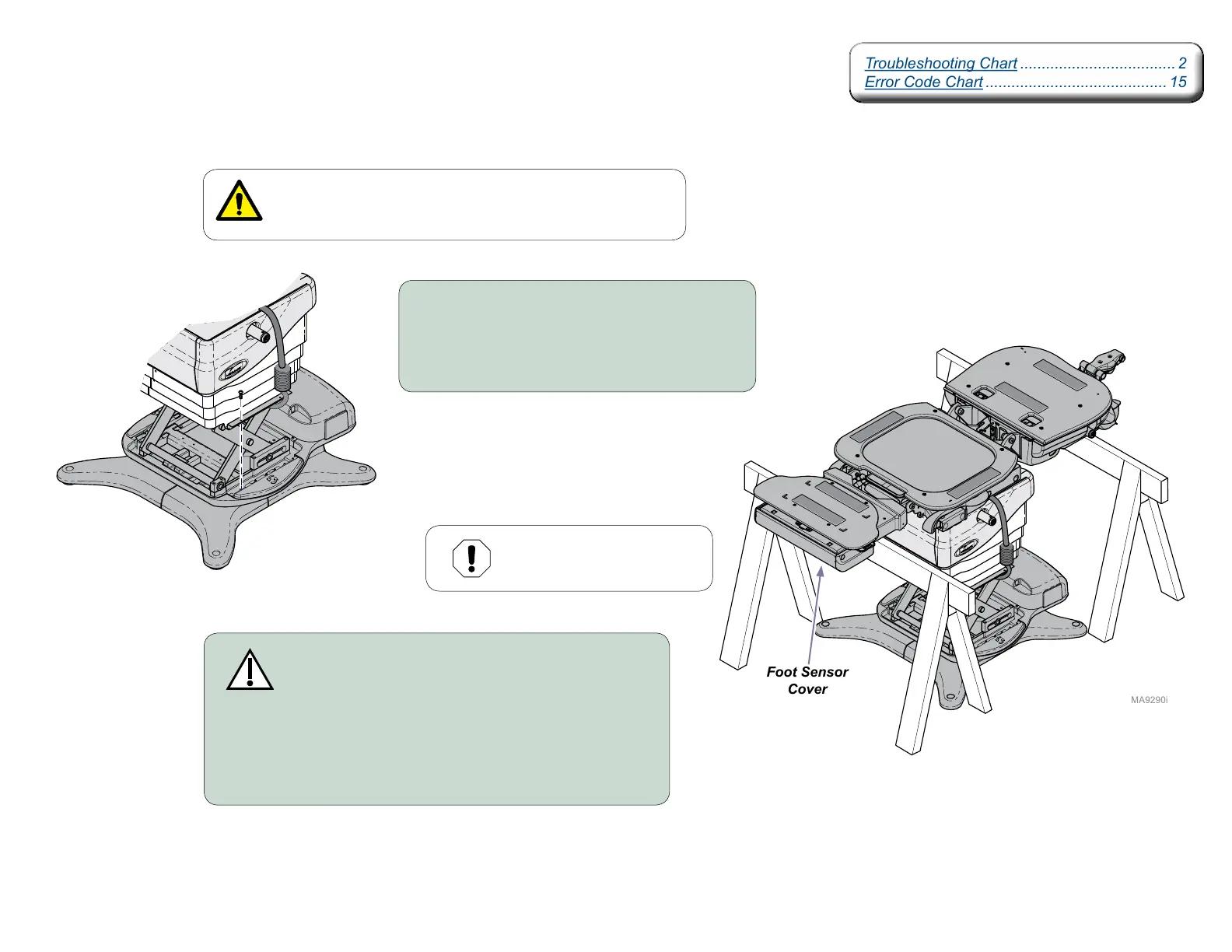

Step 2:
A) Press Base Up on hand / foot control to raise table height.
B) Position sawhorses (or other suitable supports) under back
section and foot section.
Equipment Alert
Ensure support does not make
contact with foot sensor cover.
Foot Sensor
Cover
