Preva Installation/Service Manual, 00-02-1577, Revision E01
122

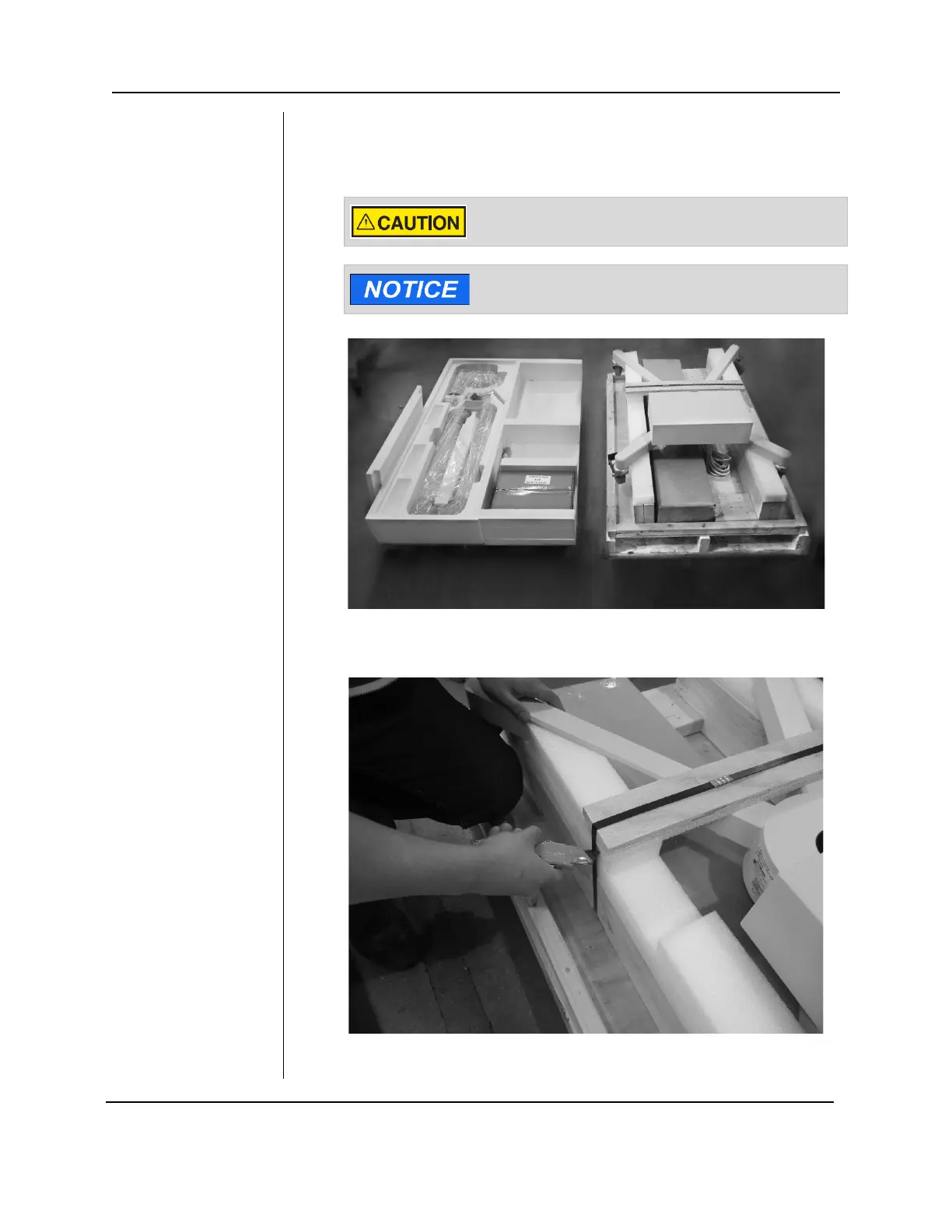

FIGURE 115
3. Lift the shipping box and separate from the crate.
4. There are two layers of parts. Separate the top layer and place on the
floor or remove each piece individually.
Observe proper lifting precautions while doing this.
The base is heavy and requires two people to lift.
To prevent damage to the tubehead, take care when
handling the articulating arm assembly.
FIGURE 116
5. Cut the transportation band from the lower layer that secures the
mobile base in the bottom layer.
