Installing the Control Unit on a Single Wood Stud Wall
Mark and Drill
Control Unit
Mounting Holes
SINGLE STUD INSTALLATION WITH THE
“INSTALLATION GUIDE” (30-P0076).
Introduction
The Installation Guide is intended to be a positive means of locating the center
of a 2x4 wooden stud. The Installation Guide is a necessary part of the
installation and must be used whenever single stud installations are performed.
The Installation Guide is equipped with side tabs which can be removed if
placement of the Guide is obstructed by an electrical box. During installations
which include attachment to a 4x4 wooden stud, all of the tabs, on one side of
the guide, can be removed in order to facilitate adequate placement and
attachment.

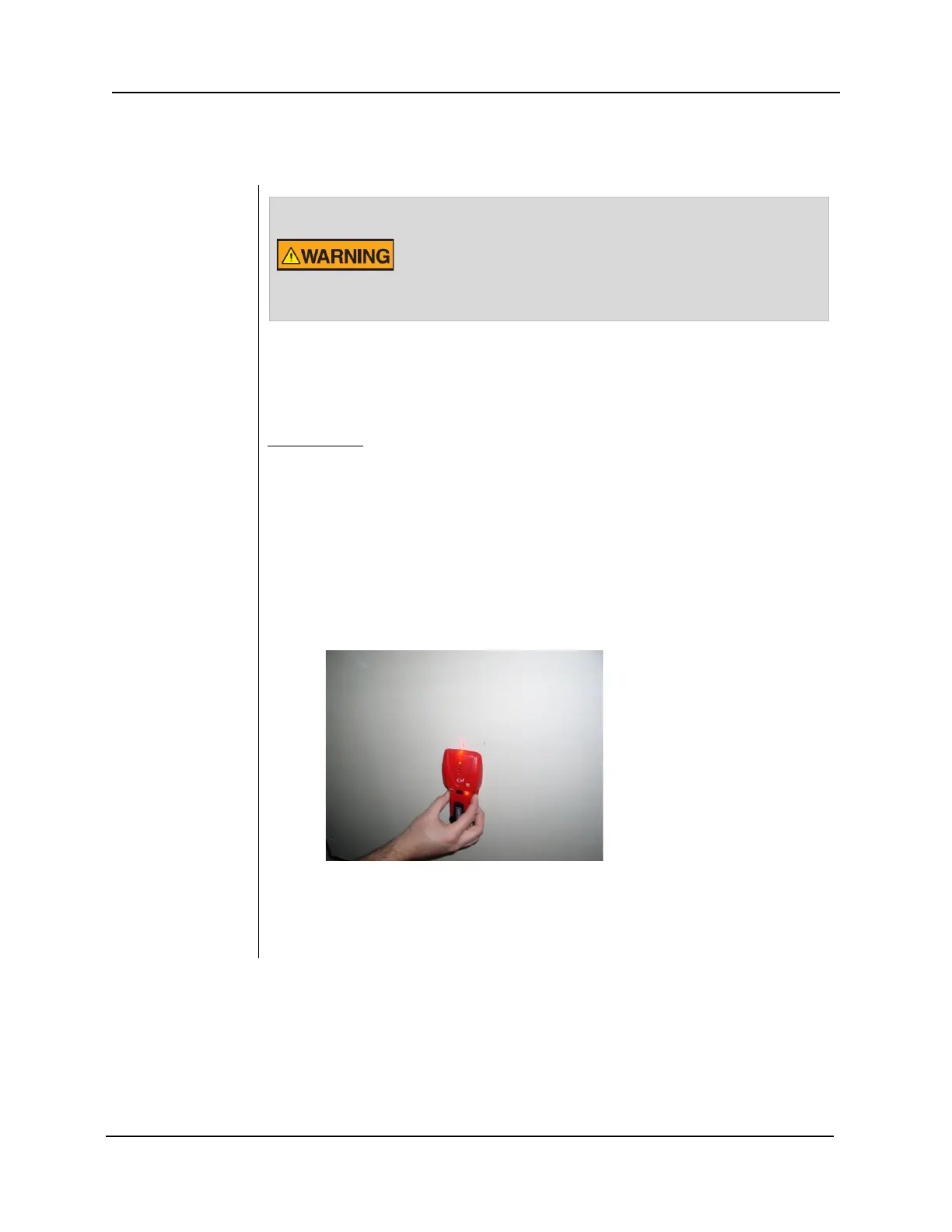

1. Locate the wooden stud.
•
Do not attach the system with the 208 cm (82 in.) reach to a
wall in the single stud configuration. Contact Midmark
Technical Support for guidance.
•
Use the provided machine screws, large flat washers, and
nylock nuts to fasten the system to metal supports. Do not
use lag screws.
