Midmark Preva - Connecting the Cables

Preva Installation/Service Manual, 00-02-1577, Revision E01
38
Connecting the Cables
Connecting
the
Articulating
and
Horizontal
Arm Cables
1. Connect the two Articulating Arm cables to the Horizontal Arm cables, as shown in
Figure 23 and Figure 24.
2. Once the connections are made, dress the cables and push them into the opening
in the Horizontal Arm.

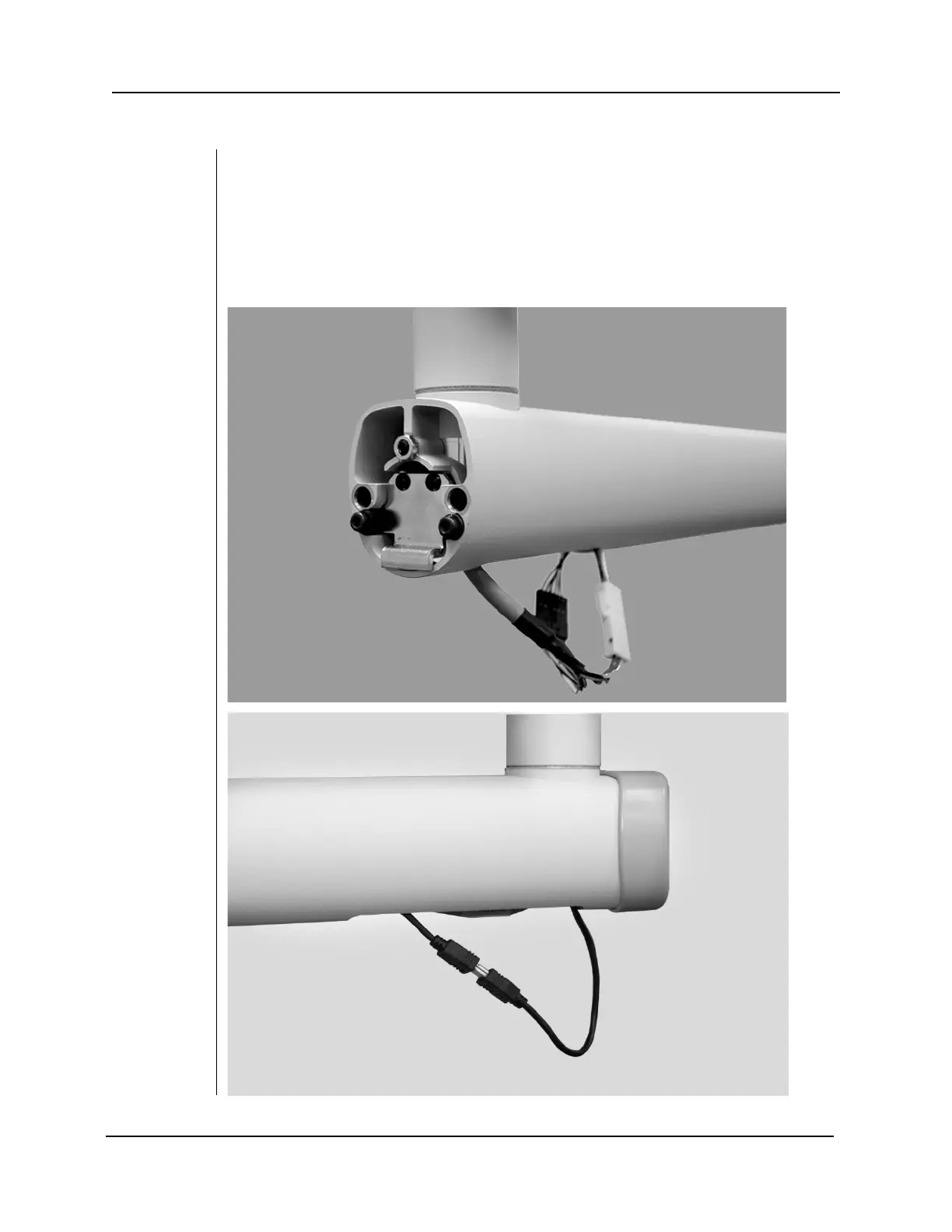

Figure 23
Connecting
the
Articulating
Arm and
Horizontal
Arm Cables
Figure 24
Connecting
optional
Integrated
Sensor Cable
