Midmark Preva - Control Unit Installation

Preva Installation/Service Manual, 00-02-1577, Revision E01
22
Operator Panel Locations
The Operator Panel for the Preva Dental X-ray System can be installed on the
Control Unit or mounted remotely on a wall.
On Control Unit
The Operator Panel snaps on to the front of the Control Unit. Installation of
the Operator Panel on the Control Unit may require the purchase and use of
the coil-cord hand switch option, 30-A2040.
Remote Operator
Panel
The Operator Panel is mounted on the wall remote from the Control Unit.
If the Operator Panel is mounted separate from the Control Unit, a supplied
cable must be run from the Control Panel to the Operator Panel. Where local
codes require, a separate 2x4 junction box should be mounted to the left of
the mounting stud above the power supply box. Refer to the supplied
mounting template for specific location.
Wall Mounting
Above a
Countertop

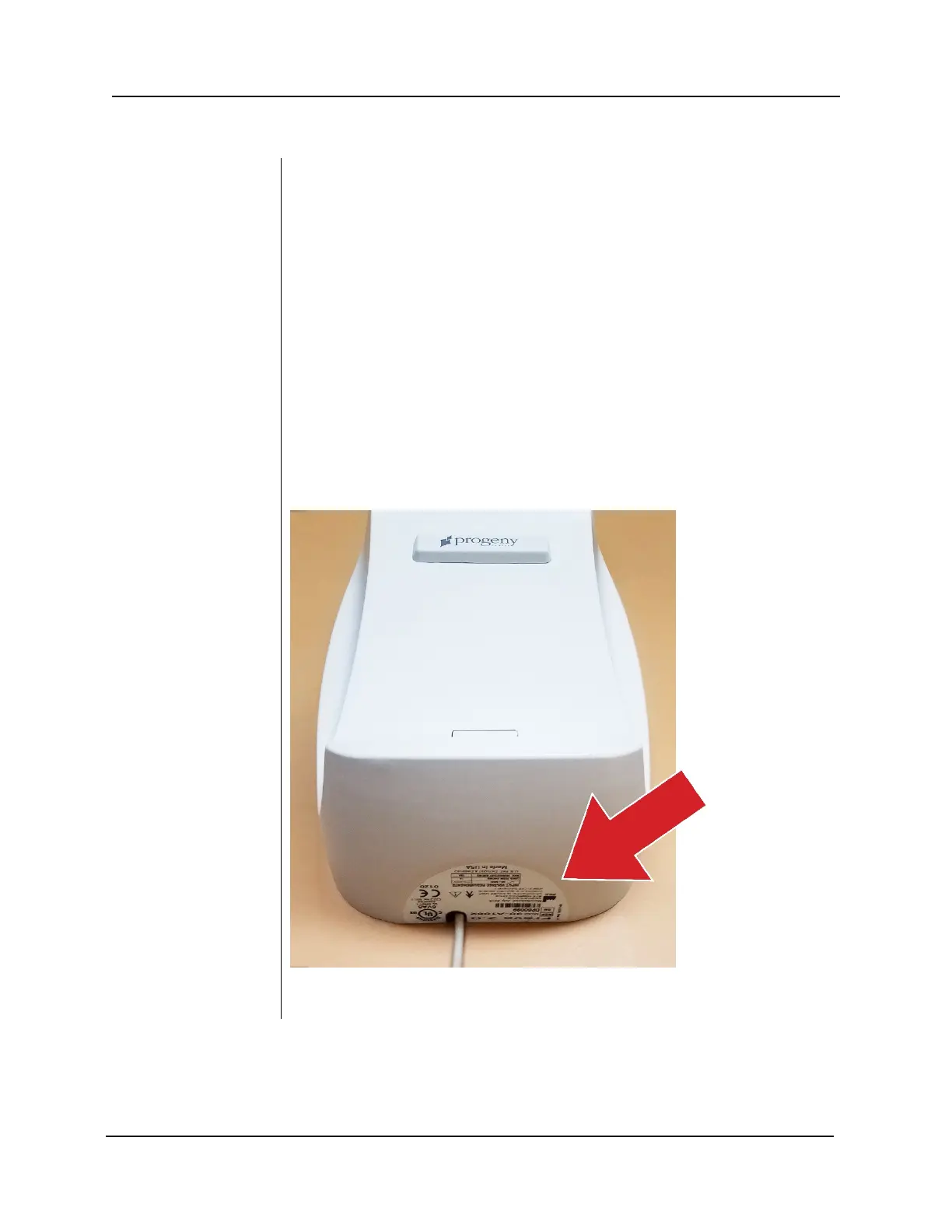

Product Label
Location
When mounting the control unit above a horizontal surface such as a
countertop, allow sufficient distance between it and the bottom of the control
unit to allow the product label to be read.
