Preva Installation/Service Manual, 00-02-1577, Revision E01
17
Installation Options
Mounting Configurations
Template
This section gives instructions for installing the Preva Dental X-ray System in three
mounting configurations. Use the mounting template, shown in Figure 8, to guide single
stud installations. Reverse the template for dual-stud installations.

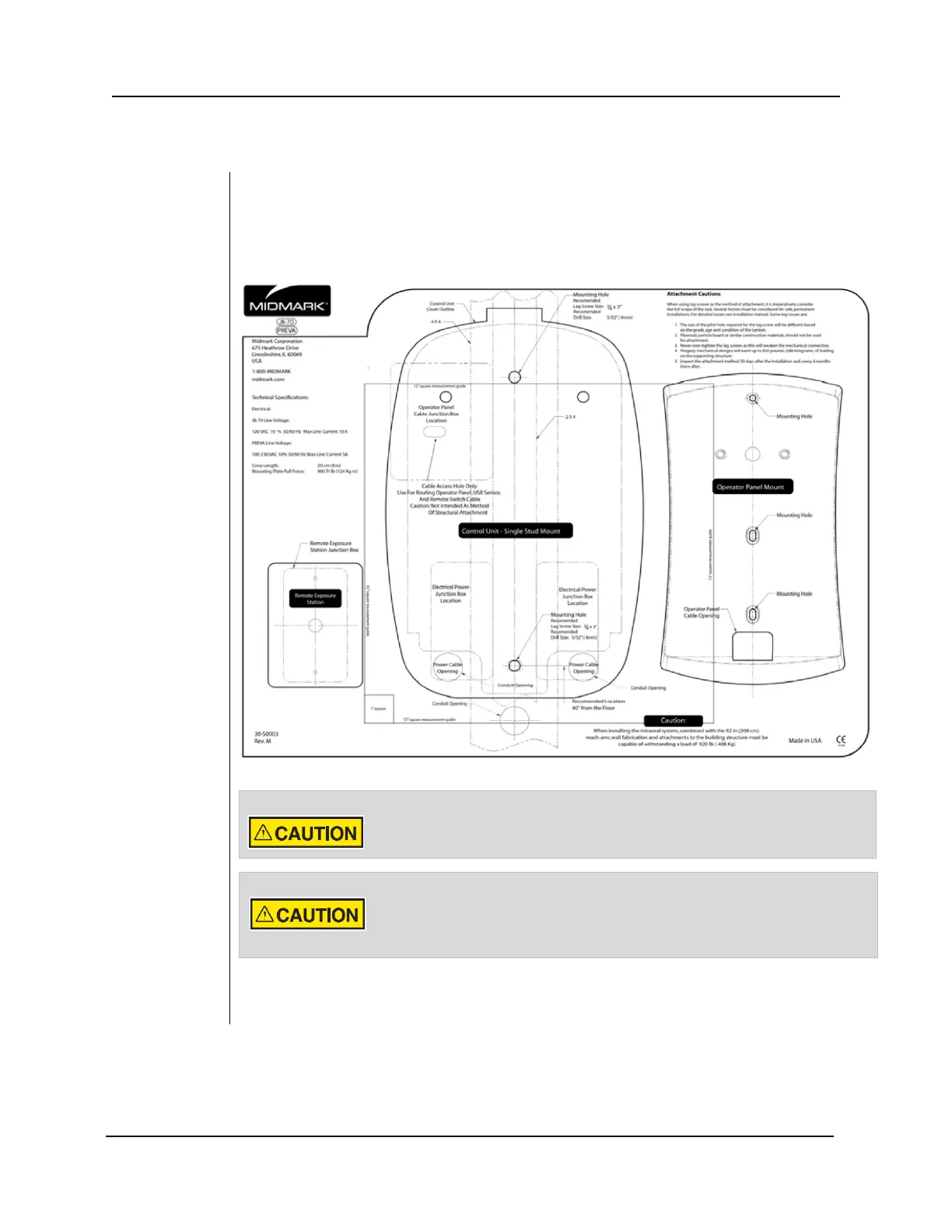

Figure 8
Mounting
Template
When installing the intraoral system, combined with the 208 cm (82 in.)
reach arm, wall fabrication and attachments to the building structure
must be capable of withstanding a load moment of 127 kg-m (920 lb-ft).
Do not use lag screws as an attachment method for metal supports
such as those found in center island pass-through cabinets. Midmark
provides machine screws, large flat washers, and nylock nuts for
fastening the system to metal supports.
