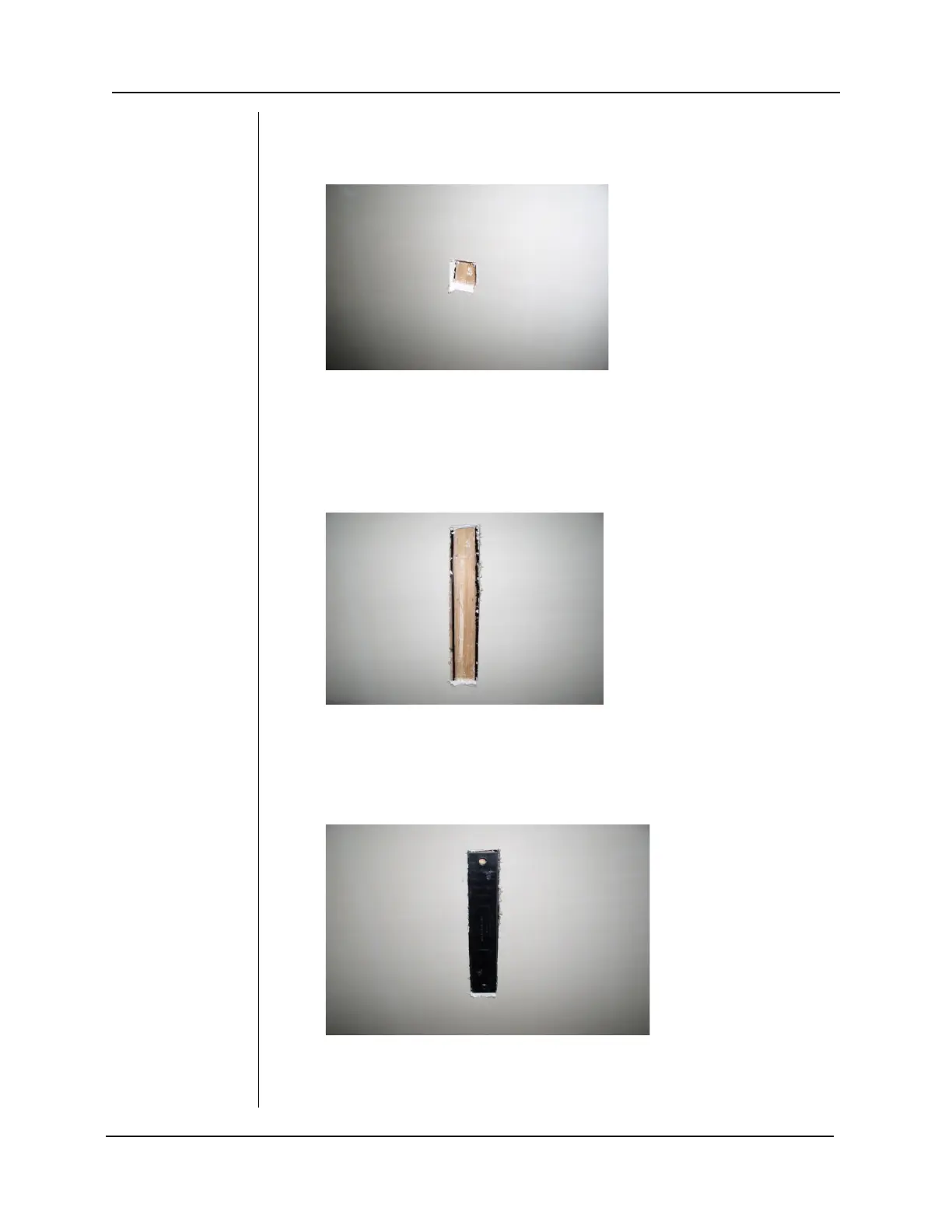

2. Make a small opening in the wall to positively identify the position
of the wooden stud.
3. Draw an outline of the installation guide on the wall, ensuring that
the vertical height matches the requirements set forth on the
“Wall Mount Template” (30-S0003). Open the wall so that the
installation guide will rest directly on the wooden stud.
4. Place the installation guide on the wooden stud.
If the surface of the Installation Guide falls below the surface wall,
a correspondingly longer fastener must be chosen.
