Wiring & Circuit Information 4-6
Computer Motherboard Assembly 20-10554

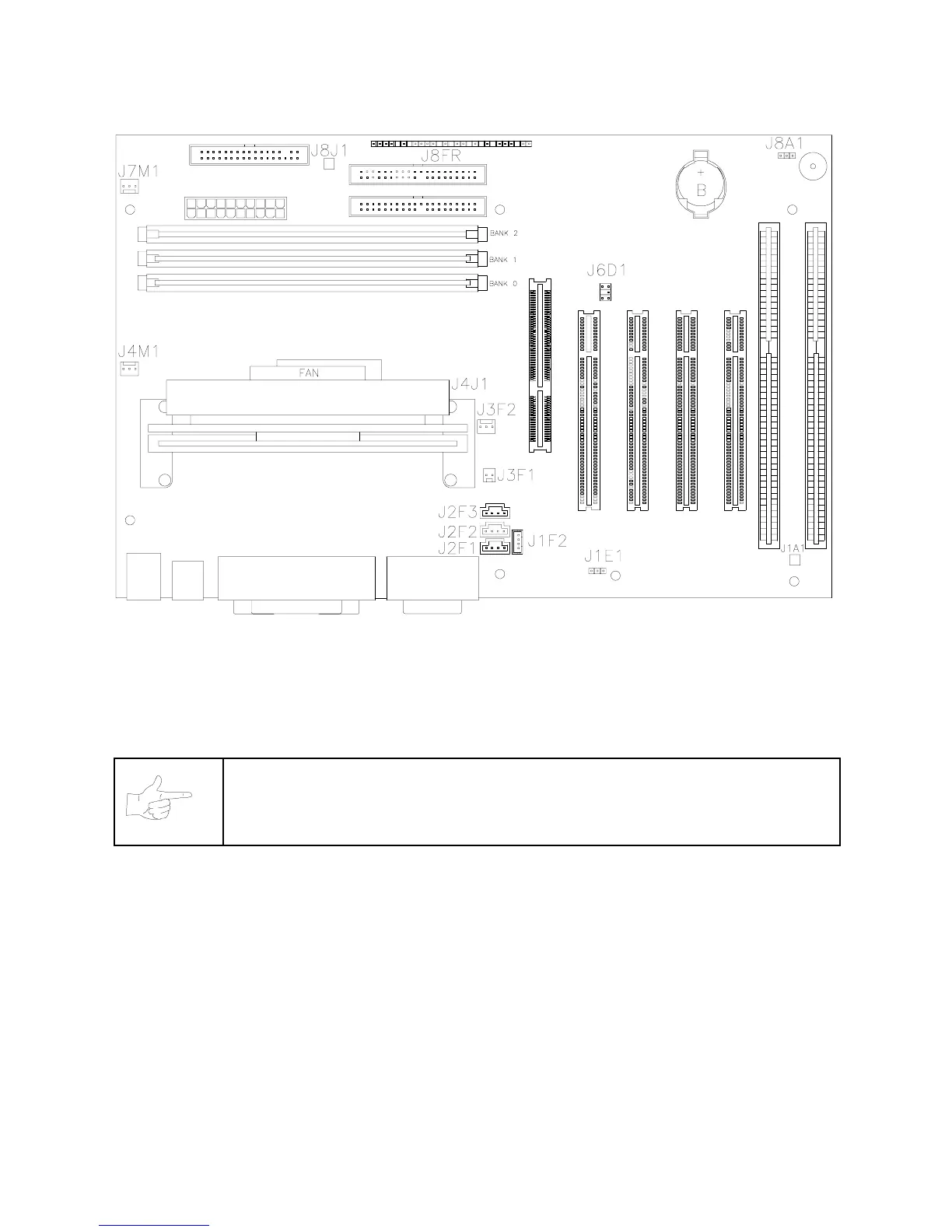

MOTHERBOARD CONNECTOR AND JUMPER STATUS
(NOTES FOR TABLE ON FOLLOWING PAGE)
NOTICE:
The term VGM refers to the video game machine.
NOTES:
1. VGM doesn’t require jumper or telephone connection.
2. VGM doesn’t require jumper. VGM uses proprietary network for game linking.
3. VGM doesn’t require connections. VGM has no ATAPI devices (CD ROMs).
4. VGM doesn’t require jumper. Tamper-detection security feature isn’t installed.
5. Connect processor module fan to this jack. Computer may become unreliable if processor overheats.
6. Connect processor module to this jack. 242-pin socket accepts single microprocessor modules.
7. VGM doesn’t require connections. Case cooling fans connect directly to power supply.
8. VGM doesn’t require connections. VGM doesn’t use SCSI devices (Hard Drives).
9. Connect reset cable from Filter Board to this jack. VGM doesn’t use front-panel devices.
10. Jumper must be set over pins 1 & 2 for this VGM. VGM won’t run with incorrect or missing jumper.
* Replacement Motherboards may not include this jumper. Refer to Parts to order extra shunt jumpers.
