1-5
[ ] 5. Install one nut onto each leg leveler. Tilt the cabinet onto its side. Locate four threaded holes
under the cabinet. Install a leveler and nut into each hole. Don’t tighten the nuts yet.
[ ] 6. Tilt the seat pedestal onto its side. Locate three threaded holes under the seat pedestal. Install a
leveler and nut into each hole. Don’t tighten the nuts yet.
[ ] 7. Locate the caster wheel assemblies. Attach one caster onto each group of threaded studs. The
cabinet uses four swivel casters. The seat pedestal uses three. Place the swivel caster in front.
Place two locking casters in back. Tighten the caster mounting nuts very firmly.

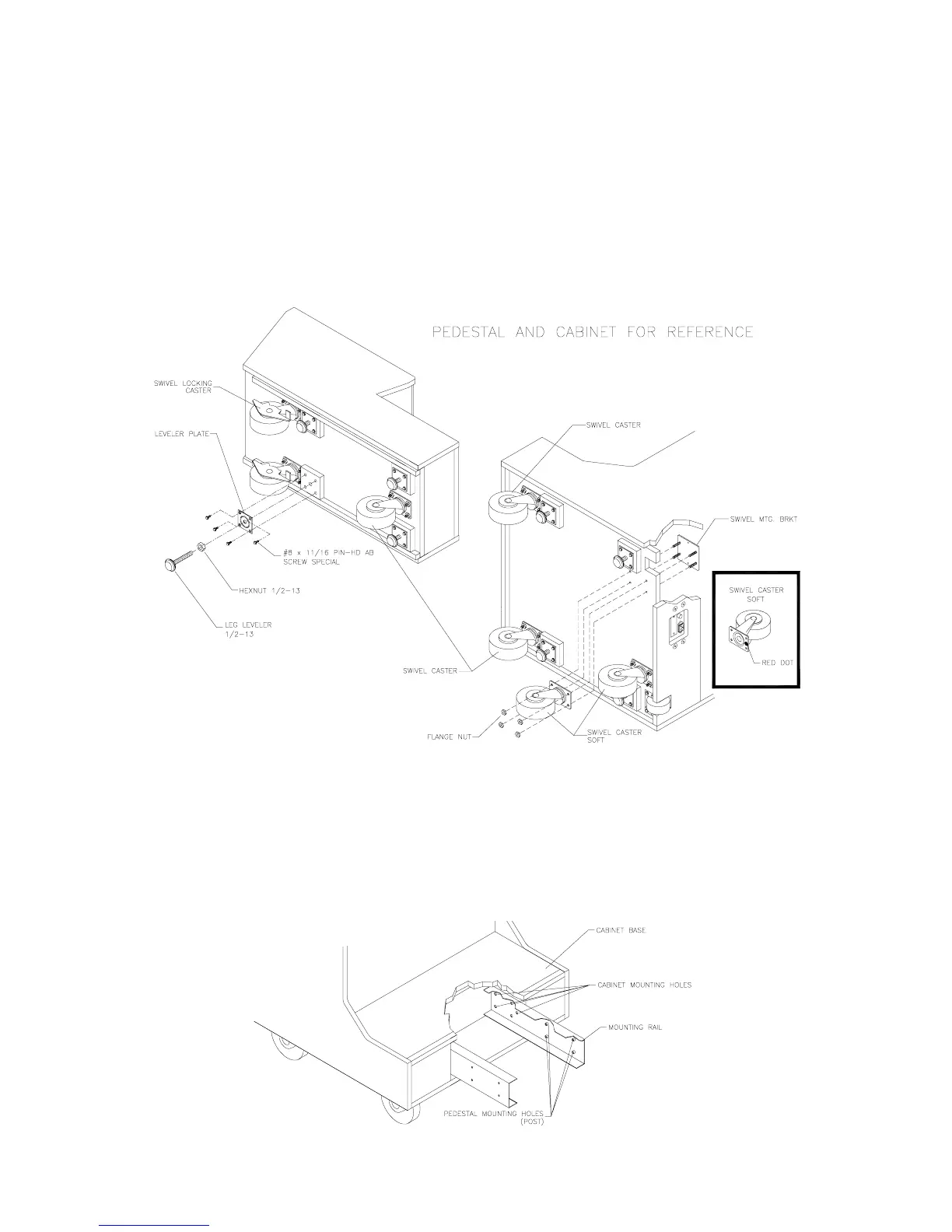

INSTALL CASTERS AND LEVELERS
[ ] 8. Stand the cabinet upright and make certain that it rests in a stable position. Move cabinet to its
play location. Maintain clearance between the cabinet and walls, drapes, other VGMs, etc. Lower
each leg leveler until the cabinet is stable and level. Adjust the levelers to raise the wheels up off
the floor. Distribute the cabinet’s weight equally on each corner. Tighten the leveler nuts.
[ ] 9. Install the rear door. Close and lock this door. Leave the other doors open for now.
LOCATION OF SEAT PEDESTAL MOUNTING HOLES
