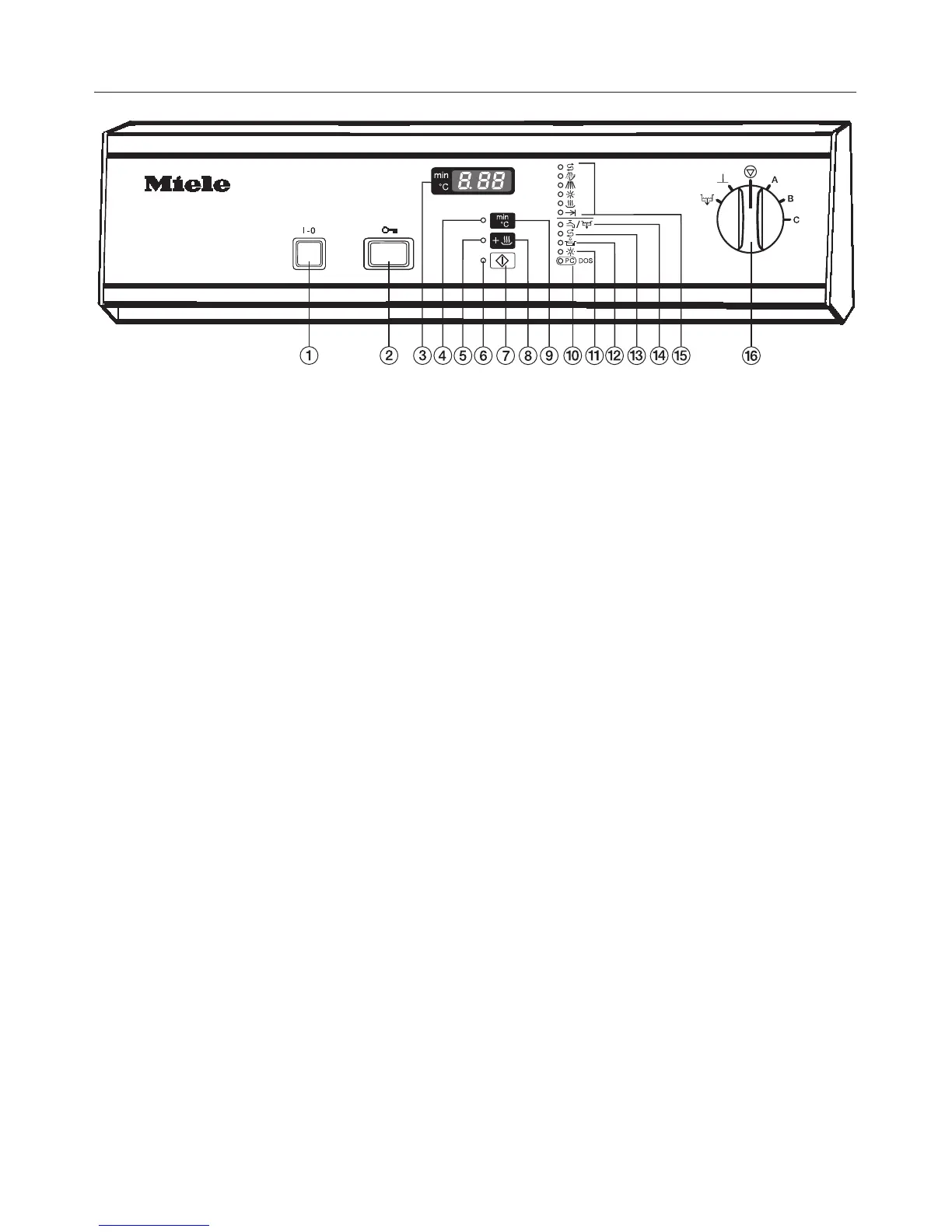

Miele G 7804 - Guide to the Machine; Programme Sequence Indicators; Check;Refill Indicators

a On/Off switch I-0
b Door release a
c Display
d Delay start indicator light
e Drying indicator light
f Programme start indicator light
g Start button 6
h Drying button 3
i 4 button to switch between the
displays for:
- actual temperature
- elapsed time
Check/Refill indicators
j 8 DOS Optical interface for
service technician;
when connected toaG60
DOS module: Add (liquid)
cleaning agent
k H Add rinsing agent
l w Add neutralising agent
m k Add salt
n p/6 Inlet/drain
o Programme sequence indicators:
k Reactivation
I Pre-wash
l Main wash
H Interim rinse / Final rinse
c Drying
r Programme finished
p Programme selector
f Stop
A SHORT
B MEDIUM
C LONG
6 DRAIN
D PRE-RINSE
Guide to the machine
6
