Miele H397B2 - Component Overview - Single Oven W; Master Chef Menu

Technical Information
10
Master Chef Ovens
1.5.2 Component Overview – Single Oven, with Master Chef Menu
1 (R12) Lower Heating Element
2 (R14) Convection Heating Element
3 (1M2) Convection Fan
4 (1M15, 2M15) Rotisserie Motors
5 (1R30) Oven Temperature Sensor
6 (2T1) Light Transformer
7 (3R30) Pyrolytic PTC Sensor (P series only)
8 (1N1) Electronic Unit
9 (1F1) Hi-Limit Cutoff
10 (1S60) Interlock Switch
11 (1F1) Hi-Limit Cutoff
12 (1M23) Door Lock Motor (P series only)
13 (X3/1) Terminal Block
14 (1M/1) Oven Cooling Fan
15 (S1) Child Safety Switch
16 (Z2) Interference Suppression Capacitor
17 (1T1) Transformer
18 (1K1) Oven Relay
19 (2S60) Interlock Switch
20 (S24) Door Switch
21 (1A1, 2A1) Display Electronic
22 (R15) Broiler Element
23 (R13) Upper Heating Element
24 (1X5/8) Connector - Temperature Probe
25 (2R30) Temperature Probe
26 Halogen Bulb
27 (1H3/1 & 2H3/1) Light Assembly

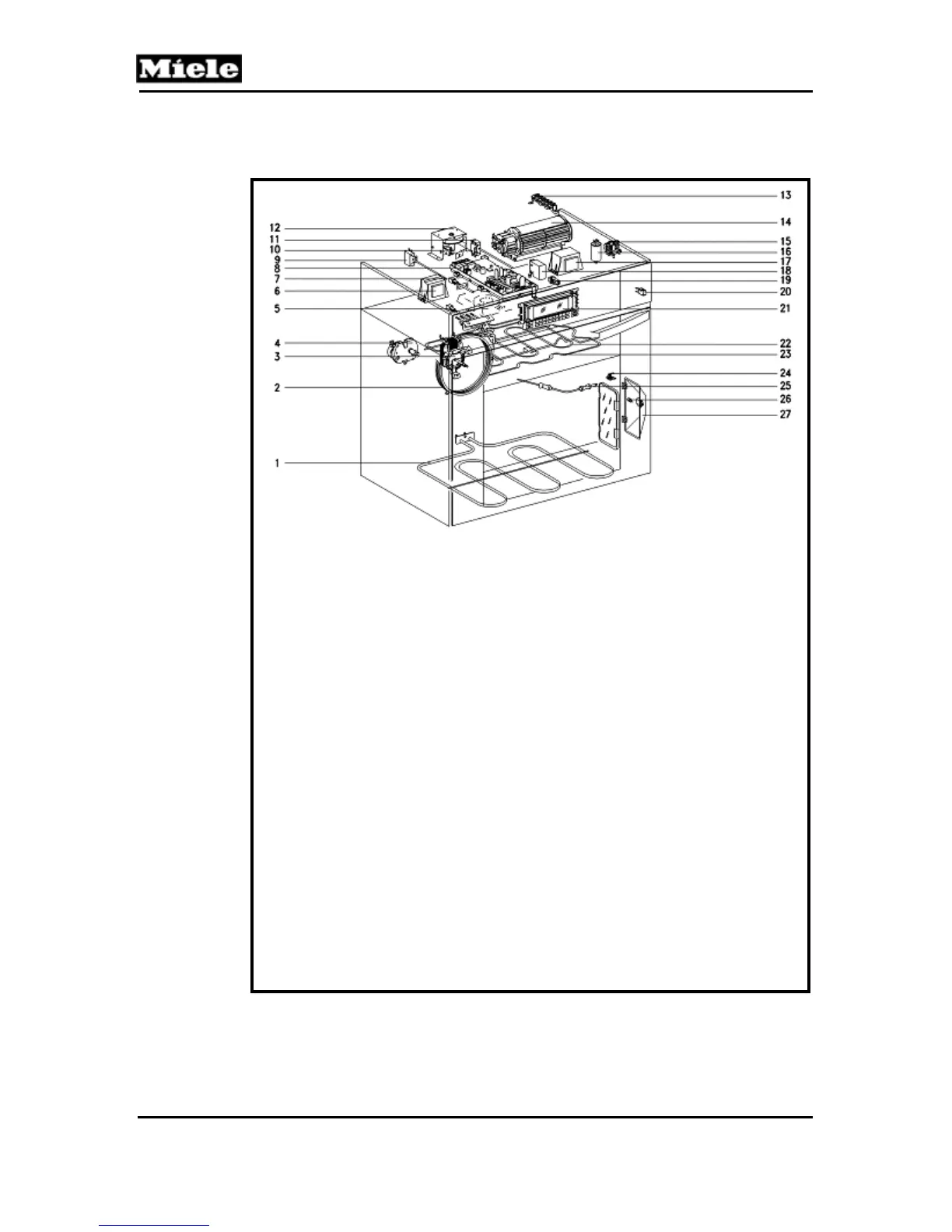

Figure 1-8: Component Overview – Single Oven with Master Chef Menu
(Self Clean (P) Model Shown.
