5.19 Upper (or Single Oven) Door Latch, Door Lock Switch
and Door Close Switch (2S60 & 1S24) (Self Clean
Models) – Access
1. Remove the Front Doors (Section 5.2)
2. Remove the oven (Section 5.5)
3. Remove the Control Panel (Section 5.6)
4. Remove the Top Cover (Section 5.8)
5. Refer to Figure 5-12. Remove the four Screws (Item 1) that secure the
Upper Housing Assembly to the Cavity Assembly.

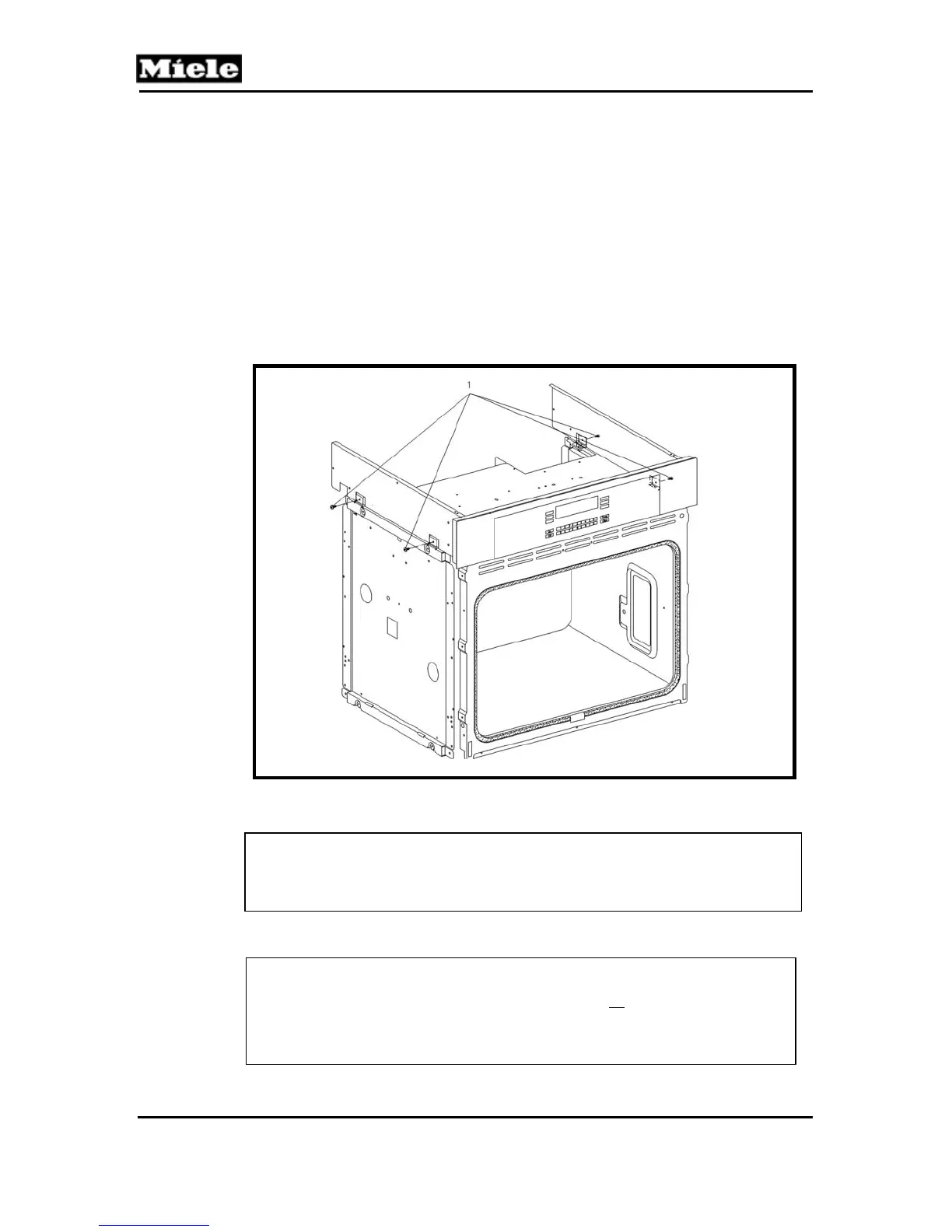

Figure 5-12: Upper (or Single Oven) Housing Retaining Screws
Note
Use caution when lifting the front of Upper Housing, as the wiring
is still connected.
Safety Tip
A second person is required to lift the housing or safely secure
the housing into a position during Latch, Door Lock Switch and /
or Door Close Switch service / replacement.
