Technical Information
38
Master Chef Ovens
5.12 Lower (or Single Oven) Side Covers - Removal
1. Remove the Front Doors (Section 5.2).
2. Remove the oven (Section 5.5).
3. Remove the Lower Back Panel (Section 5.10).
4. Remove the Side Cover Retaining Screws.
5. Lift the panel from the oven.
5.13 Air Shield Panel (Double Ovens) - Removal
1. Remove the Front Doors (Section 5.2).
2. Remove the oven for service (Section 5.5).
3. Remove the Upper Back Panel (Section 5.9)
4. Remove the Lower Back Panel (Section 5.10).
5. Refer to Figure 5-6. Remove the Retaining Screws (Item 2)
6. Remove the Air Shield Panel (Item 1)

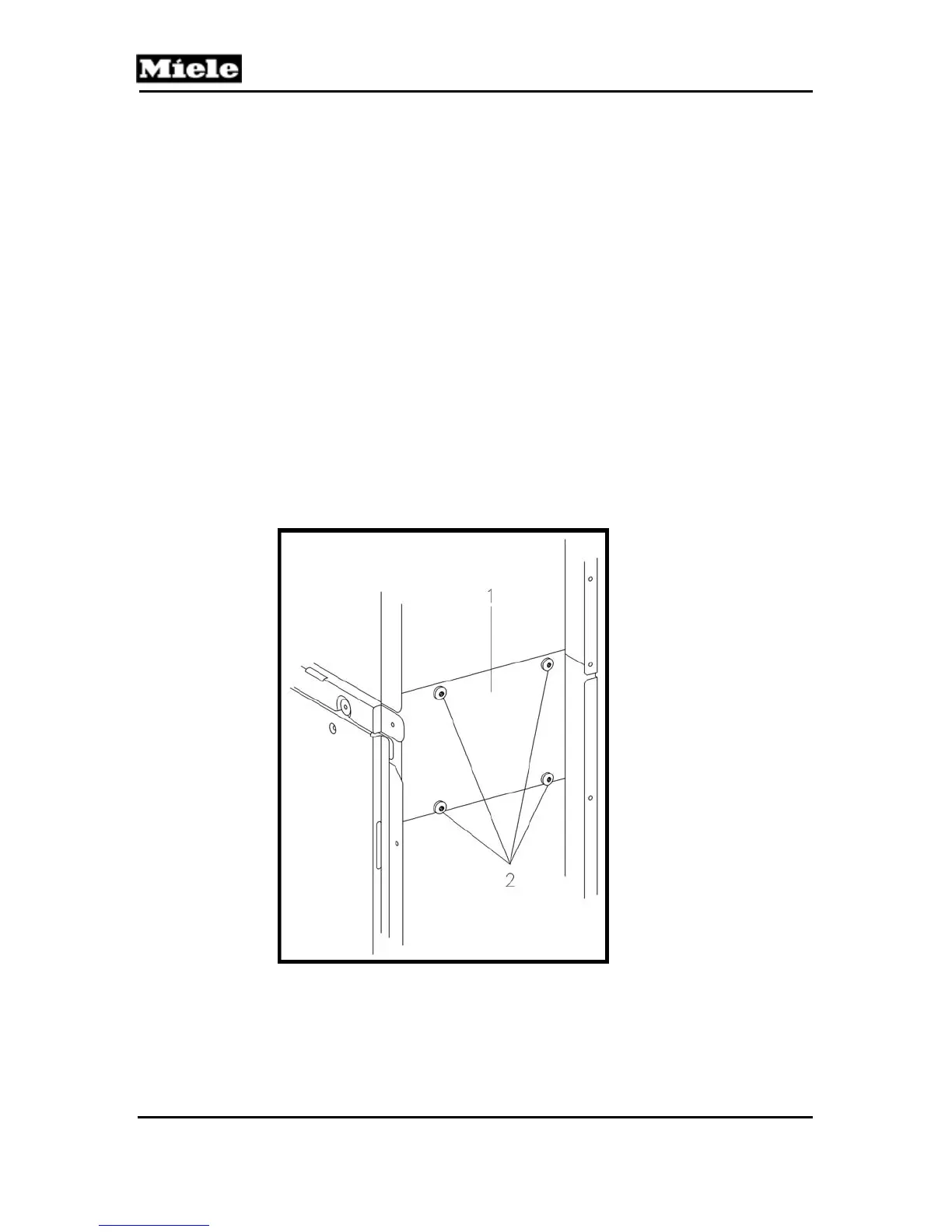

Figure 5-6: Air Shield Panel
