5.23 Convection Heating Element - Removal
(1R14, 2R14)
1. Refer to Figure 5-17.
2. Remove the Front Doors (Section 5.2).
3. Remove the oven (Section 5.5).
4. Remove the Oven Cavity Back Panel (Section 5.21)
5. Remove the Back Panel (Section 5.9 and / or 5.10)
6. Note the position of the electrical connections to the element.
7. Unplug the electrical connections from the element.
8. Access the oven cavity and Remove the Heating Element Retaining
Screws (Item 1).
9. Remove the Heating Element.

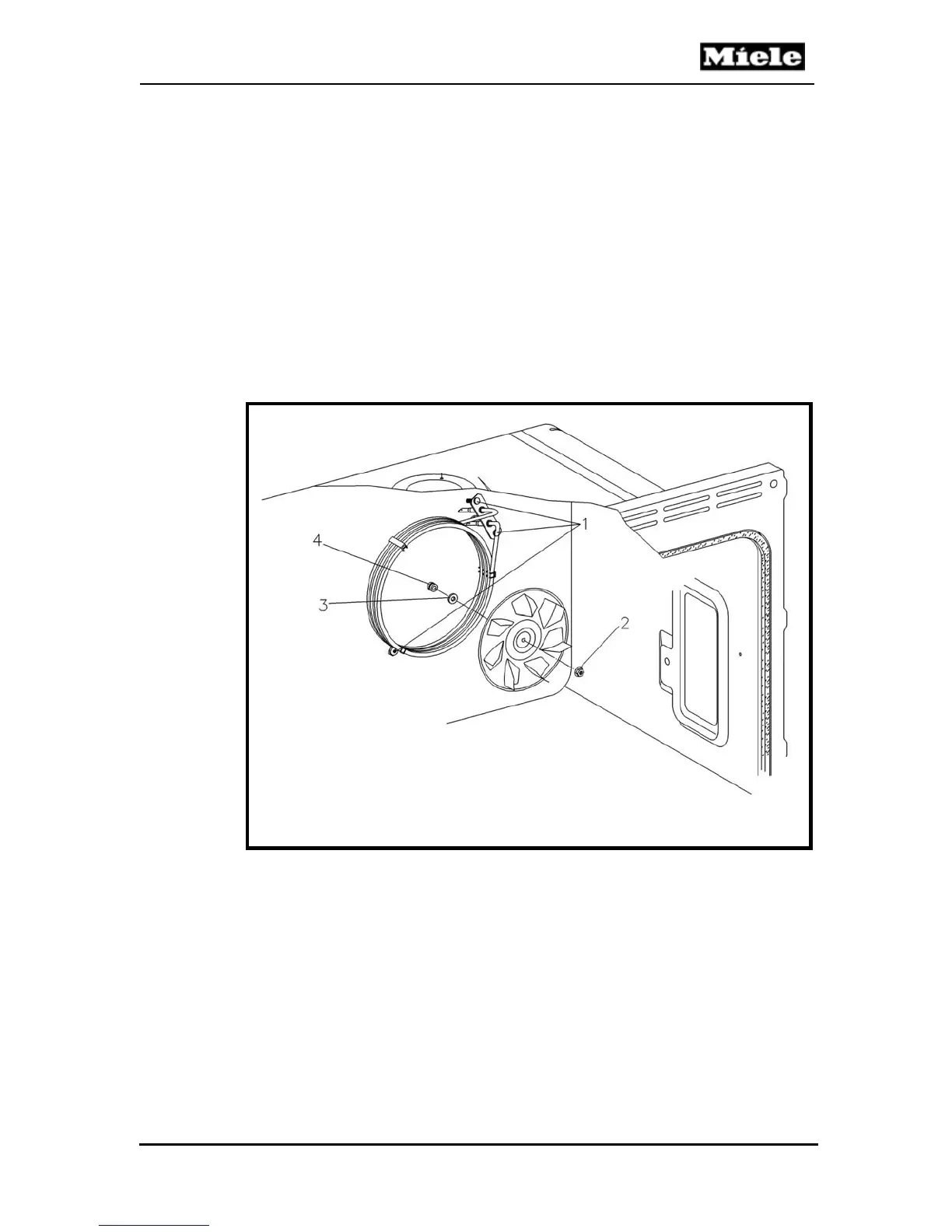

Figure 5-17: Convection Fan and Heating Element Hardware
1. Retaining Screws
2. Convection Fan Retaining Nut
3. Convection Fan Shaft Washer
4. Convection Fan Shaft Bushing
