3. Air intake-optimised base panel
The performance of the hob depends on the ventilation.
The air intake-optimised base panel has openings where the fans are positioned.
This section contains instructions for creating an air intake-optimised base panel.
≤ 40 mm
≥ 45 mm
≥ 15 mm
≥ 20 mm
Ø 55–60 mm

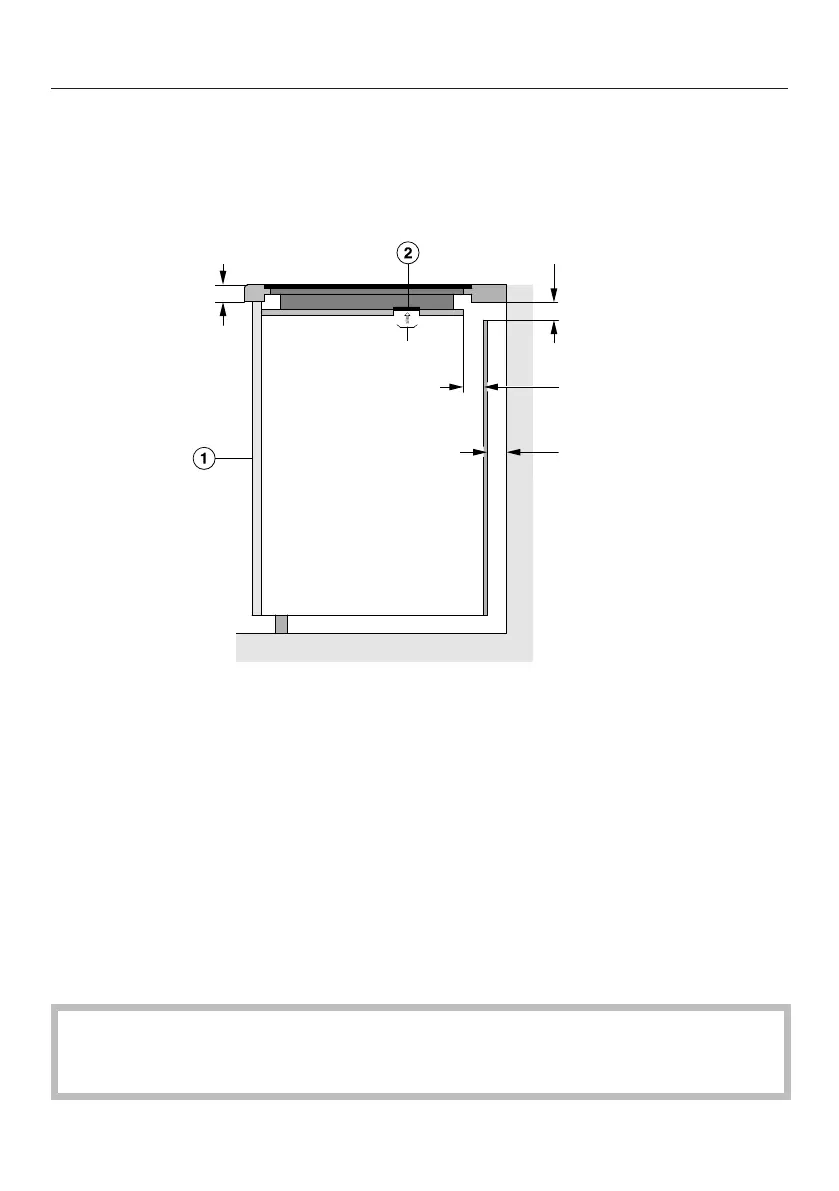

Side view
a
Front
b
Fan
To ensure sufficient ventilation to the hob, a minimum safety distance must be left
between the underside of the air intake-optimised base panel and any drawer.
Minimum safety distance between the underside of the air intake-optimised
base panel to the:
- Upper edge of drawer: ≥ 5 mm
- Base of drawer: ≥ 75 mm
- Upper edge of intermediate shelf: not permitted
There must be no gap between the air intake-optimised base panel and the
hob.
A gap causes more warm air to be drawn in. The hob is not adequately cooled.
