Areas of application
44

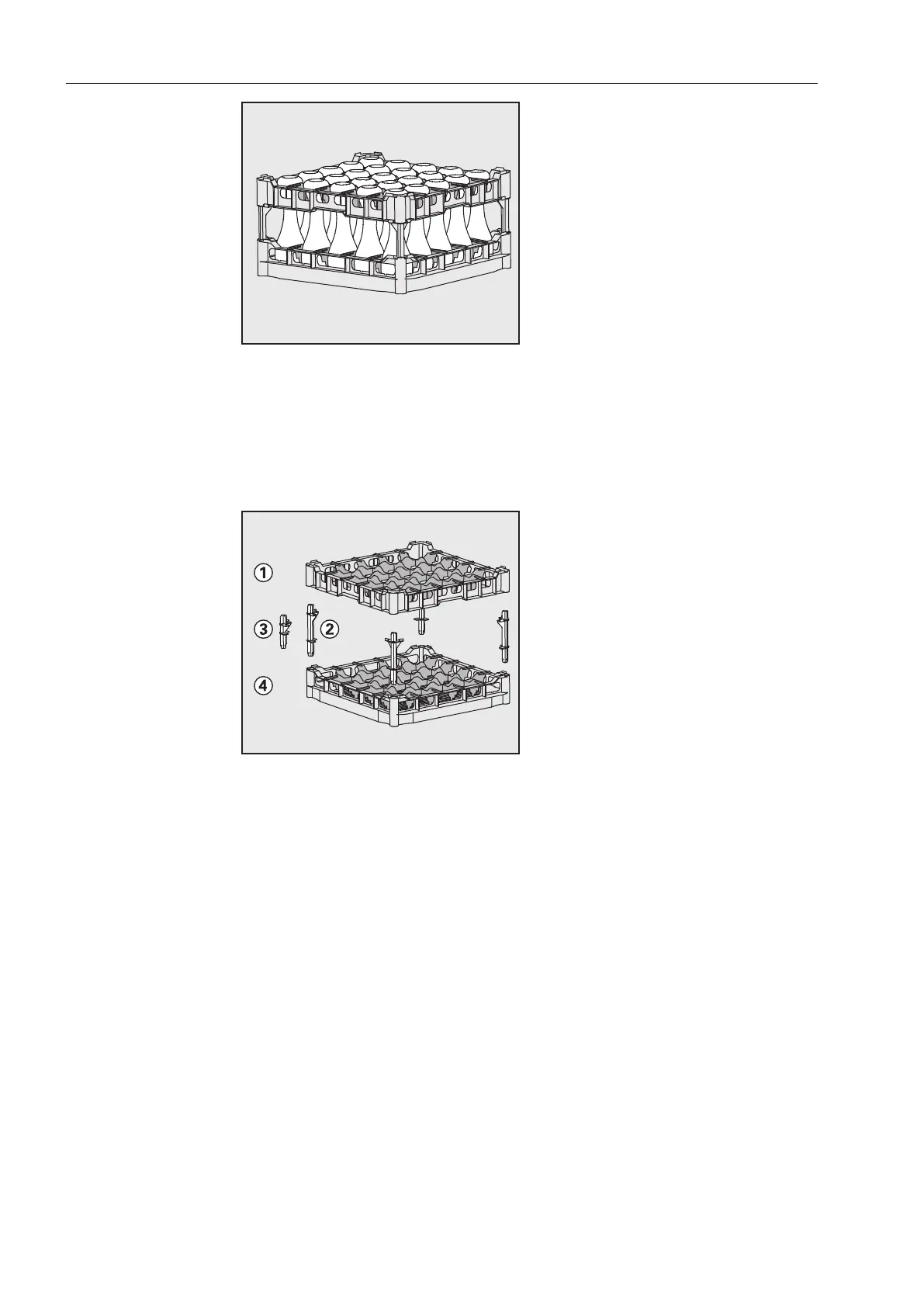

U534–U537 plastic trays with compartments for different glass heights
In this example, the plastic tray is connected to the top frame by long
extenders.
(For assembly in U876 lower basket carrier only)
Assembling a
plastic tray
The height of the tray can be altered by fitting a top frame to the
base basket with long or short extenders.
Push all four extenders into the base basket.
Press the top frame securely onto the extenders.
