Miele PWM 507 User Manual

Installation
68
Installation surface
A concrete floor is the most suitable in-
stallation surface, being far less prone
to vibration during the spin cycle than
wooden floorboards or a carpeted sur-
face.
 The machine must be level and se-
curely positioned.
 To avoid vibrations during spinning,
the machine should not be installed
on soft floor coverings.
If installing on a wooden joist floor:
 Install the machine on a plywood
base (at least 70x60x3cm). The
base should span several joists and
be bolted to the joists and not only to
the floorboards.
Tip: If possible, install the machine in a
corner of the room. This is usually the
most stable part of the floor.

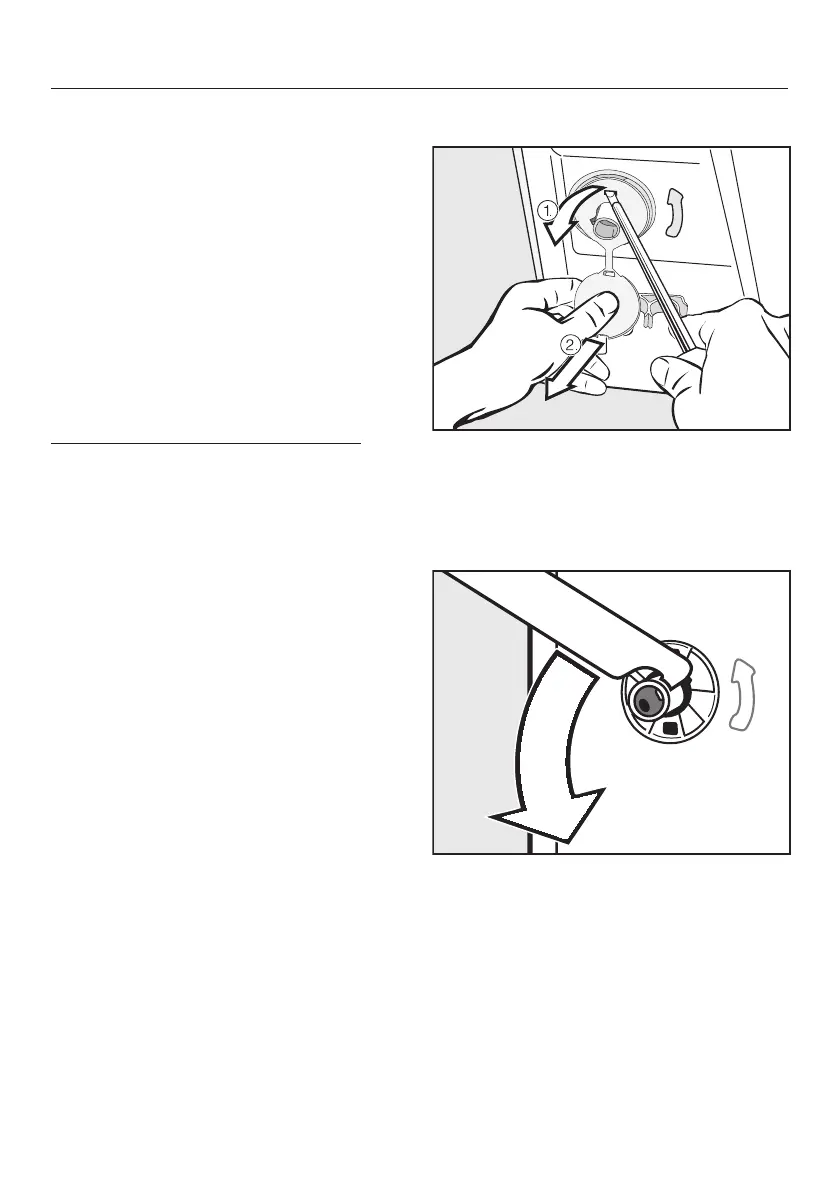

Removing the transit bars
 Remove the left and right caps.
1. Pull on the secured cap stoppers
2. and use a screwdriver to release the
catches at the top and bottom.
 Using the spanner supplied, turn the
left-hand transit bar 90°.

Miele PWM 507 Specifications

General

Drum capacity	7 kg
Delay start (max)	24 h
Spin-drying class	A
Maximum spin speed	1600 RPM
Noise level (spin)	72 dB
Noise level (wash)	- dB
Delayed start timer	Yes
Number of washing programs	-
Current	16 A
AC input voltage	400 V
AC input frequency	50 Hz
Energy efficiency scale	A to G
Water consumption per cycle	37 L
Energy consumption washing per cycle	- kWh
Door hinge	Right
Water fill	Cold, Hot
Drum volume	64 L
Control type	Rotary
Loading type	Front-load
Product color	White
Door opening angle	167 °
Appliance placement	Freestanding
Package weight	104000 g

Weight and Dimensions

Depth	714 mm
Width	605 mm
Height	850 mm
Weight	100000 g
Door diameter	300 mm
