Technical Information
W1900 Series Clothes Washers
Remove the two Struts and Support Plate Assembly.

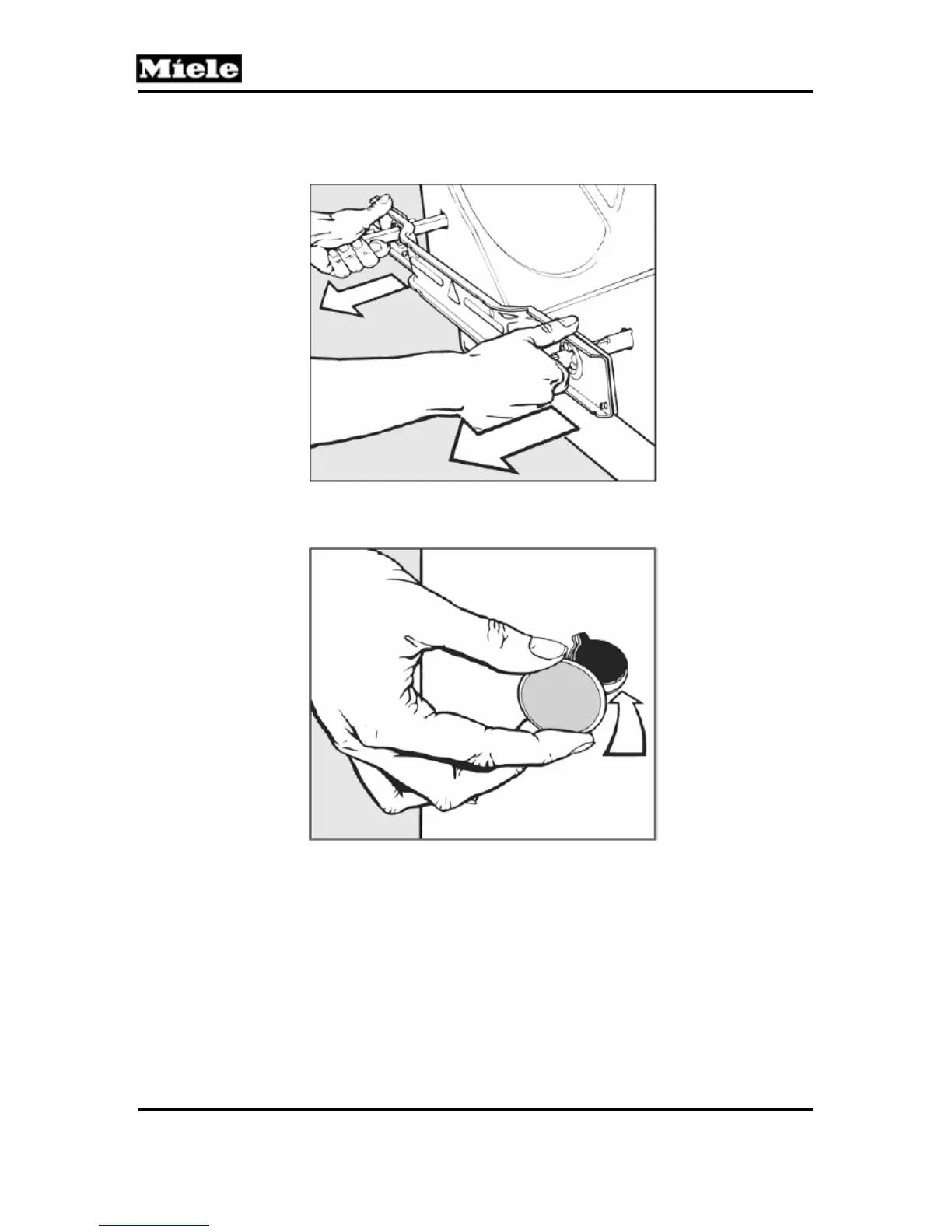

Figure 2-3: Removing the Strut Support Assembly
Figure 2-4: Plugging the Shipping Strut Holes
20
