W1900 Series Clothes Washers
5.10 Main Motor – Carbon Brush Replacement
1. Open the Service Panel – Refer to Section 5.3.
2. Unscrew the Plastic Motor Cover.

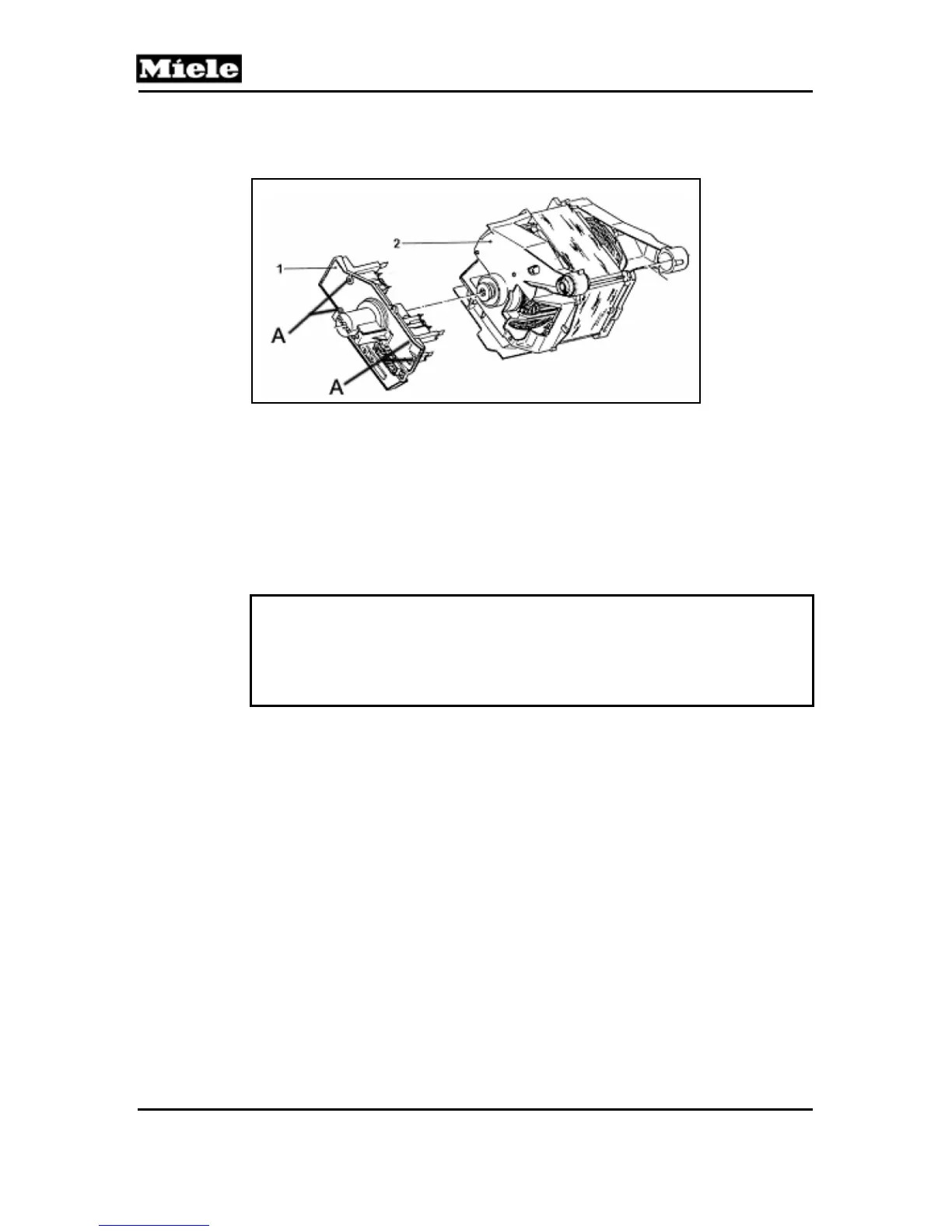

3. Remove 4 screws from the Brush/Tachogenerator Module (A).
4. Pull module (Item 1) away from motor to remove.
Should the Tachogenerator or Overheat Protection Device require
replacement, the entire module is replaced as a single component. Motor
Brushes should always be replaced as a set (2 brushes).
Service Tip:
Before installing the module, press the brushes into their guides (they will
be held by a retaining clip). Once the module is secured to the motor,
release the brushes by pushing the brushes from behind with a small
screwdriver or other suitable tool.
