Miele W1903 - Drain Pump - Replacement

Technical Information
W1900 Series Clothes Washers
5.9 Drain Pump – Replacement
1. Open the Front Service Panel – Refer to Section 5.3.
2. Manually drain all remaining water – Refer to Section 5.8.
3. Remove the filter – Refer to Section 5.8.
4. Disconnect the Electrical Connection on the Pump.
5. Refer to Figure 5-6. Release and slide the red catch (item 1) in the
direction of the arrow and remove.
6. Twist the pump 900 to remove.

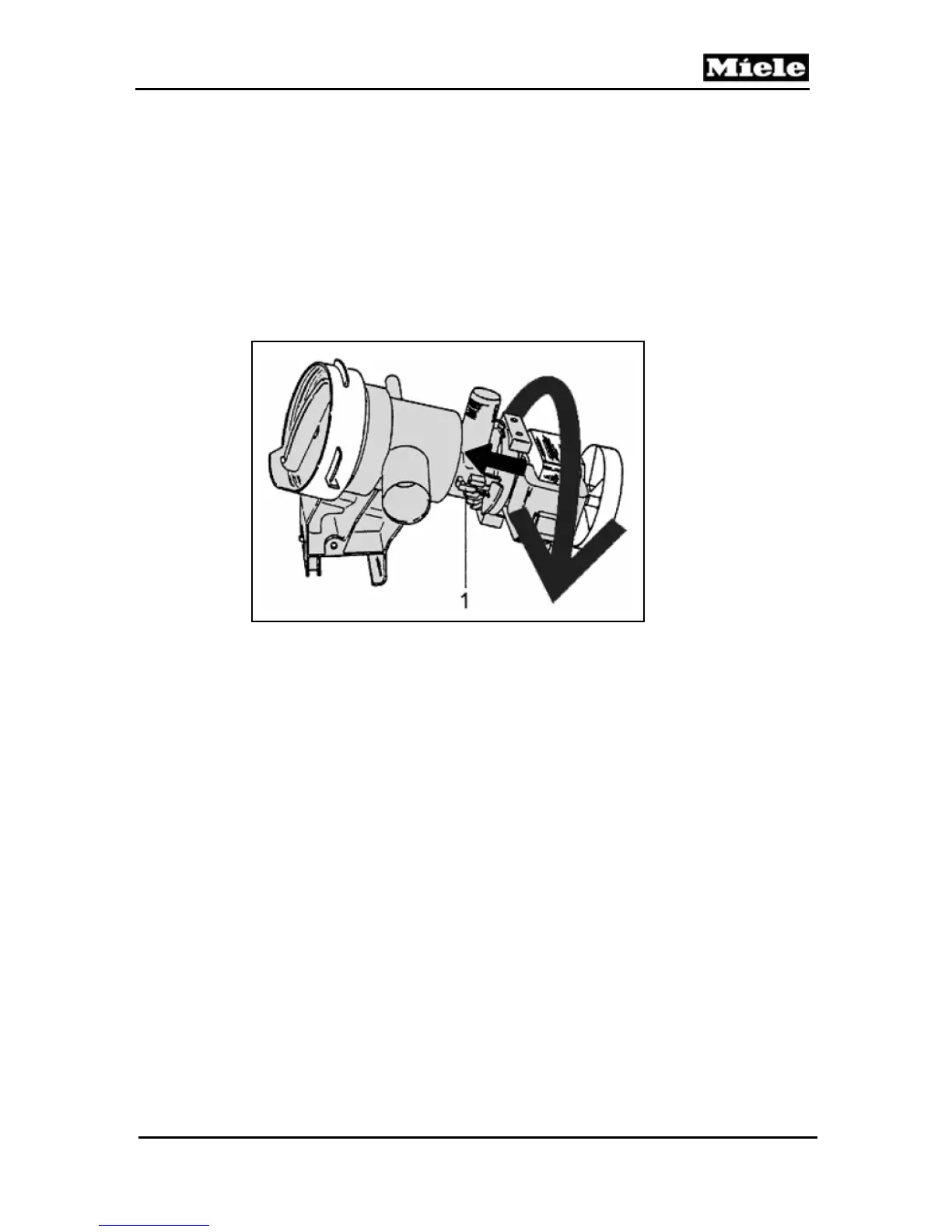

Figure 5-6: Drain Pump Removal
41
