Technical Information
W1900 Series Clothes Washers
1.0 Construction and Design
1.1 Appliance Overview
1 Supply Cable 5 Control Panel
2 High Pressure Intake Hoses 6 Drum Door
3 Flexible Drain Hose, With Detachable 7 Access Panel for Lint Filter and
Swivel Elbow Drain Pump
4 Detergent Dispenser Drawer 8 Four Height Adjustable Legs

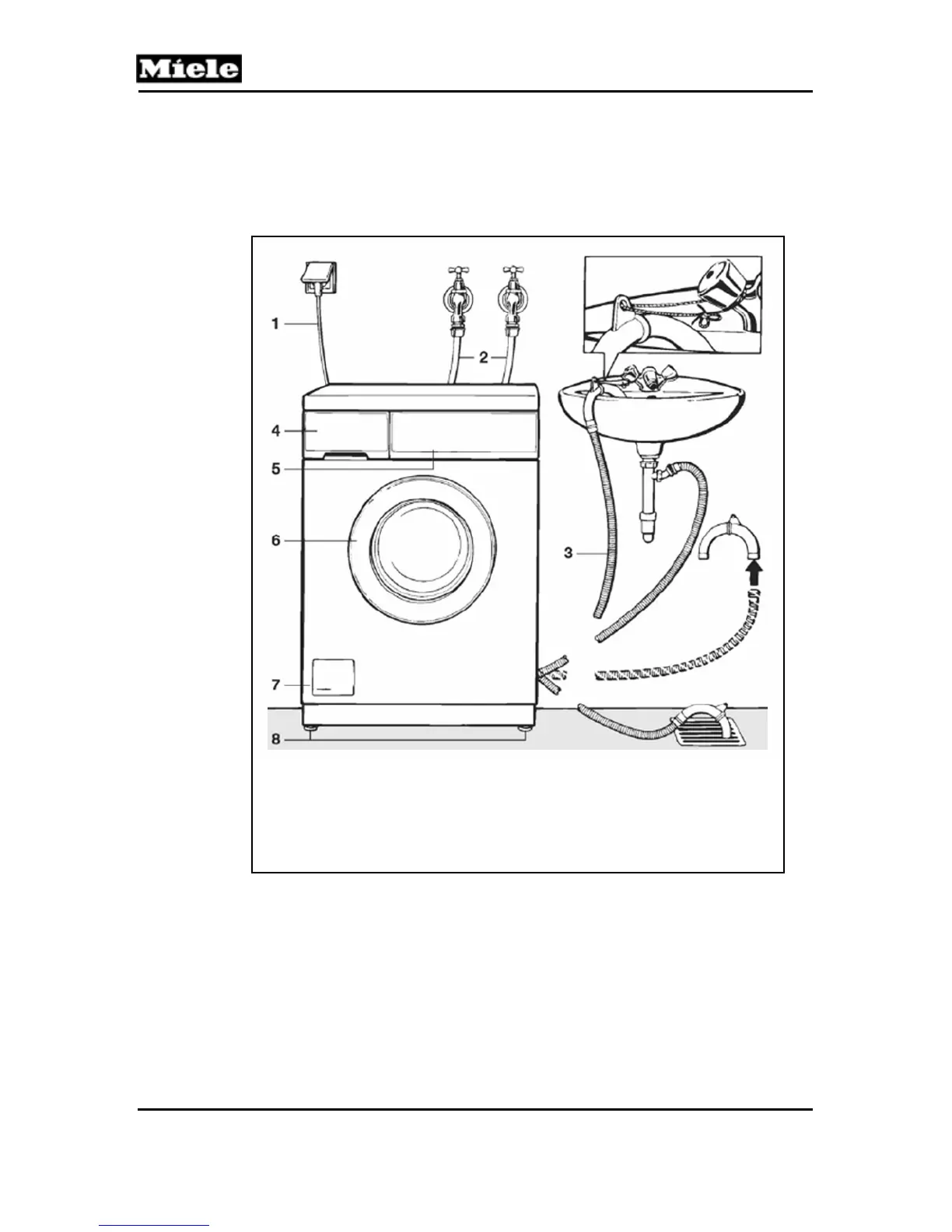

Figure 1-1: Appliance Overview (Typical W1900 Series Washer)
6
