Miele W1903 - Imbalance Monitoring

Technical Information
W1900 Series Clothes Washers
4.16 Imbalance Monitoring
Range 1 0-0.7 kg No reduction in spin speed.
Range 2 0.7-1.1 kg
If imbalance exists after 3 attempts to
redistribute the load then the spin speed is
limited to 2
nd
highest value (exact rpm varies
by model number)
Range 3 1.1-2.0 kg
If imbalance exists after 3 attempts to
redistribute the load then the spin speed is
limited to 3
rd
highest value (exact rpm varies by
model number)
Range 4 > 2 kg
Load distribution attempts continually made
until imbalance is reduced or the program time
has completed.

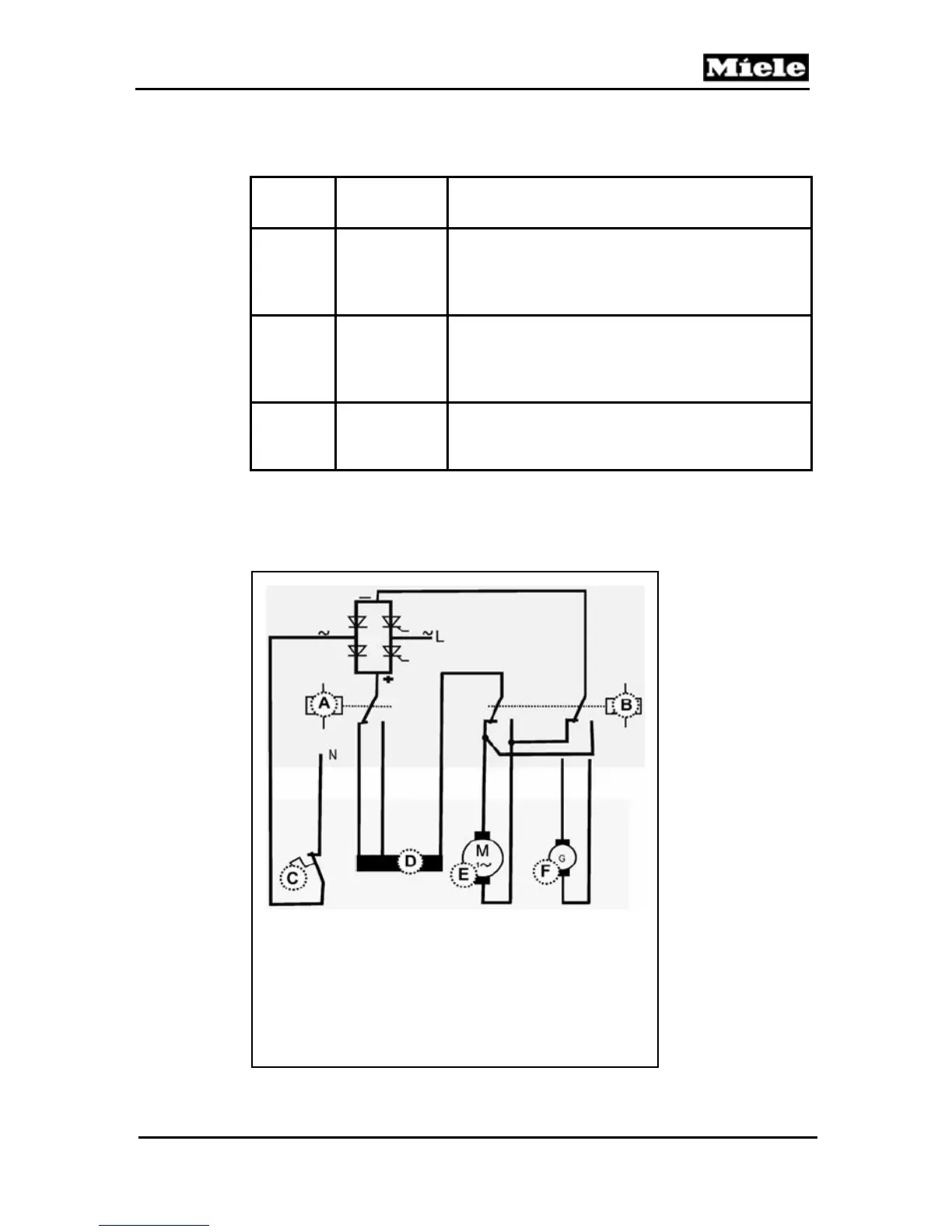

Table 4-2: Imbalance Monitoring
4.17 Motor Circuit
A Change Field Relay (spin/ wash actuation)
B Motor Direction Relay
C Temperature Limiter
D Field Windings
E Rotor Windings
F Tachogenerator
Figure 4-7: Motor Circuit
33
