OM-243 347 Page 40
245 243-B
. Hardware is common and
not available unless listed.
1
2
3
7
7
8
10
11
9
5
4
12
13
14
15
16
17
19
20
21
22
23
24
25
26
27
28
29
30
6
14
18
32
31
31

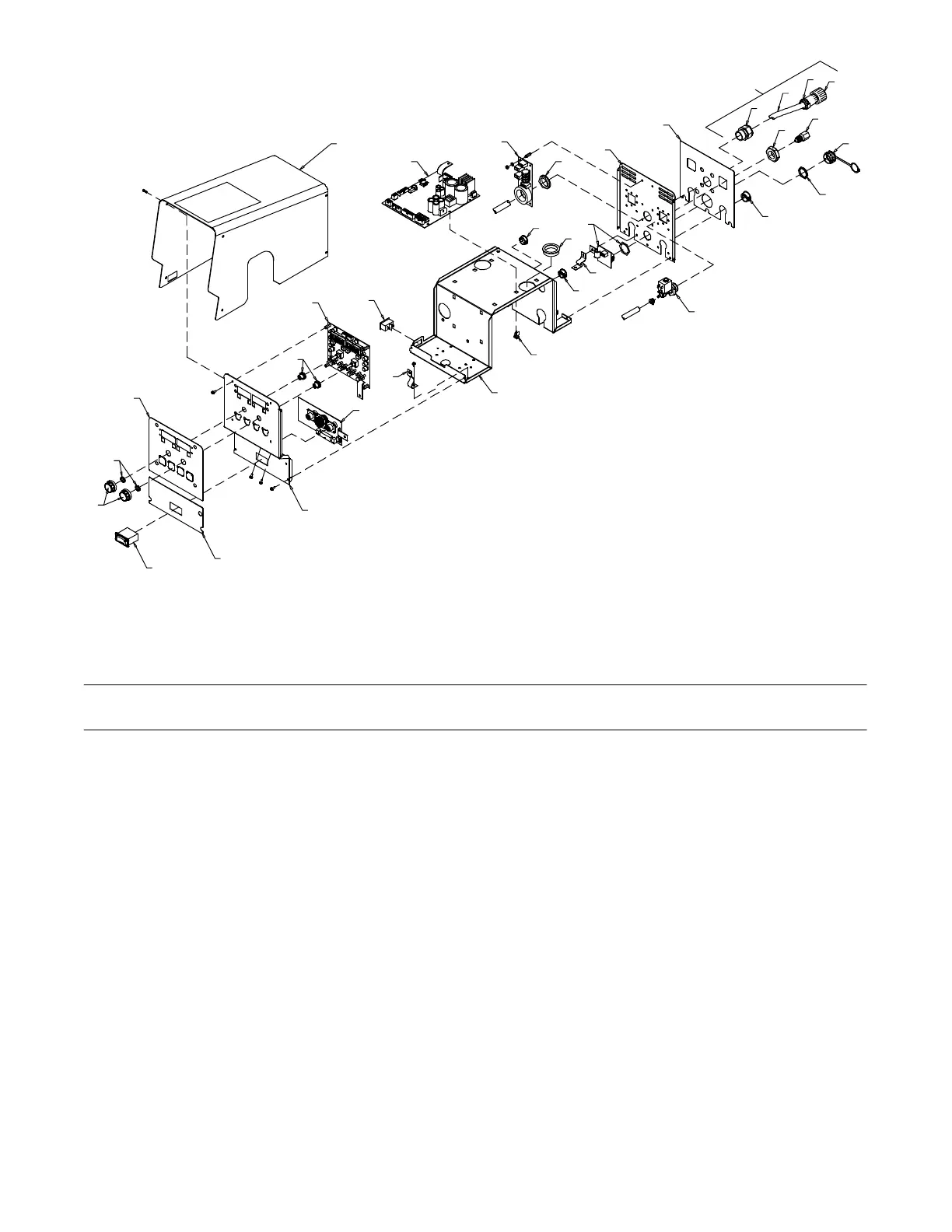

Figure 11-2. Control Box
Description
Part
No.
Dia.
Mkgs.
Item
No.
Figure 11-2. Control Box (Figure 11-1 Item 22)
Quantity
1 204 722 Wrapper, Feeder 1... ............... .. ...............................................
2 PC1 242 217 Circuit Card Assy, Motor Control W/Prgm 1... .... ..... .. .........................
3 PC5 244 200 Circuit Card Assy, 14 Pin Filter 1... .... ..... .. ...................................
4 243 079 Panel, Rear Feeder 1... ............... .. ............................................
5 244 198 Nameplate, Rear 1... ............... .. ...............................................
6 244 581 Cable, Power (Includes) 1... ............... .. ........................................
7 139 041 Bushing, Strain Relief .450/.709 Id X1.115 Mtg Hole 1... ............... .... ..............
8 163 520 Cable, Port No 18−14 11/C Type Awm 2−14 9−18 Cndct 1... ............... .... ..........
9 079 739 Conn, Circ Cpc Clamp Str Rlf 1... ............... .... ..................................
10 PLG12 141 162 Housing Plug+Pins, (Service Kit) 1... ... .... .... ...............................
PLG74 115 092 Housing Plug+Skts, (Service Kit) 1......... .... .... ...............................
11 220 805 Nut, 750−14 Nps 1.48Hex .41H Nyl 2... ............... .. ...............................
12 211 989 Fitting, W/Screen 2... ............... .. ..............................................
13 244 618 Cover, Connector USB W/Tether 1... ............... .. .................................
14 PC4 244 191 Circuit Card Assy, USB Filter 1... .... ..... .. ....................................
15 030 170 Bushing,Snap−in Nyl .750 Id X 1.000 Mtg Hole 4... ............... .. .....................
16 GS1 228 036 Valve, 24VAC 1Way .750−14 Thd 2.0mm Orf 100 psi 2... .... ..... .. ...............
17 010 494 Bushing, Snap−in Nyl 1.375 Id X 1.750 Mtg Hole 3... ............... .. ...................
18 000 527 Blank, Snap−in Nyl .875 Mtg Hole Black 1... ............... .. ..........................
19 134 201 Stand−Off Support, PC Card .312/.375w/Post&lock .43 6... ............... .. .............
20 243 080 Enclosure, Feeder 1... ............... .. .............................................
21 S1 111 997 Switch, Rocker Spst 10A 250VAC On-Off Visi Red Rock 1... ..... ...... .. ............
22 PC2 242 228 Circuit Card Assy, User Interface W/Prgm 1... .... ..... .. .........................
23 PC8 244 170 Circuit Card Assy, Trigger Filter 1... .... ..... .. ..................................
