OM-243 347 Page 42
See Table 11-1 For
Drive Roll & Wire Guide Kits
. Hardware is common and
not available unless listed.
245 244-A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
20
12
15
16
17
18
19
20
21
22
23
24
6
5
4
3
2
1
36
35
34
33
32
31
30
29
28
25
26
27
37
38
39

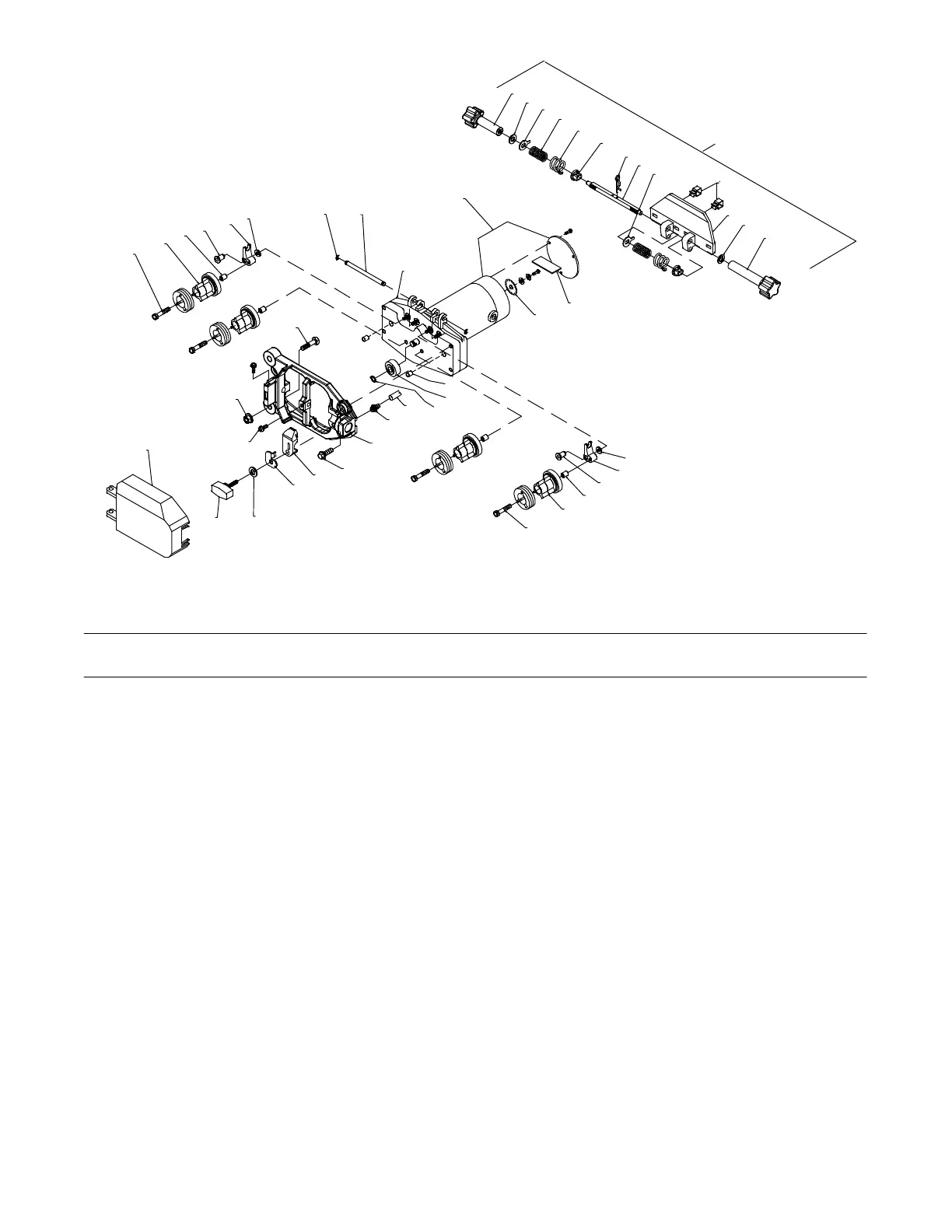

Figure 11-3. Drive Assembly, Wire
Description
Part
No.
Dia.
Mkgs.
Item
No.
Figure 11-3. Drive Assembly, Wire (Figure 11-1 Item 4)
Quantity
1 010 668 Screw, Cap Stl Sch .250-20 X 1.500 4... ............... .. ...............................
2 172 075 Carrier, Drive Roll W/Components 4... ............... .. .................................
3 149 962 Spacer, Carrier Drive Roll 4... ............... .. ........................................
4 149 486 Pin, Rotation Arm Rocker 2... ............... .. ........................................
5 244 584 Arm, Pressure LH Chamfered 2... ............... .. ....................................
6 150 520 Spacer, Flat Stl .257 Id X .619 Od X .105 2... ............... .. ..........................
7 133 493 Ring, Retaining Ext .250 Shaft X .025Thk 2... ............... .. ..........................
8 133 350 Pin, Hinge 1... ............... .. .....................................................
9 M1,101 201 230 Motor, Gear 1/8HP 24VDC Standard Speed 1... .. ..... .. ........................
153 491 Kit, Brush Replacement (Includes) 1..................... .... ...............................
153 492 Cap, Brush 2..................... ..... .................................................
*153 493 Brush, Carbon 2.................... ..... ..............................................
184 136 Kit, Brush Holder Replacement 1..................... .... ..................................
10 155 098 Kit, Cover Motor Gearbox (Includes) 1... ............... .. ...............................
153 550 Cover, Motor Gearbox (Includes) 1..................... .... ................................
155 099 Gasket, Cover 1..................... ..... ..............................................
155 100 Screw, Cover 5..................... ..... ...............................................
154 031 Spacer, Locating 2..................... .... ..............................................
133 493 Ring, Rtng Ext .250 Shaft Grv X .025Thk 1..................... .... .........................
11 203 642 Pressure Arm, R & Vert L 4 Roll (Includes) 1... ............... .. .........................
11 203 631 Pressure Arm, S/L & Vert S/R 4 Roll (Includes) 1... ............... .. .....................
12 203 641 Washer, Flat Indicator Spring Tension 2... ............... .... ............................
13 182 415 Pin, Cotter Hair 1... ............... .... ...............................................
14 203 640 Knob, W/Extension Short Pressure Arm 1... ............... .... ..........................
To Next Page
