Miller Digital Elite Series User Manual

OM-256476 Page 13

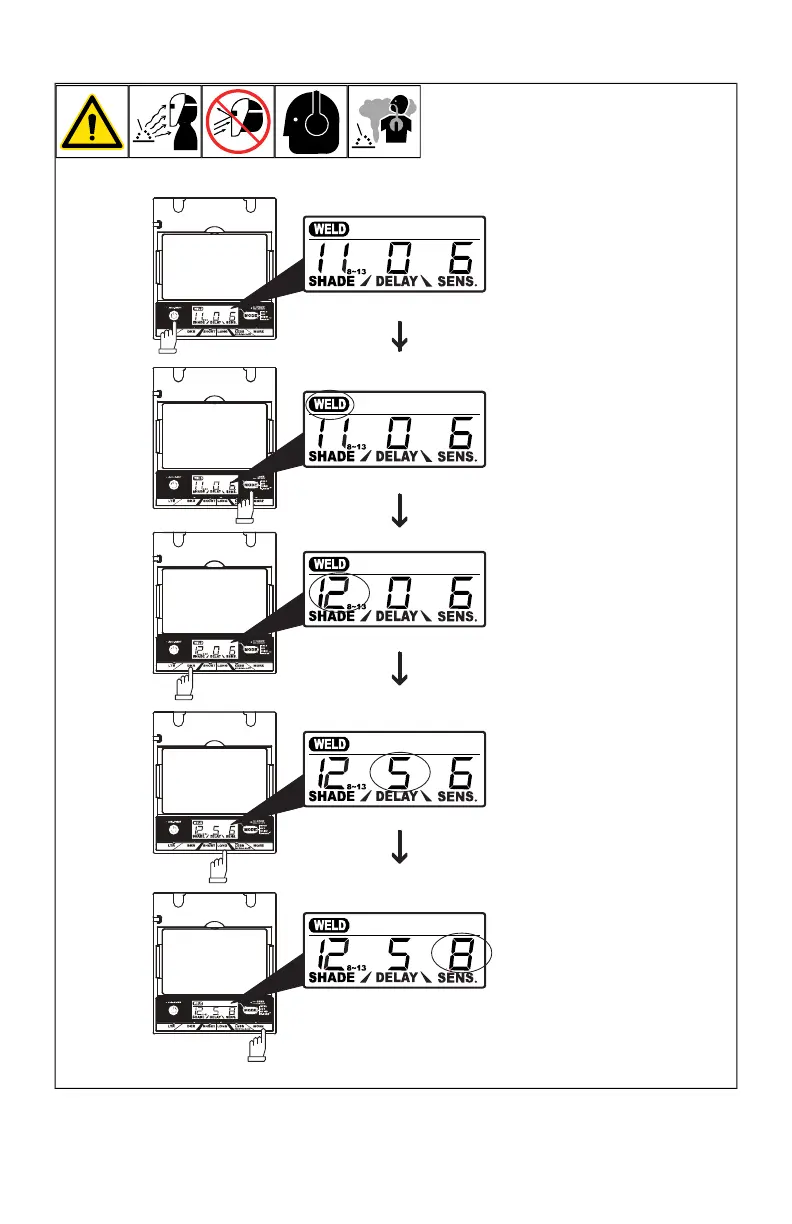

4-7. Typical Lens Adjustment Procedure
OM-256476 Page 1
1-1. Typical Lens Adjustment Procedure
F
Lens assembly displays
prior settings when
turned On. Retained set-
tings are not shown in
example.
F
In the Grind mode the
lens is a fixed shade No.
3. No lens adjustments
are possible.
F
X-Mode is not present
on Performance
helmets.
Adjusting Lens Assembly
l Turn lens On. Display
screen appears.
l Select mode (Weld, Cut,
Grind, X-Mode).
l Select shade by pressing
LTR and DKR buttons.
l Select Delay by pressing
Short and Long buttons.
l Select Sensitivity by
pressing Less and More
Buttons.
l Begin work.

Miller Digital Elite Series Specifications

General

Shade Range	5-13
Product Type	Welding Helmet
Welding Processes	MIG, TIG, Stick
Sensors	4
Power Source	Battery
Battery Type	Lithium
Weight	18 oz (510 g)
