OM-256476 Page 9
4-3. Mode Control
OM-256476 Page 1


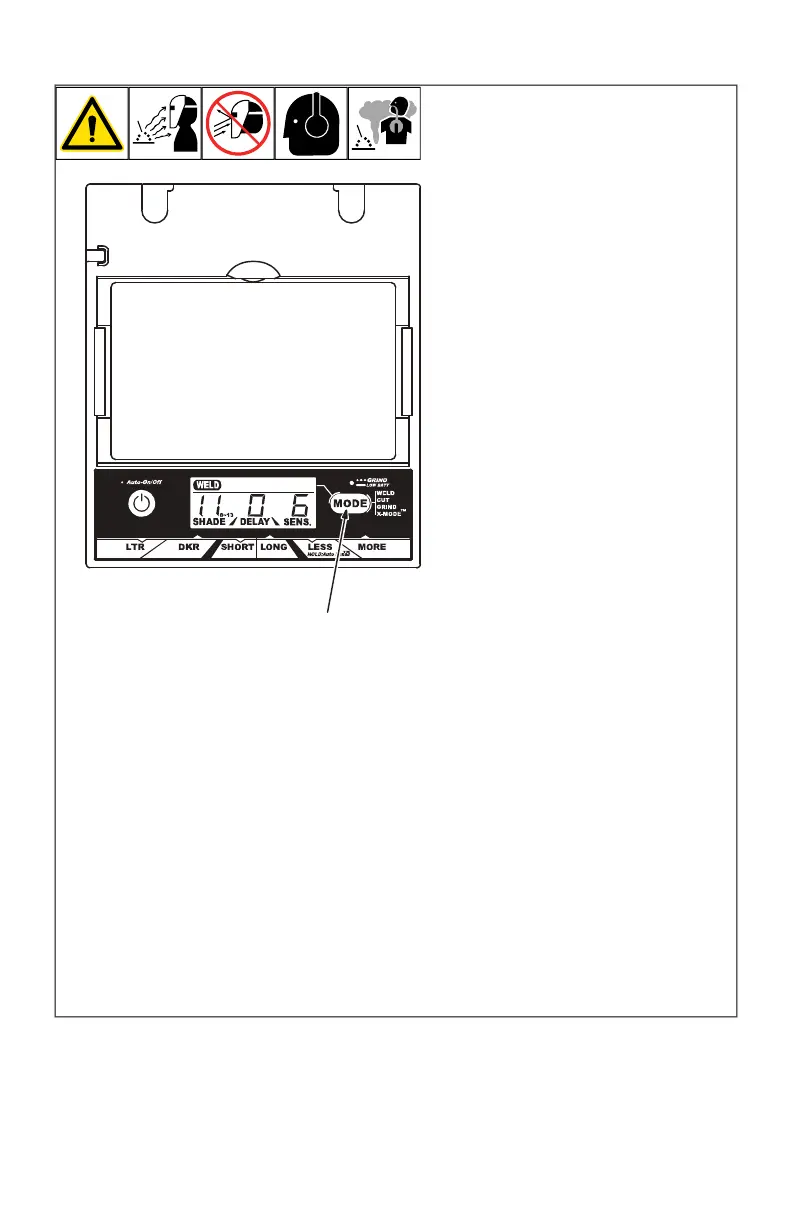

A Digital Elite lens is shown.
1 Mode Control Button
Press Mode button to select the mode
appropriate
for the work activity:
Weld Mode used for most welding
applications. In this mode the lens
turns on when it optically senses a
welding arc. Adjust shade, sensitivity,
and delay settings as needed.
Cut Mode used for cutting applica-
tions. In this mode the lens turns on
when it optically senses a cutting arc.
Adjust shade, sensitivity, and delay
settings as needed.
Grind Mode used for metal grinding
applications. In this mode the shade is
fixed shade No. 3. No lens adjust-
ments are possible.
X-Mode used for outdoor or low cur-
rent welding applications. In this mode
the lens turns on when it senses weld
current. Adjust shade, sensitivity, and
delay settings as needed.

X-Mode is not present on Perfor-
mance helmets.

Nearby welding may affect helmet
operation when lens is in X-Mode.
Stay at least 12 ft (3.7 m) away
from other welding activity.
1
1-1. Mode Control
F
A Digital Elite lens is
shown.
1 Mode Control
Press Mode button to select
the mode appropriate for the
work activity:
Weld Mode- used for most
welding applications. In this
mode the lens turns on when
it optically senses a welding
arc. Adjust shade, sensitivity,
and delay settings as needed.
Cut Mode- used for cutting
applications. In this mode the
lens turns on when it optically
senses a cutting arc. Adjust
shade, sensitivity, and delay
settings as needed.
Grind Mode- used for metal
grinding applications. In this
mode the shade is fixed
shade No. 3. No lens adjust-
ments are possible.
X-Mode - used for outdoor or
low current welding applica-
tions. In this mode the lens
turns on when it senses weld
current. Adjust shade, sensi-
tivity, and delay settings as
needed.
F
X-Mode is not present
on Performance
helmets.
F
Nearby welding may af-
fect helmet operation
when lens is in X-Mode.
Stay at least 12 ft (3.7
m) away from other
welding activity.
