4-4. Variable Shade Control
OM-256476 Page 1

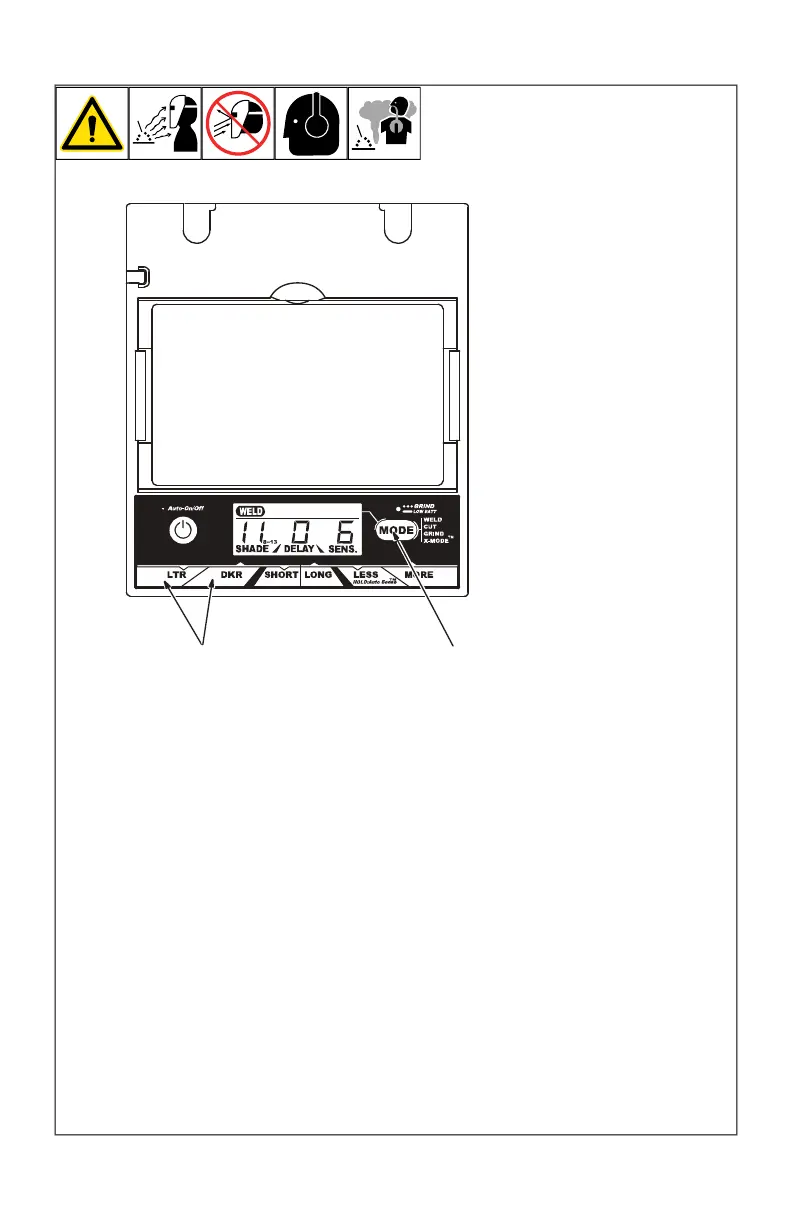

A Digital Elite lens is
shown.
1 Variable Shade
Adjustment Buttons
2 Mode Control Button
Use the LTR and DKR ad-
justment buttons to adjust
the lens shade in the dark-
ened state. Use the table in
Section NO TAG to select
proper shade control setting
based on your welding pro-
cess. The shade ranges for
each mode are as follows:
Weld No. 8–No. 13
Cut No 5–No 8
Grind No. 3 only
X-Mode No. 8–No. 13
Start at the highest setting
and adjust lighter to suit the
application
and your person-
al preference.
Variable Shade Adjust-
ment Procedure
Press Auto On/Off but-
ton to turn lens On
Press Mode Control
Button to select desired
function: Weld, Cut,
Grind, or X-Mode.
X-Mode is not present on
Performance helmets.
Use LTR and DKR ad-
justment buttons to
select desired shade.
Begin welding or contin-
ue with other lens
adjustments.
21
1-1. Variable Shade Control
F
A Digital Elite lens is
shown.
1 Variable Shade Adjust-
ment Buttons
2 Mode Control Button
Use the LTR and DKR adjust-
ment buttons to adjust the
lens shade in the darkened
state. Use the table in Section
1-4 to select proper shade
control setting based on your
welding process. The shade
ranges for each mode are as
follows:
Weld- No. 8–No. 13
Cut - No. 5–No. 8
Grind - No. 3 only
X-Mode - No. 8–No. 13 sensi-
tivity, and delay settings as
needed.
Start at the highest setting
and adjust lighter to suit the
application and your personal
preference.
Variable Shade Adjustment
Procedure
l Press Auto On/Off button
to turn lens On.
l Press Mode Control But-
ton to select desired func-
tion: Weld, Cut, Grind, or
X-Mode.
F
X-Mode is not present
on Performance
helmets.
l Use LTR and DKR adjust-
ment buttons to select de-
sired shade.
l Begin welding or continue
with other lens
adjustments.
