OM-256476 Page 19
SECTION 8 – INSTALLING OPTIONAL
MAGNIFYING LENS

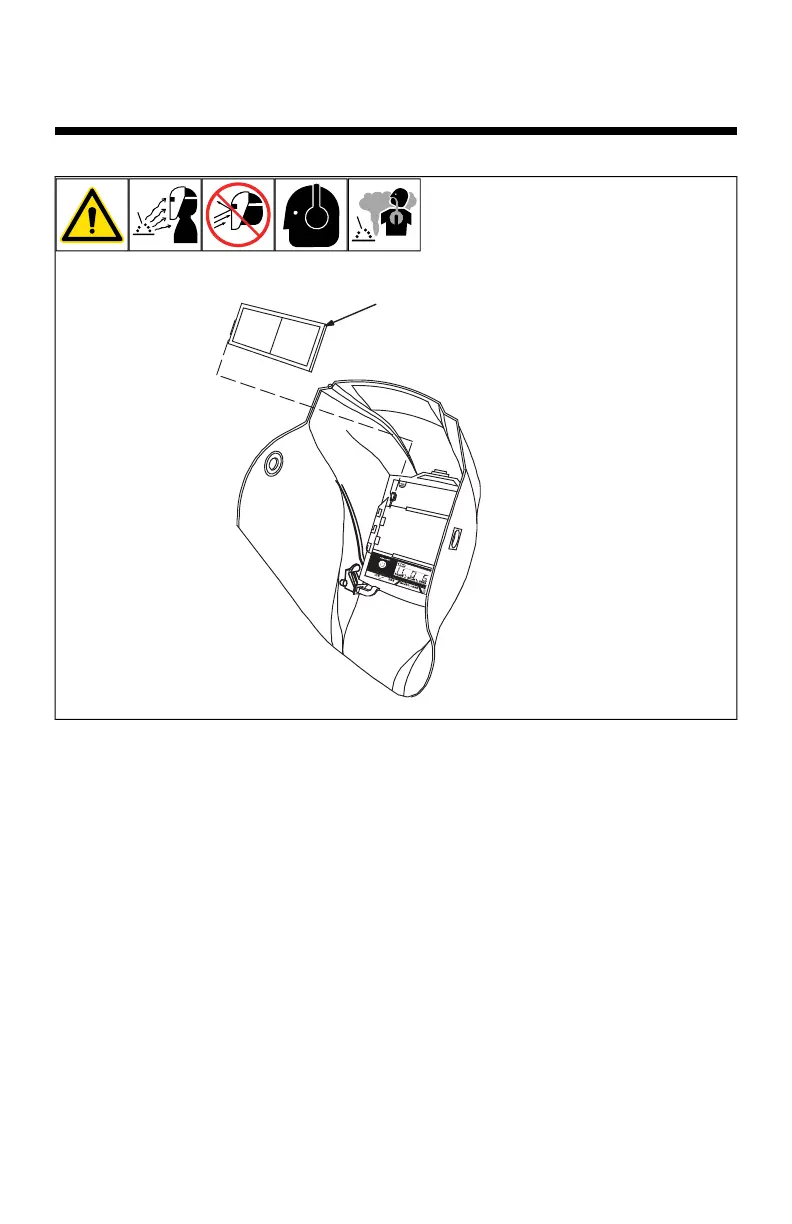

8-1. Installing Optional Magnifying Lens
1 Optional Magnifying Lens
Starting at the top, slide mag-
nifying lens into the helmet re-
taining brackets. Align the
magnifying lens with the auto-
darkening lens assembly.
Reverse procedure to remove
magnifying lens.
F
To prevent lens fogging,
install flat side of magni-
fying lens toward auto-
darkening lens.
