Miller MSW-41 - Power Transformer Parts

TM-716 Page 26 MSW And LMSW Series
Replace Coils At Factory Or Factory Authorized Service Station.
Description
Part
No.
Item
No.
Figure 9-2. Transformer, Power Main (Figure 9-1 Item 38)
095 345 095 350 095 354
Quantity
Model
41,41T 42,42T 52,52T
036 825 036 950 036 826
1 026 601 INSULATION 1 1... ....... .. .............................................. ....
1 026 602 INSULATION 1... ....... .. ...........................................................
2 033 610 COIL, pri 115V (Prior ro JE35) 1... ....... .. ................................
2 095 312 COIL, pri 115V (Eff w/JE35) 1... ....... .. ..................................
2 033 611 COIL, pri 230V (Prior to JE35) 1... ....... .. .......................................
2 095 309 COIL, pri 230V (Eff w/JE35) 1... ....... .. .........................................
2 033 612 COIL, pri 230V (Prior to JE35) 1... ....... .. .............................................
2 095 308 COIL, pri 230V (Eff w/JE35) 1... ....... .. ...............................................
3 010 157 STUD, stl No. 10-32 x 8.125 4 4... ....... .. ................................. ....
3 010 156 STUD, stl No. 10-32 x 11.125 4... ....... .. .............................................
4 137 943 NUT, core stud 4 4 4... ....... .. ............................................. .... ....
5 +033 123 BAR, sec 1 1... ...... .. .................................................. ....
5 +033 122 BAR, sec 1... ...... .. ...............................................................
141 482-A
. Hardware is common and
not available unless listed.
1
2
3
4
5

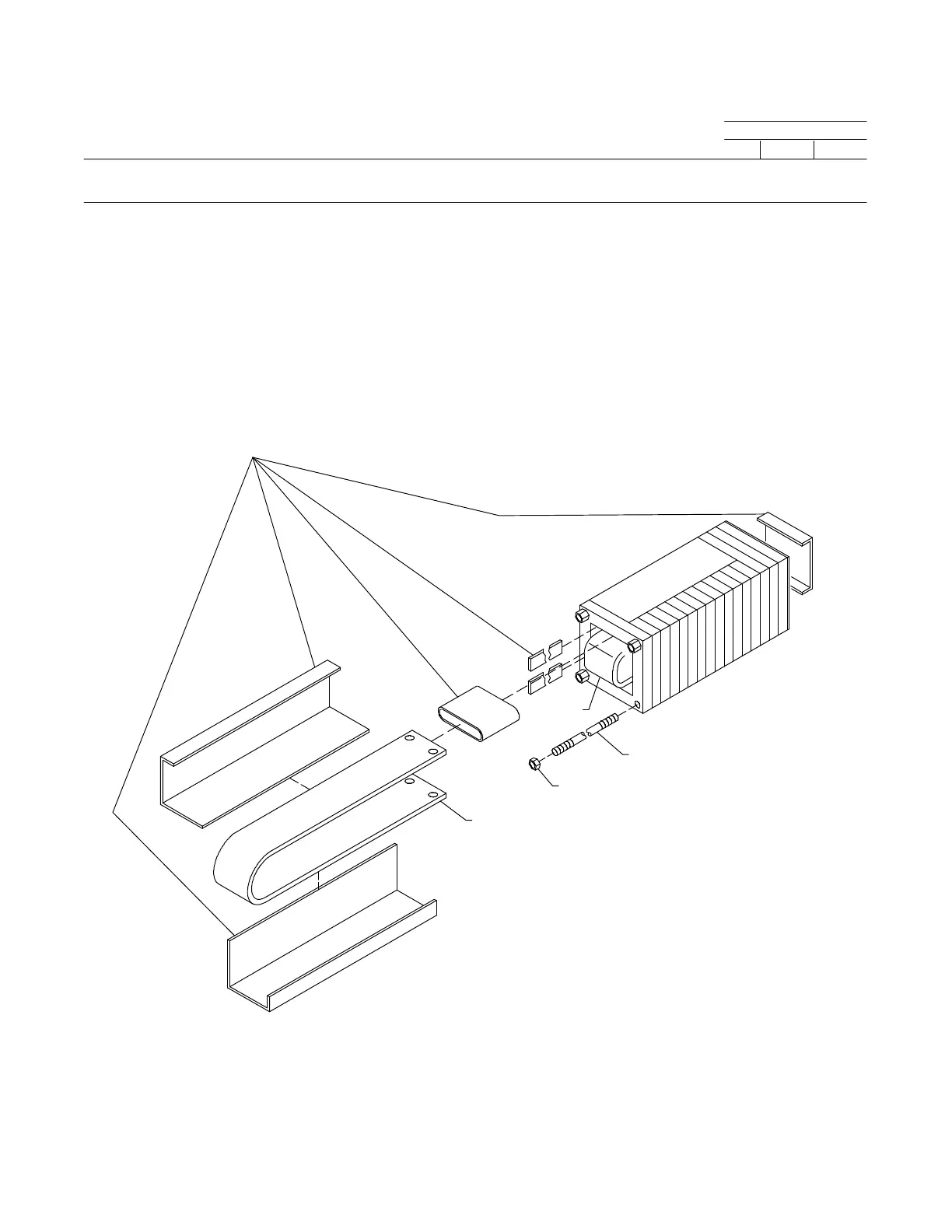

Figure 9-2. Transformer, Power Main
+Item 37 on Figure 9-1 is included when ordering these items as replacement parts.
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and style number required when ordering parts from your local distributor.
