Labscale Tangential Flow Filtration System User Guide 23
L = 20 cm (8 inches) (cut 2)
Fittings: 4 female (2 per length)
FEMALE
FEMALE
L

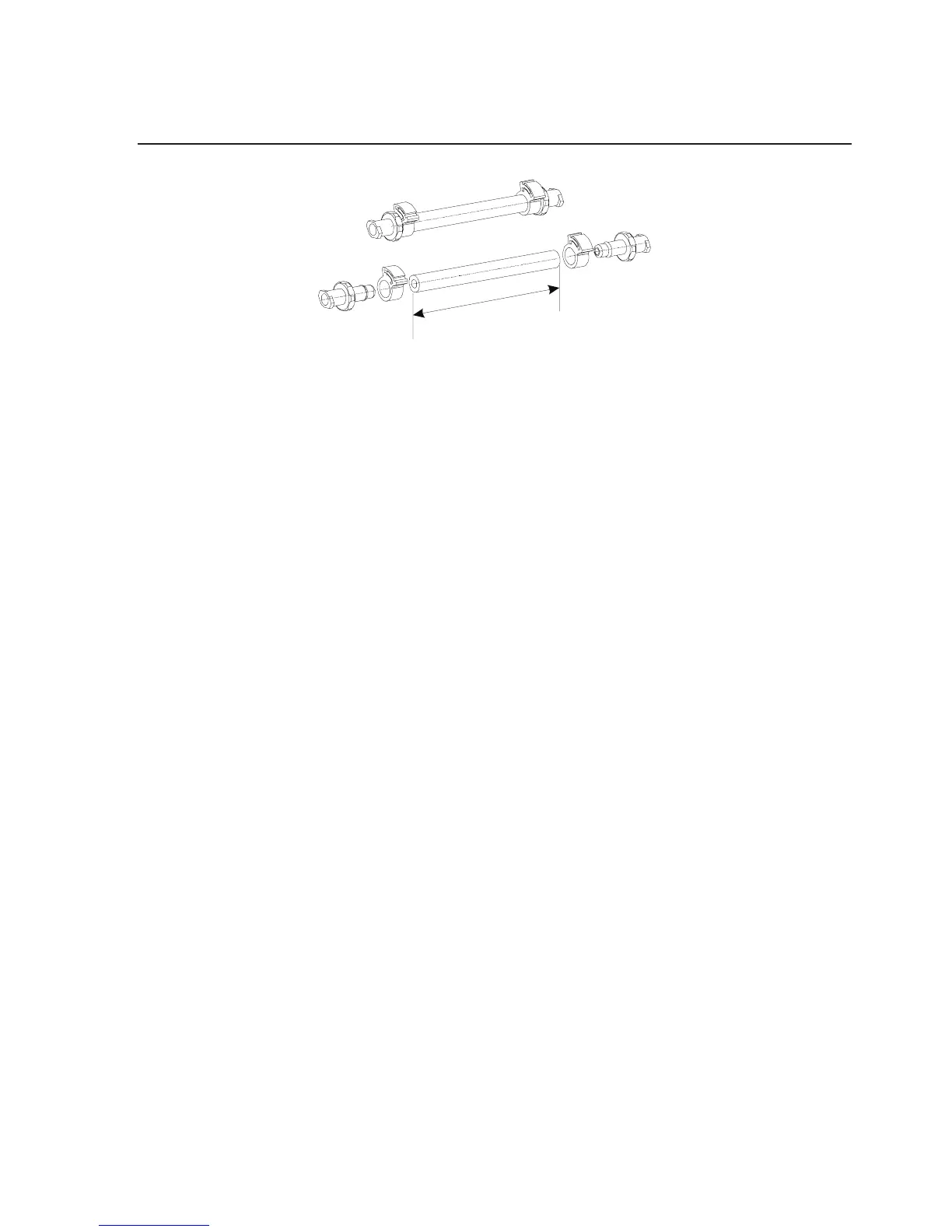

Figure 21: Set-up of pump inlet and outlet tubing, ttings and clamps.
2. Cut one of the two Sta-Pure (white) tubing and install fittings
and clamps as shown in figure 21. Use only one Sta-Pure
(white) tubing for pump outlet. The other Sta-Pure (white)
tubing is used for cleaning.
Install Pump Inlet and Outlet Tubing
1. Insert one female luer end of the silicone (translucent) tubing
over the PUMP INLET port and the other female luer end of
the silicone (translucent) tubing over the Tank Outlet Valve
and turn the lock nut until snug.
2. Insert one female luer end of the Sta-pure (white) tubing over
the PUMP OUTLET port and insert the other female luer end
of the Sta-pure (white) tubing over the Feed Inlet (FEED IN)
port and turn the lock nut until snug.
To Next Page
