Setting the command origin [MODE SET] > [ORIGIN]
Adjust the position of the command origin of the device to the origin of the command origin of your
CAD. Refer to the Instruction Manual for your CAD for the position of the command origin sup-
ported by the CAD.
Set values
LOWER LEFT: The command origin is set to the lower left of the maximum effective cut-
ting area.
CENTER: The command origin is set to the center of the maximum effective cutting
area.

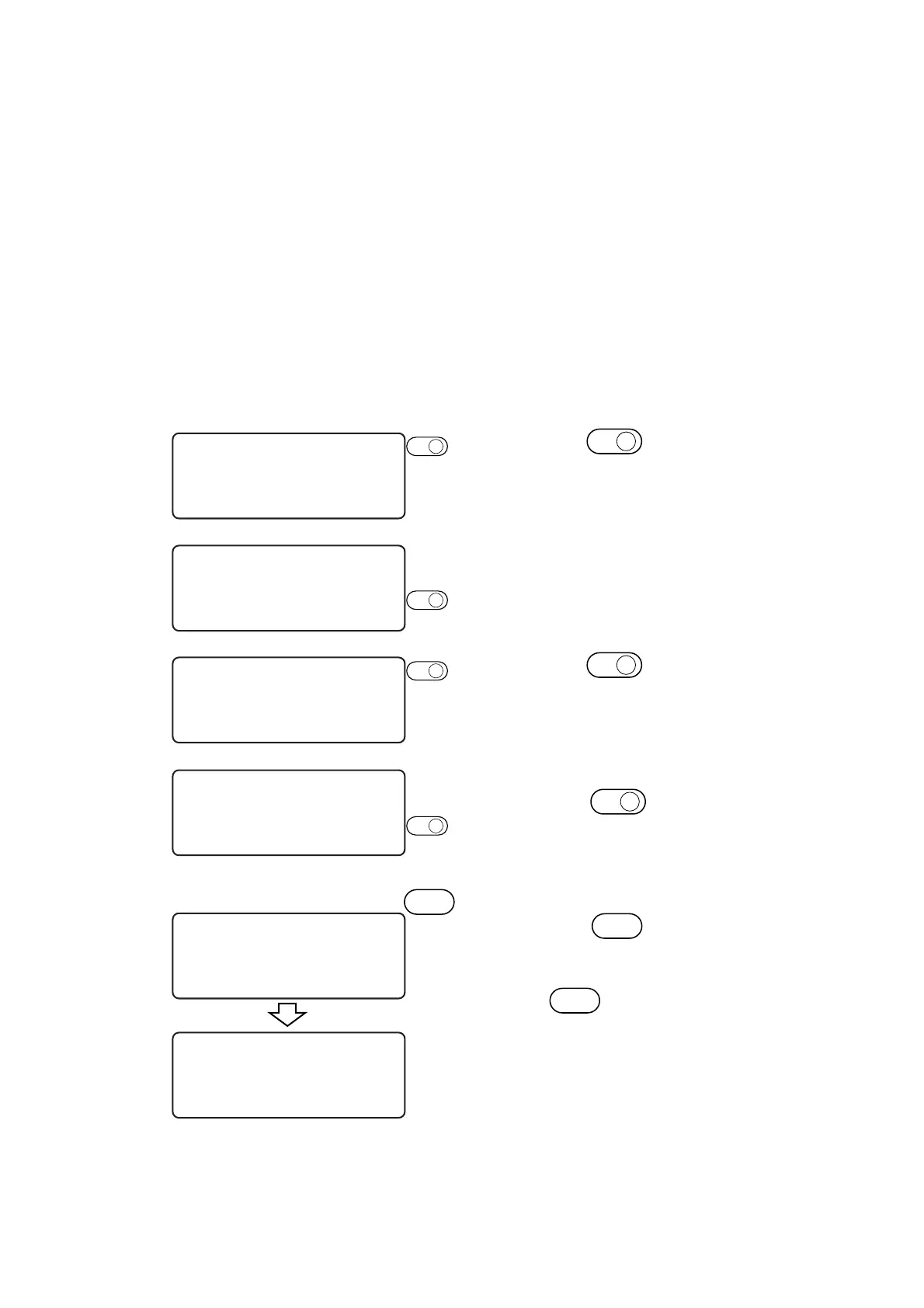

1 Press the
PAGE
+
key several times
until the LCD indicates page 3 of the
LOCAL MENU.
2 Select the [MODE SET].
3 Press the
PAGE
+
key several times
until the LCD indicates page 4 of the
[MODE SET].
4 Set the [ORIGIN].
Press the
F2
+
key to change the se-
lected item alternately.
LWR LEFT, CENTER
5 Enter the input values.
Press the
END
key to enter the input
values.
If you do not enter the input data, press
the
C E
key.
[ LOCAL ] 1 / 4
TOOL SELECT ———>
CONDITION ———>
TEST CUT ———>
[ LOCAL ] 3 / 4
INTERFACE ———>
MODE SET ———>
SELF TEST ———>
< MODE SET > 1 / 5
Z STROKE ∗7mm >
MULTI–PASS ——— >
VACUUM ∗AutoOFF>
< MODE SET > 4 / 5
OH UNIT ∗INIT val >
ORIGIN ∗CENTER >
GDP ∗0.025 mm >
< MODE SET > 4 / 5
OH UNIT ∗INIT val >
ORIGIN ∗LWR LEFT >
GDP ∗0.025 mm >
END
[ LOCAL ] 3 / 4
INTERFACE ———>
MODE SET ———>
SELF TEST ———>
F2
+
PAGE
+
PAGE
+
F2
+
