MIMAKI JV100 - Blowing Fan Filter Replacement

3. Consumable Item Replacement
24
9
Close the front cover, then turn on the power.
• Check to confirm that the carriage returns to the station.

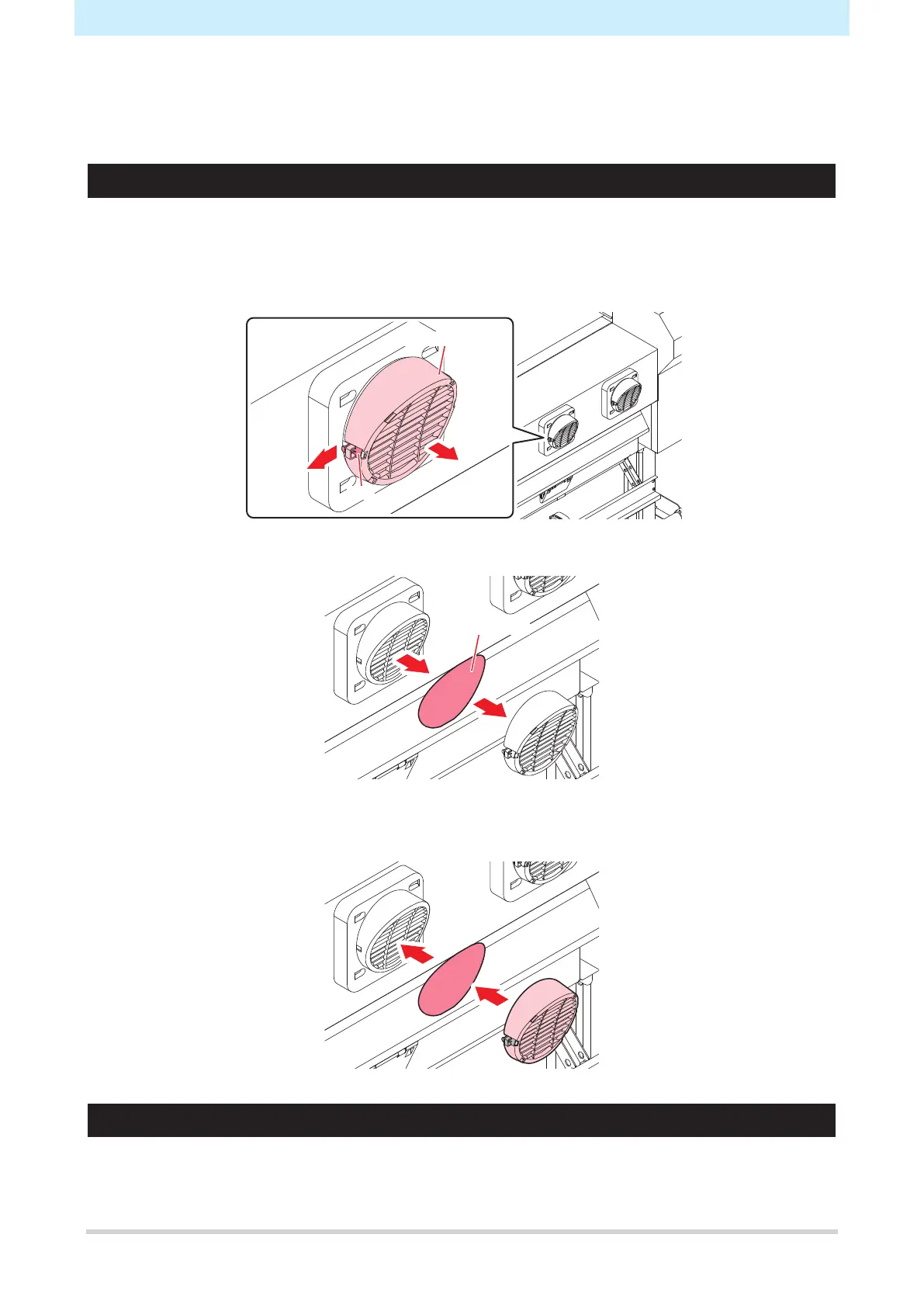

Blowing Fan Filter Replacement
Replace the blowing fan filter if it is dirty.
1
Remove the fan filter cover.
• Push the fan filter cover claw outward, and pull the cover to the front.
Fan filter cover
Claw
2
Remove the filter.
Blowing fan filter
3
Mount a new filter and the fan filter cover.
• Push in the fan filter cover until the tab clicks.
Pinch Roller Replacement
Replace worn or dirty pinch rollers with new ones.
