- 2.26 -
Plotting an Image from source data
Starting the plotting operation
The following describes the mode selection for data reception from the computer and LCD
display during plotting.
For various function settings necessary for plotting, refer to “CHP4 Setting Function”.
• When in use of a roll media, make sure the back side of roll media is not
loosened before executing plotting. The loosened media will cause the
inferior image quality.

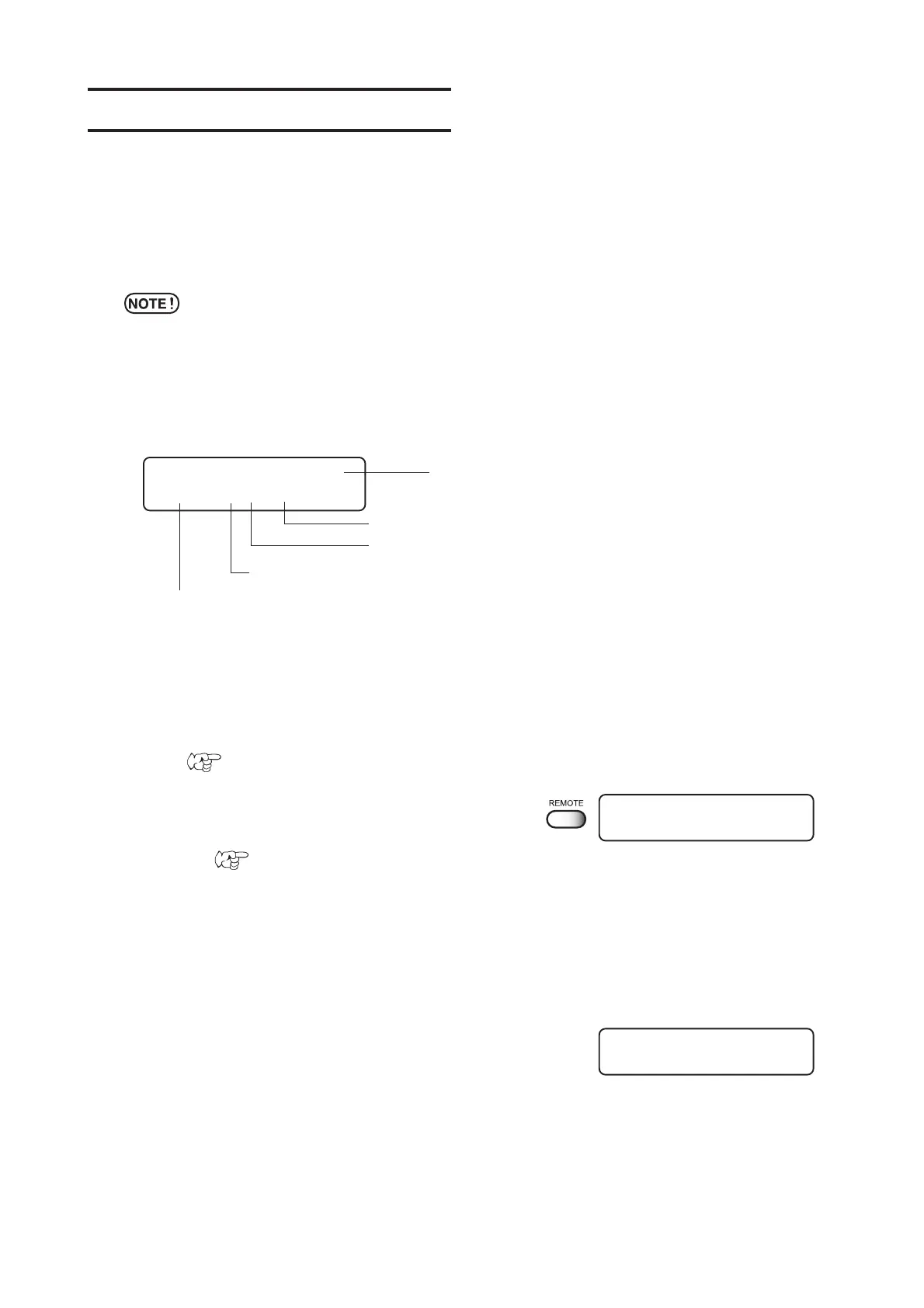

When plotting is started, the LCD displays the following information.
STEPS:
1. Check the heater temperature.
Make sure that the CONSTANT indicator on the heater panel
rights. page .2.20
2. Press the [REMOTE] key.
The type of the currently selected plotting condition can be
confirmed.
page 4.4
3. Transmit data from the computer.
The plotting conditions that have been set for the data are
displayed.
For the method of data transmission, see the manual for the
output software.
4. During the plotting.
During the plotting operation, the length of the media plotted
on is displayed.
∗ REMOTE ∗
TYPE. 1 0. 0 m
∗ REMOTE ∗ 3 6 0 x 3 6 0
S T D / 4 / U / 0. 5 0 m
∗ REMOTE ∗ 3 6 0 x 3 6 0
S T D / 4 / U / 0. 5 0 m
Resolution: 360/540/720/1440 DPI
Passes : 1~32 pass
QUALITY STD : STANDARD, FINE : HIGHQUALITY, FAST : HIGHSPEED
HOST : When plot setting is made on the computer
Length of media that has been plotted on
Dividing method : U : Unidirectional, B : Bidirectional
