2. Daily Maintenance
13
4

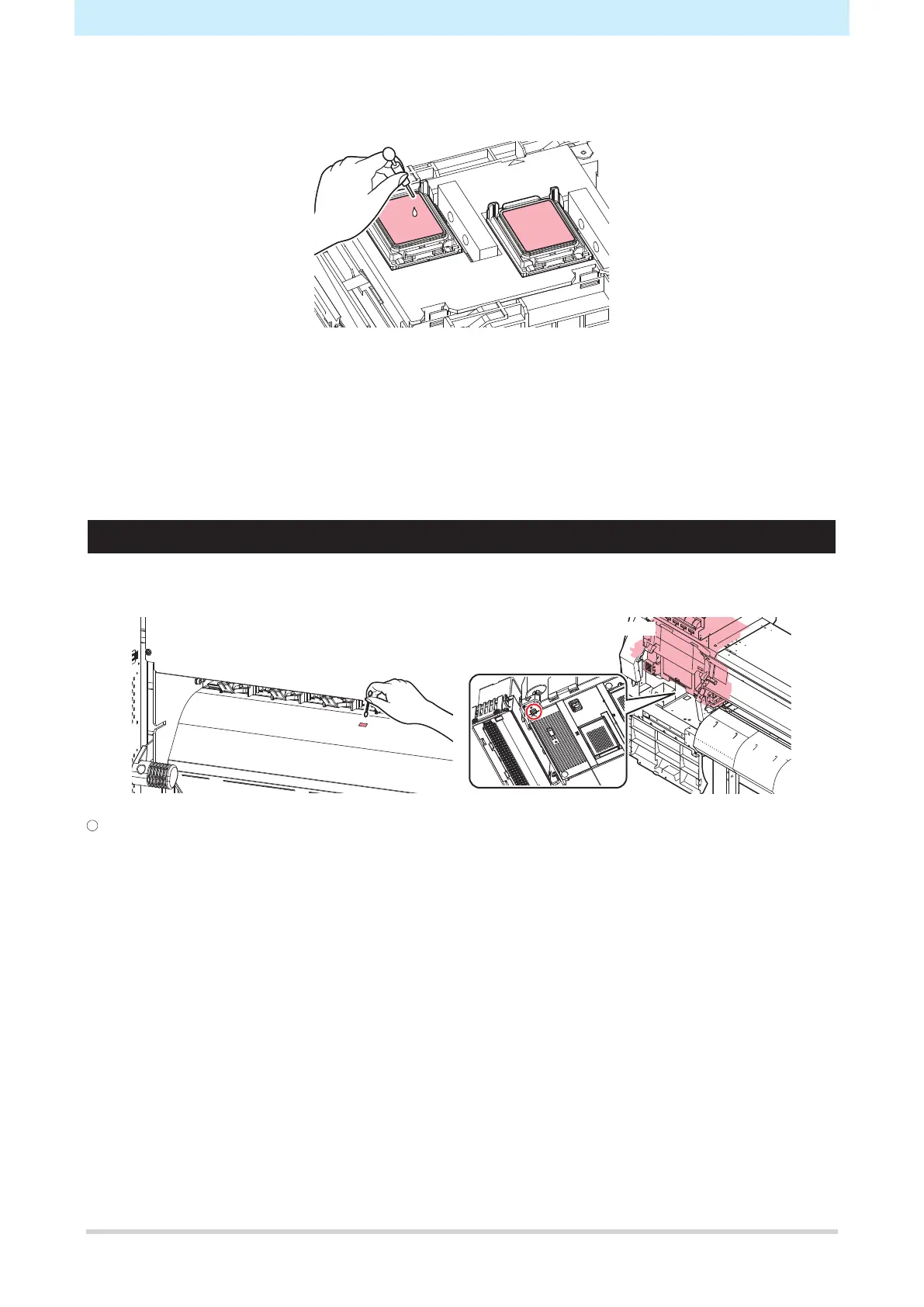

Fill the cap with washing liquid.
• Use a syringe to draw up some washing liquid and fill until close to overflowing from the cap.
5
Press the [ENTER] key.
• The pump tube (ink discharge channel below the cap) is washed. “Please wait” appears on the
display.
• Pump tube washing takes approximately one minute.
6
Close the front cover, then press the [ENTER] key.
Media Sensor Cleaning
Media sensors are located on the rear cover and carriage underside. The media cannot be detected
correctly if dust or debris accumulates on the sensors. Remove any debris using cotton swabs or a soft cloth.
Rear of product Carriage underside
l
Cleaning the carriage underside sensor
1
In LOCAL mode, select [MENU] > [Maintenance], then press the [ENTER] key.
• The Maintenance menu is displayed.
2
Select [Station] > [Carriage Out] > [Move To Maint. Space], then press the [ENTER] key.
• The carriage moves to the maintenance space.
To Next Page
