Minarik MM20000A Series - Figure 2. MM21211 A Drive Dimensions

3
8.00 [203] 5.00 [127]
1.79 [45]
2.50
[64]
2.50
[64]
2.75 [70]
6.00 [152]
2.50
[64]
1.72
[44]
3.46 [88]

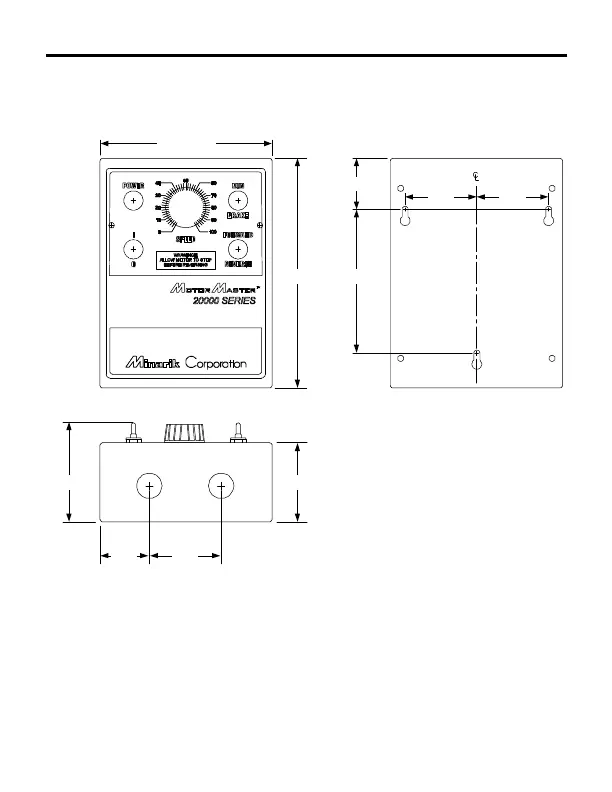

Figure 2. MM21211A Drive Dimensions
ALL DIMENSIONS IN INCHES [MILLIMETERS]
TWO 0.88 [22] CONDUIT HOLES
ON BOTTOM SIDE
THREE KEYHOLES FOR #10
SCREW ON BACK SIDE
FOR MOUNTING
Dimensions
