12 Installation

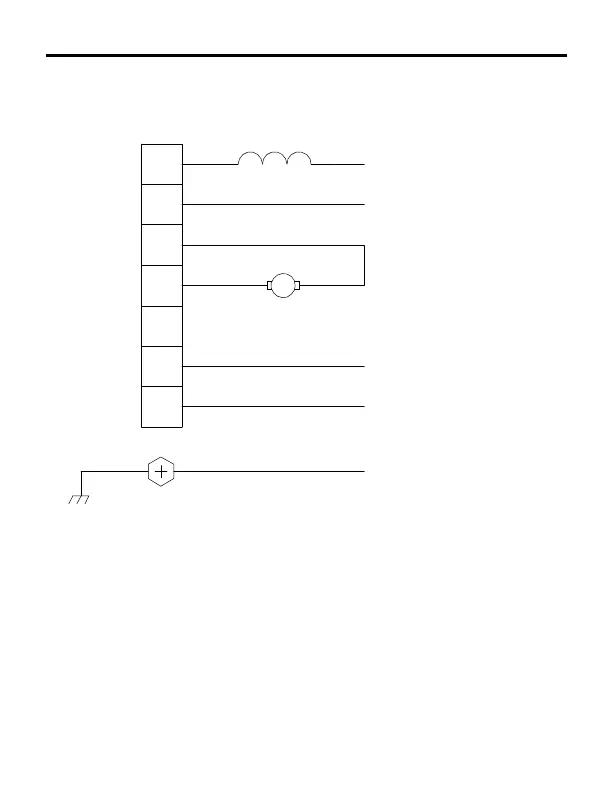

Figure 3. MM21111A and MM21211A Connections
1
2
3
4
5
6
7
FIELD OUTPUT CONNECTIONS
+
90 VDC MOTOR
115 VAC
INPUT
F1
F2
A2
A1
NOT USED
L1
L2
EARTH GROUND
(GREEN SCREW)
+
TB501
NOTE: Do not connect
field outputs if using a
permanent-magnet motor
HOT
NEUTRAL
