33
RUN/JOG switch
Using a RUN/JOG switch is recommended in applications where
quick stopping is not needed and frequent jogging is required.
Use a single pole, two position switch for the RUN/JOG switch,
and a single pole, normally closed, momentary operated
pushbutton for the JOG pushbutton as shown in Figure 14. When
the RUN/JOG switch is set to JOG, the motor decelerates to zero
speed. Press the JOG pushbutton to jog the motor. Return the
RUN/JOG switch to RUN for normal operation.
JOGRUN
JOG
PUSH
BUTTON
10K
Ohm
S1
S2
S3

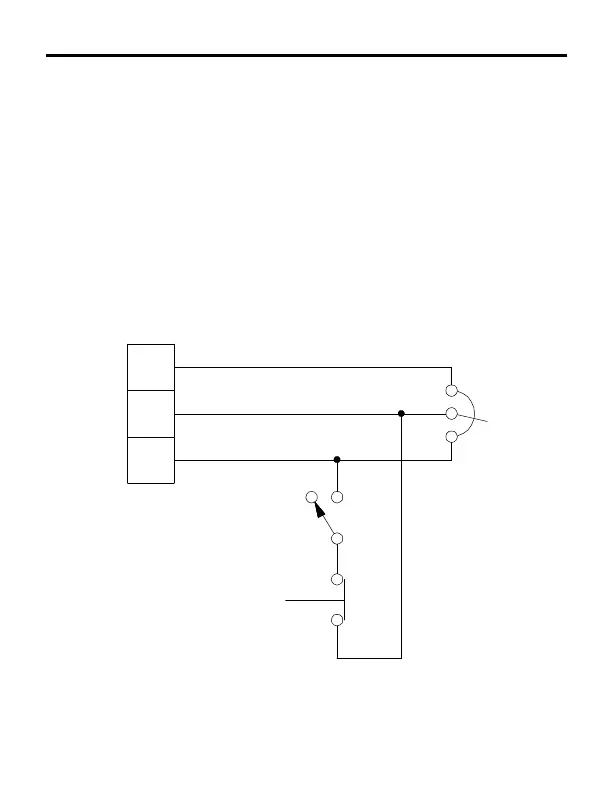

Figure 14. RUN/JOG Switch Connection to Speed Adjust
Potentiometer
Application Notes
