29

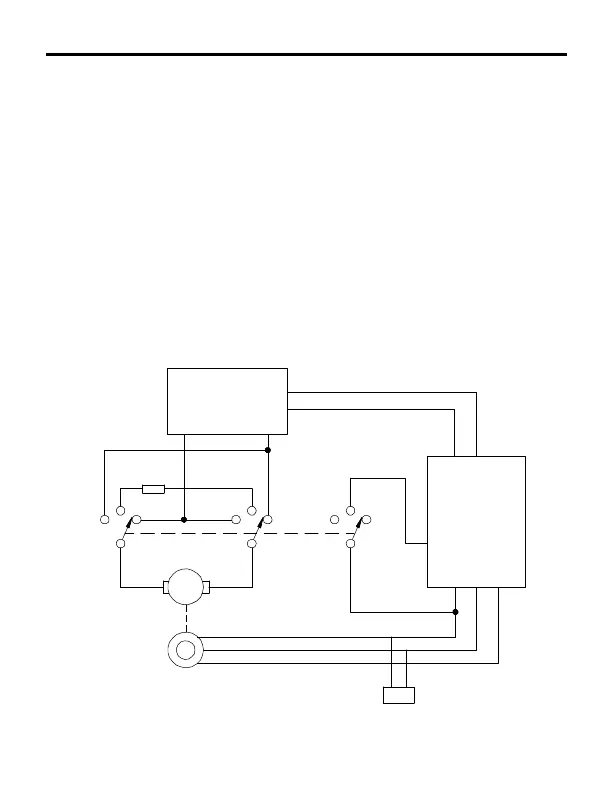

Figure 10. Reversing with a DLC600
S3
DLC 600
Inhibit Leads
C IN +
Common
Signal
+5 VDC or +12 VDC
Optical
Encoder
BRAKE
REVFWDFWD
BRAKE
REVREV
BRAKE
FWD
Dynamic
Brake
Resistor
A1 A2
S1
MM21000
SERIES DRIVE
MOTOR
S2
S1 S2
Magnetic
Pickup
Reversing with a DLC600
A DIGI-LOK controller, model DLC600 can be used in a
reversing application. The DIGI-LOK must be inhibited while
braking. Without the inhibit feature, the DIGI-LOK will continue
to regulate. This will cause oversoot when the DIGI-LOK is
switched back to the drive. Figure 10 shows the connection of
the reversing circuit to an MM21000 series drive and a DLC600.
Note: Only one DLC option (Optical Encoder or Magnetic
Pickup) may be used at a time.
Application Notes
