MINATO 1866 - Connection with Data Terminal Equipment

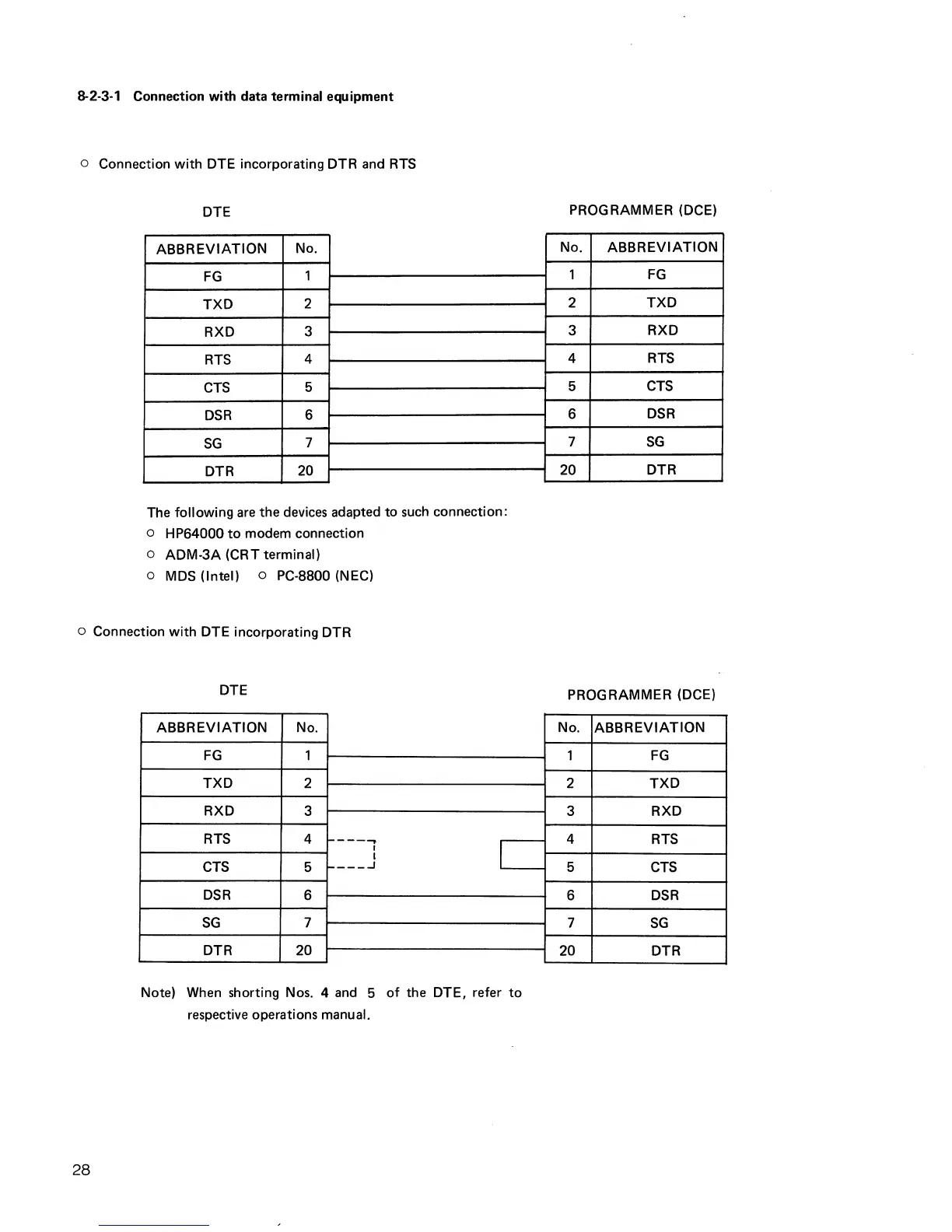

8-2-3-1 Connection with data terminal equipment
o Connection
with DTE incorporating DTR and RTS
DTE
ABBREVIATION
No.
FG
1
TXD
2
RXD 3
RTS
4
CTS
5
DSR 6
SG
7
DTR 20
The following are the devices adapted to such connection:
o HP64000
to modem connection
o
ADM-3A (CRT terminal)
o MDS (Intel)
0 PC-8800 (NEC)
o Connection
with DTE incorporating DTR
28
DTE
ABBREVIATION No.
FG
1
TXD
2
RXD
3
RTS
4
---~
I
L
I
CTS
5
t----.J
DSR
6
SG
7
DTR
20
Note)
When shorting Nos. 4 and 5 of the DTE, refer to
respective operations manual.
PROGRAMMER (DCE)
No.
ABBREVIATION
1
FG
2 TXD
3 RXD
4
RTS
5 CTS
6
DSR
7
SG
20
DTR
PROGRAMMER (DCE)
No.
ABBREVIATION
1 FG
2
TXD
3
RXD
4
RTS
5
CTS
6
DSR
7
SG
20
DTR
