MINATO 1866 - Rear Panel; Bottom Switches

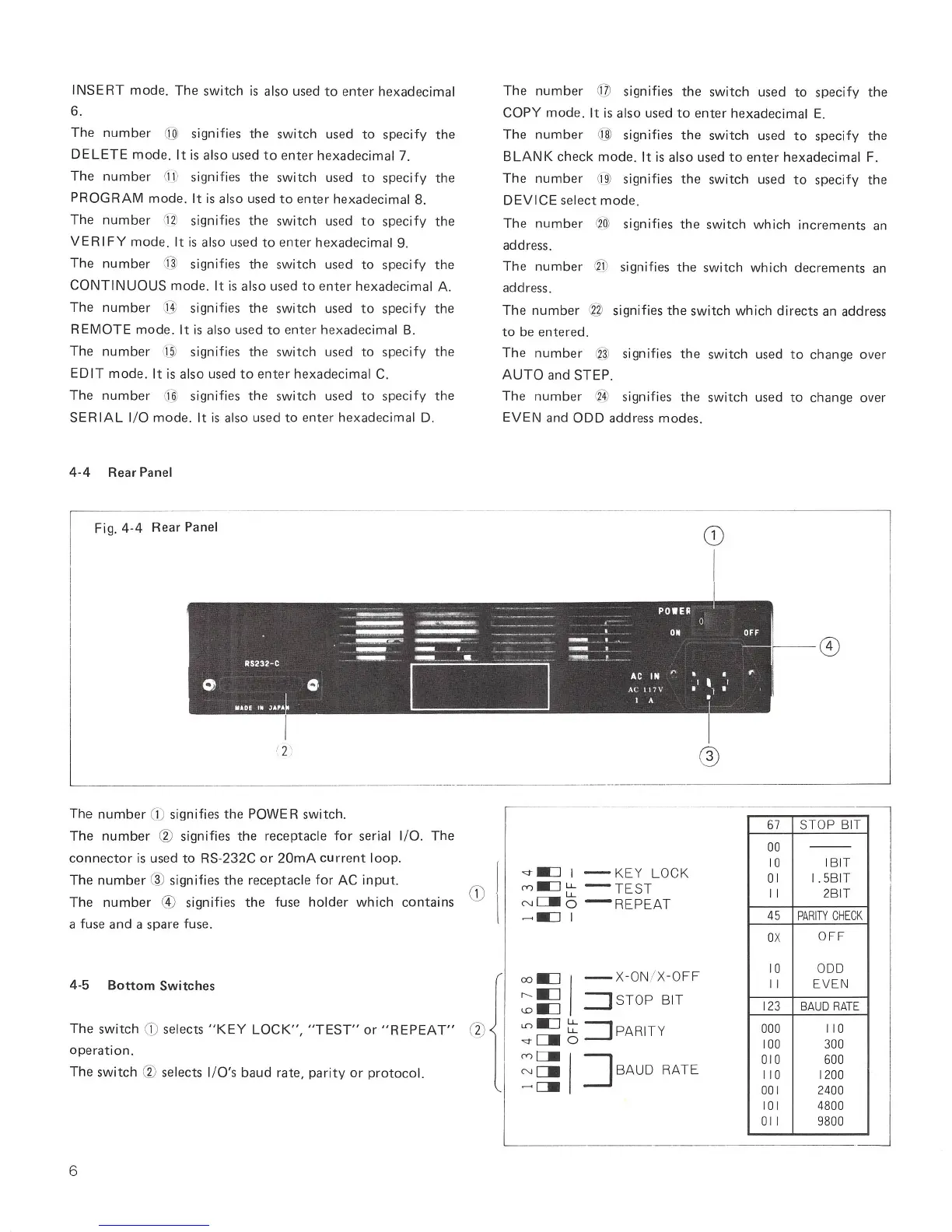

INSERT mode. The switch is also used to enter hexadecimal
6.
Th e number @ signifies the switch used to specify the
DELETE mode. It is also used to enter hexadecimal 7.
Th e number 6Jl signifies the switch used to spec ify the
PROGRAM mode. It is also used to enter hexadecimal 8.
The number (i?) signifies the switch used to specify the
VERIFY mode. It is al so used to enter hexadecimal 9.
The number @ signifies the switch used to specify the
CONTINUOUS mode. It is also used to enter hexadecimal A.
The number (j]; sign ifies the switch used to specify the
REMOTE mode. It is al so used to enter hexadecimal B.
Th e number @ signifies the switch used to specify the
EDIT mode . It is al so used to enter hexadecimal C.
Th e number @ signifies the switch used to specify the
SERIAL I /O mode. It is also used to enter hexadecimal D.
4-4 Rear Panel
The number @ signifies the switch used to specify the
COpy mode. It is also used to enter hexadecimal E.
The number @ signifies the switch used to specify the
B LAN K check mode. It is also used to enter hexadeci mal F.
The number Ci]l signifies the sw itch used to spec ify the
DEVICE select mode.
The number (?~ signifies the switc h which increments an
address.
The number ® signifies the switch which decrements an
address.
The number ® signifies the switch which directs an address
to be entered.
The number ® signifies the sw itch used to change over
AUTO and STEP.
The number ® signifies the swit ch used to ch ange over
EVEN and ODD address modes.
,-- ------------------------ -_. -- ------------- - -- ----- ---,
Fig. 4-4 Rear Panel
L- ____ _ ____ ________ .__ ____ __________ __ _ __ _
The number CD signifies the POWER switch.
The number @ signifies the receptacle for serial I/O. The
connector is used to RS-232C or 20mA current loop.
The number ® signifies the receptac le for AC input.
Th e number ® signifies the fuse holder which contains
a fuse and a spare fuse.
4-5 Bottom Switches
The switch CD sel ects "KEY LOCK", "TEST" or "REPEAT" (2)
operation .
The switch @ selects I/O's baud rate, parity or protocol.
",".:::J I - KE Y LOCK
(Y).:::J t::: - TEST
Nc:::.I 0 -REPEAT
--=:1 I
co.:] I -X-ON / X-OFF
:;:s ::::J STOP BIT
en.:] t::: =:J PARITY
","C=-o
:§51 ~BAUD RATE
CD
67 STOP BIT
00
---
10 IBIT
01 1.5BIT
II 2BIT
45
PARITY CHECK
OX
OFF
10
ODD
II EVEN
123 BAUD RATE
000
110
100 300
010
600
110 1200
001 2400
101 4800
011 9800
~_~ JJ
